ZERMA GSH-800/1600-9-3 Heavy Duty Granulator

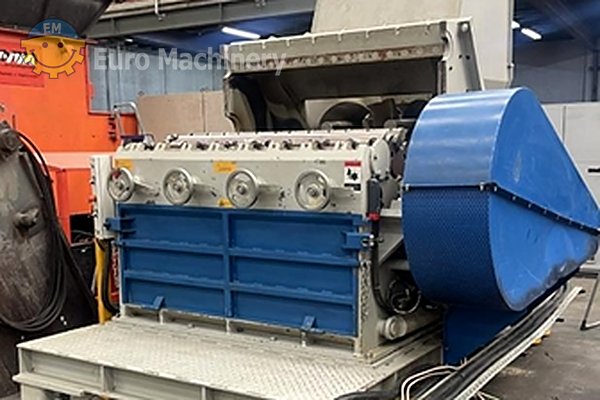

Professional-grade heavy duty granulator featuring a 9-blade rotor with 800mm diameter and dual auger force feeder system. Equipped with 200kW motor and hydraulic lifting system for efficient processing of PE films, rubber, and other materials with increased throughput and reduced material bounce.
Key Specifications
- Model: GSH-800/1600-9-3
- Type: 9 Blade Heavy Rotor with Dual Auger Force Feeder
- Rotor Diameter: 800 mm
- Screen Size: 14 mm hole
- Screen Type: Wear resistant with optional hole sizes
Complete Specifications
| Brand | ZERMA |
| Model | GSH-800/1600-9-3 |
| Type | 9 Blade Heavy Rotor with Dual Auger Force Feeder |
| Rotor Diameter | 800 mm |
| Rotor Speed | 421 rpm |

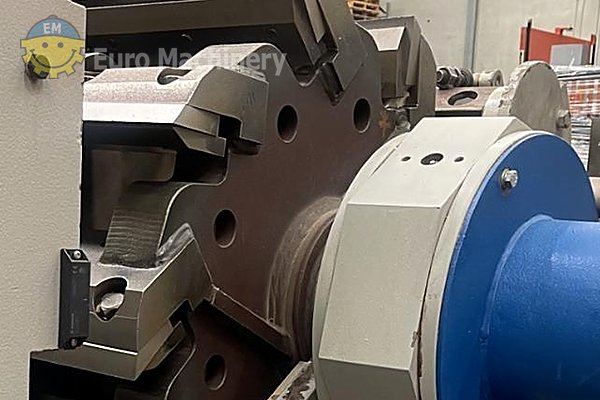

| Rotor Construction | Semi-closed rotor in welded steel with remote mounted bearing housings |

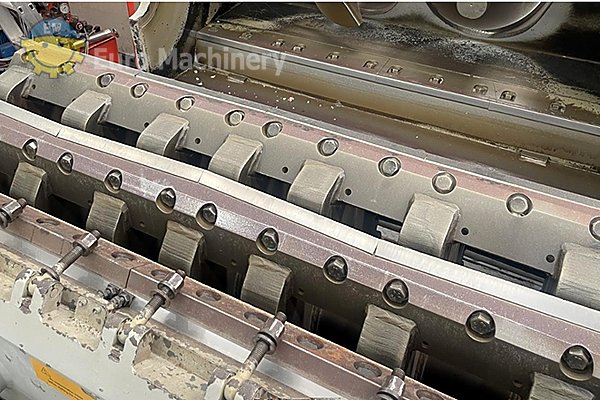

| Rotary Blades | 9 rows x 4 pieces |
| Stationary Blades | 2 rows x 1 piece |
| Block Blades | 1 row x 2 pieces |
| Blade Configuration | V-form angled blades creating X-form cutting action |
| Motor Power | 200 kW |

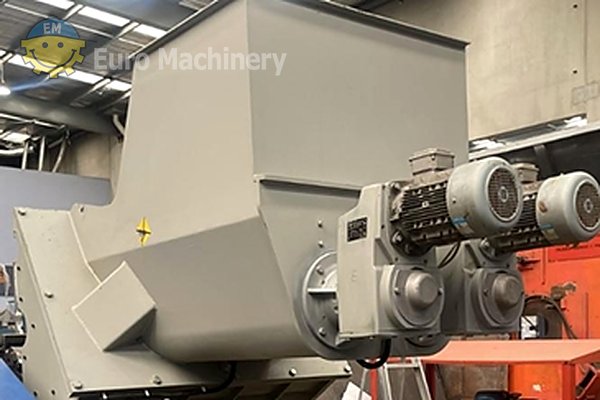

| Force Feeder Motors | 2 x 5.5 kW auger type geared drives |
| Screen Size | 14 mm hole |
| Screen Type | Wear resistant with optional hole sizes |
| Hopper Type | Conveyor feed design with curtains and hydraulic lifting system |
| Cutting Chamber | Centrally hinged heavy-duty fabricated steel construction |
| Pulley System | Heavy-duty vee belts and pulleys with flywheel rotor pulley |
| Hydraulic System | Integrated lifting system for hopper and upper housing access |
| Material Compatibility | PE films and extracts, Rubber, and other materials |
| Maintenance Features | Easy rotor access, hydraulic screen removal, blade replacement capability |
Interested in this equipment?
Contact us for pricing, availability, and additional information.How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Professional-grade heavy duty granulator featuring a 9-blade rotor with 800mm diameter and dual auger force feeder system. Equipped with 200kW motor and hydraulic lifting system for efficient processing of PE films, rubber, and other materials with increased throughput and reduced material bounce.
