Ref: 62162

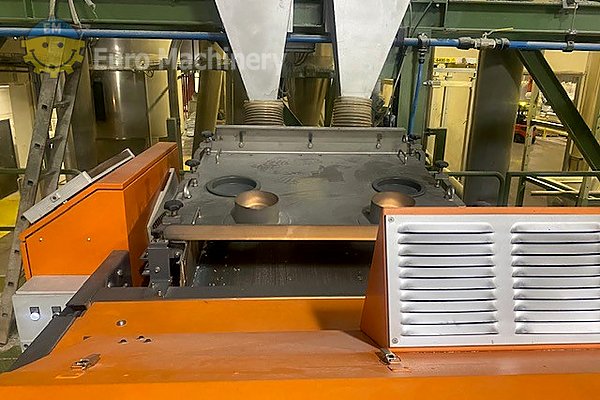

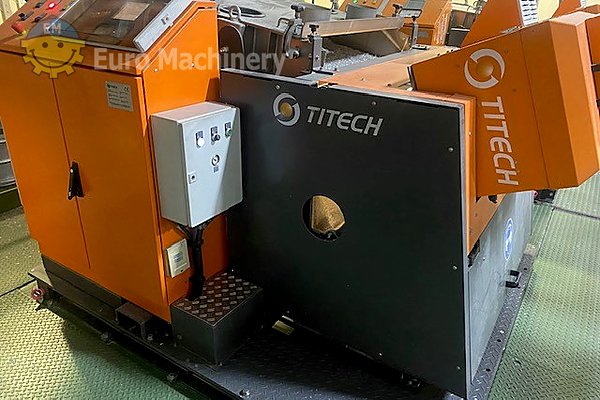

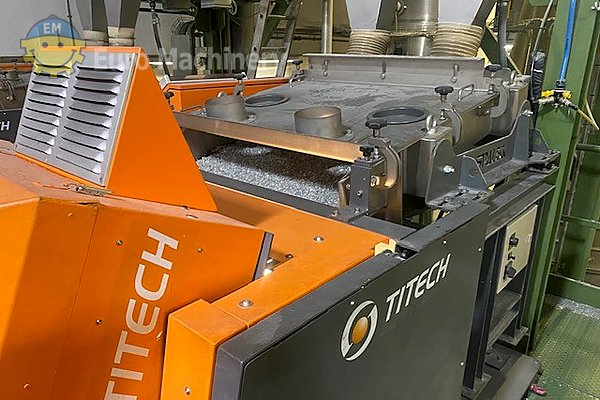

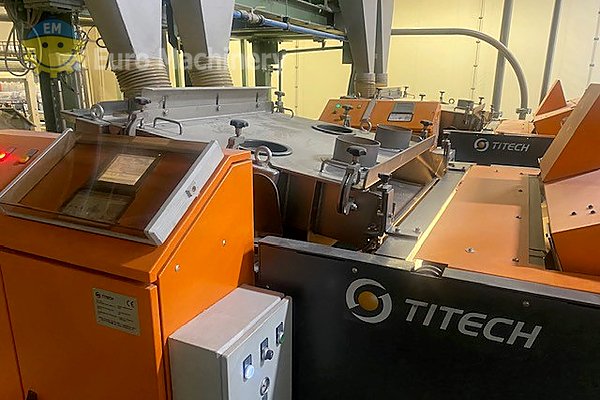

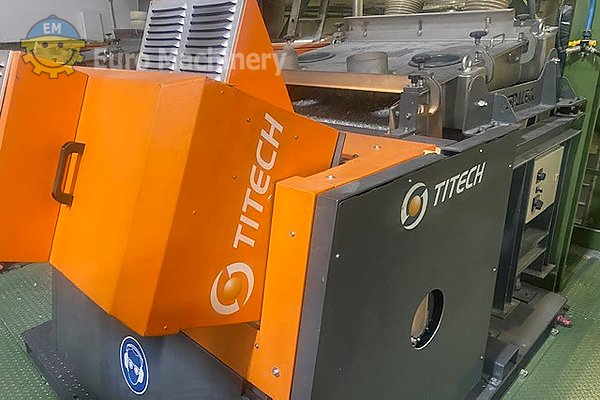

TOMRA Titech AUTOSORT NIR1-VIS U-1000 C-L Optical Sorter

Brand
Type of equipmentOPTICAL SORTER

Find similar machines

TOMRA Titech AUTOSORT NIR1-VIS U-1000 C-L Optical Sorter

Share this machine

High-performance optical sorting machine combining Near-Infrared and Visible Light sensors for precise polymer and color separation. Features patented FLYING BEAM™ technology with 1000mm working width and energy consumption reduction up to 70%.

Key Specifications

  • Belt Speed: Up to 6 m/s
  • Sensor Technology: Near-Infrared (NIR1) and Visible Light (VIS)
  • Working Width: 1000 mm (1 meter)
  • Energy Reduction: Up to 70%
  • Valve Spacing Options: 10.5mm, 16.5mm, 22.5mm, 30mm

Complete Specifications

Sensor Technology Near-Infrared (NIR1) and Visible Light (VIS)
Working Width 1000 mm (1 meter)
Scanner Technology FLYING BEAM™ patented system
Energy Reduction Up to 70%
Belt Speed Up to 6 m/s
Valve Spacing Options 10.5mm, 16.5mm, 22.5mm, 30mm
Valve Count 64 or 248+ depending on module
Operating Temperature Range 5°C to 50°C
Air Handling System Closed-Loop fan-driven (C-L configuration)
Sorting Capabilities Polymer identification, color detection, deinking paper, PET separation, RDF generation
Material Compatibility PET, PE, PP, PS, PVC, EPS, ABS
Total Length 5050 mm (approximately 5 m)
Weight 3550 kg (approximately 3.5 tonnes)

Interested in this equipment?

Contact us for pricing, availability, and additional information.
The TOMRA Titech AUTOSORT (NIR1-VIS) (U-1000) (C-L) is a sensor-based optical sorting machine specifically designed for the recycling industry. This machine combines Near-Infrared (NIR1) technology for polymer material identification (PET, PE, PP, PS, PVC, EPS, ABS) with Visible Light (VIS) for color detection, enabling high-purity sorting and material separation. The U-1000 configuration features a 1000mm (1-meter) working width optimized for precise material separation. The C-L design incorporates a compact, closed-loop fan-driven air-handling system for optimal airflow efficiency and reduced maintenance. The machine is equipped with the patented FLYING BEAM™ scanner technology, an efficient detection system that reduces energy consumption by up to 70% while maintaining fast, accurate sorting performance. The ejection system utilizes high-speed, precise ejection modules with configurable valve spacing (10.5mm, 16.5mm, 22.5mm, or 30mm) and typically includes 64 or 248+ valves depending on the specific module configuration. The machine achieves high-capacity sorting with belt speeds up to 6 m/s and operates reliably across a wide temperature range of 5°C to 50°C. This machine is ideal for plastic recycling, waste-to-energy, and paper recycling facilities requiring high purity and throughput. It excels at producing pure PET/PE fractions, removing contaminates, deinking paper, separating PET by color, and generating RDF (Refuse Derived Fuel). The flexible design allows easy adaptation for different sorting tasks and materials.

High-performance optical sorting machine combining Near-Infrared and Visible Light sensors for precise polymer and color separation. Features patented FLYING BEAM™ technology with 1000mm working width and energy consumption reduction up to 70%.

Key Specifications

  • Belt Speed: Up to 6 m/s
  • Sensor Technology: Near-Infrared (NIR1) and Visible Light (VIS)
  • Working Width: 1000 mm (1 meter)
  • Energy Reduction: Up to 70%
  • Valve Spacing Options: 10.5mm, 16.5mm, 22.5mm, 30mm

Complete Specifications

Sensor Technology Near-Infrared (NIR1) and Visible Light (VIS)
Working Width 1000 mm (1 meter)
Scanner Technology FLYING BEAM™ patented system
Energy Reduction Up to 70%
Belt Speed Up to 6 m/s
Valve Spacing Options 10.5mm, 16.5mm, 22.5mm, 30mm
Valve Count 64 or 248+ depending on module
Operating Temperature Range 5°C to 50°C
Air Handling System Closed-Loop fan-driven (C-L configuration)
Sorting Capabilities Polymer identification, color detection, deinking paper, PET separation, RDF generation
Material Compatibility PET, PE, PP, PS, PVC, EPS, ABS
Total Length 5050 mm (approximately 5 m)
Weight 3550 kg (approximately 3.5 tonnes)

Interested in this equipment?

Contact us for pricing, availability, and additional information.
The TOMRA Titech AUTOSORT (NIR1-VIS) (U-1000) (C-L) is a sensor-based optical sorting machine specifically designed for the recycling industry. This machine combines Near-Infrared (NIR1) technology for polymer material identification (PET, PE, PP, PS, PVC, EPS, ABS) with Visible Light (VIS) for color detection, enabling high-purity sorting and material separation. The U-1000 configuration features a 1000mm (1-meter) working width optimized for precise material separation. The C-L design incorporates a compact, closed-loop fan-driven air-handling system for optimal airflow efficiency and reduced maintenance. The machine is equipped with the patented FLYING BEAM™ scanner technology, an efficient detection system that reduces energy consumption by up to 70% while maintaining fast, accurate sorting performance. The ejection system utilizes high-speed, precise ejection modules with configurable valve spacing (10.5mm, 16.5mm, 22.5mm, or 30mm) and typically includes 64 or 248+ valves depending on the specific module configuration. The machine achieves high-capacity sorting with belt speeds up to 6 m/s and operates reliably across a wide temperature range of 5°C to 50°C. This machine is ideal for plastic recycling, waste-to-energy, and paper recycling facilities requiring high purity and throughput. It excels at producing pure PET/PE fractions, removing contaminates, deinking paper, separating PET by color, and generating RDF (Refuse Derived Fuel). The flexible design allows easy adaptation for different sorting tasks and materials.
  • I would like to know the price of this machine
We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.
  • Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
