REIFENHAUSSER RH 801 3 Layers Cast Film Extrusion Line
Professional 3-layer cast polypropylene film extrusion line with triple extruders and flat die technology. Capable of producing films from 25 to 130 microns thickness at up to 900 kg/hour output. Includes revolver winder and complete accessory package for industrial film production.
Key Specifications
- Model: RH 801
- Machine Type: 3 Layers Cast Film Extrusion Line
- Maximum Output: 900 kg/hour
- Output Reference Width: 3,000 mm
- Output Reference Thickness: 75 microns
Complete Specifications
| Manufacturer | REIFENHAUSSER |
| Model | RH 801 |
| Machine Type | 3 Layers Cast Film Extrusion Line |
| Material Processed | Cast Polypropylene Films (CPP) |
| Number Of Extruders | 3 |
| Extruder 1 Diameter | 90 mm |
| Extruder 2 Diameter | 160 mm |
| Extruder 3 Diameter | 90 mm |
| Die Type | Flat die CLOEREN |
| Thickness Range Min | 25 microns |
| Thickness Range Max | 130 microns |
| Maximum Output | 900 kg/hour |
| Output Reference Width | 3,000 mm |
| Output Reference Thickness | 75 microns |

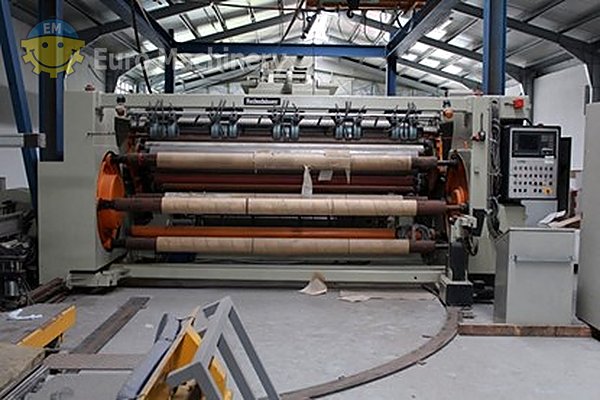

| Winder Type | Revolver type |
| Final Roll Diameter | 800 mm |
| Core Diameter Options | 76 mm and 152 mm |
| Layer Distribution | B-A-C |
| Accessories Included | Direct trim feeder with conical screw, self-adjusting hopper, 3 hydraulic filter changing systems, 3 connection units, extruder platforms, feed block |
