TECNO COATING 2000-NG
| Brand | Tecno Coating |
|---|---|
| Type of Film | Stretch film |
| Layers | 3 |
| Material width | 2000 mm |
TECNO COATING 2000-S
| Brand | Tecno Coating |
|---|---|
| Type of Film | Stretch film |
| Layers | 3 |
| Material width | 2000 mm |
Blackclawson 5 Layer Cast Stretch Film Line

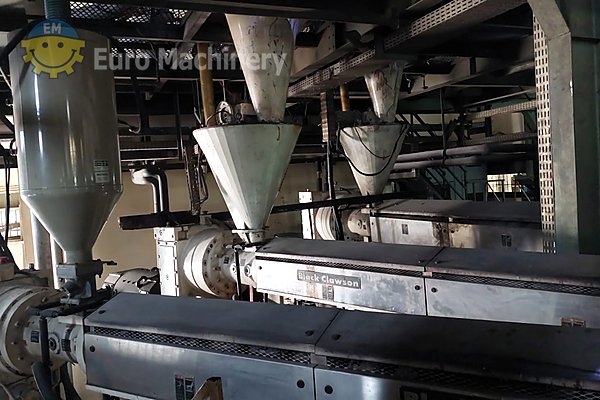

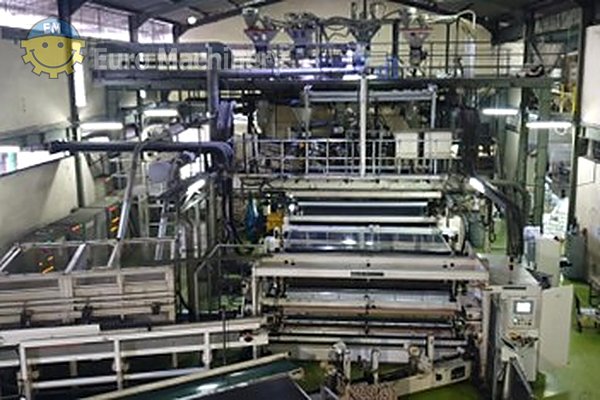

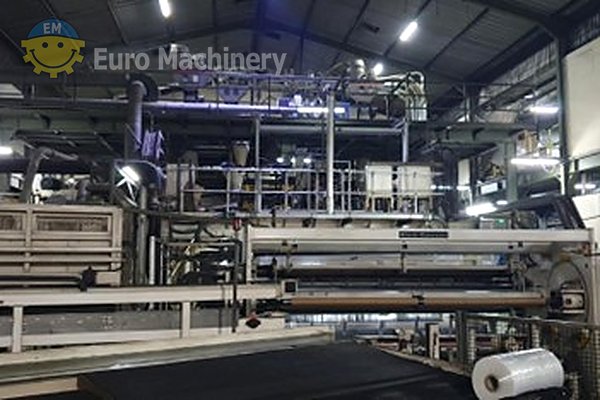

Professional 5-layer cast film extrusion line designed for LLDPE stretch film production with high output capacity up to 2600 kg/hour. Features four extruders, Cloeren Epoch III flat die, and fully automatic winding system with integrated quality control accessories.
Key Specifications
- Maximum Output: 2600 kg/hour
- Extruder 1 Diameter: 88.9 mm
- Extruder 2 Diameter: 114.3 mm
- Extruder 3 Diameter: 152.4 mm
- Extruder 4 Diameter: 88.9 mm
Complete Specifications
| Material Type | Stretch film LLDPE |
| Number Of Extruders | 4 |
| Extruder 1 Diameter | 88.9 mm |
| Extruder 1 Motor Power | 93.2 kW |
| Extruder 2 Diameter | 114.3 mm |
| Extruder 2 Motor Power | 186.4 kW |
| Extruder 3 Diameter | 152.4 mm |
| Extruder 3 Motor Power | 372.8 kW |
| Extruder 4 Diameter | 88.9 mm |
| Extruder 4 Motor Power | 93.2 kW |
| Die Type | Flat die Cloeren Epoch III |
| Die Lips Width | 3750 mm |
| Lip Gap Adjustment Range | 12-60 microns |
| Maximum Output | 2600 kg/hour |

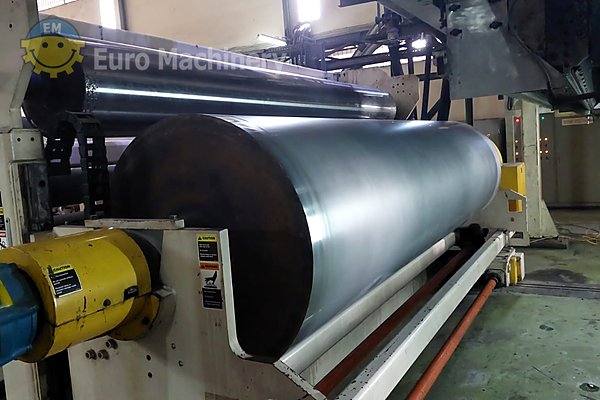

| Primary Chill Roller Width | 3785 mm |
| Primary Chill Roller Diameter | 1016 mm |
| Secondary Chill Roller Width | 3785 mm |
| Secondary Chill Roller Diameter | 457 mm |
| Winder Type | Fully automatic roll change |
| Maximum Line Speed | 600 m/min |
| Maximum Reel Diameter | 355 mm |
| Winding Width | 6 x 500 mm |

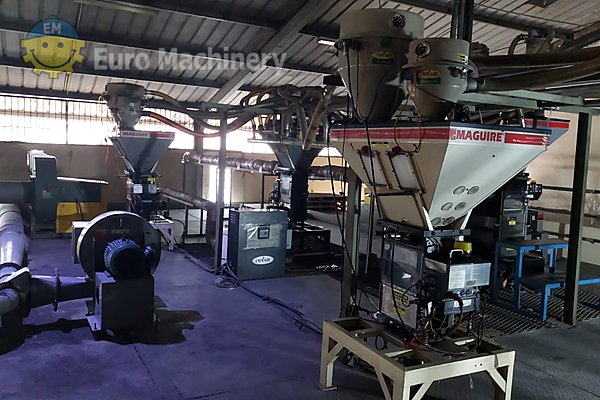

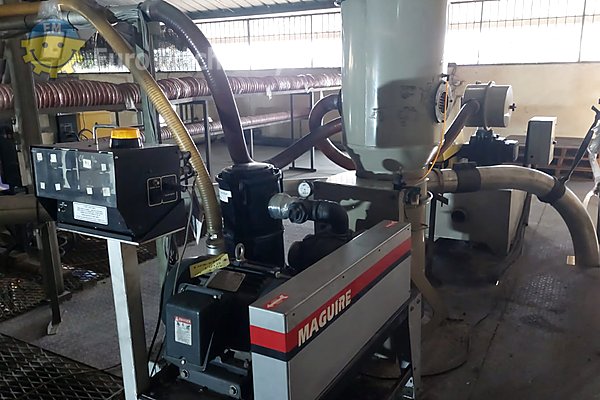

| Accessories | Automatic longitudinal film cutting unit, edge trim cutting system with razor blade, edge trim recycling crusher (Rapid), manual web guide, screen changer (Xaloy), gravimetric weight control system (Macguire), components blender (Macguire), dosing units (Macguire), thickness control (NDC), air shafts (Goldenrod) |
Interested in this equipment?
Contact us for pricing, availability, and additional information.How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Professional 5-layer cast film extrusion line designed for LLDPE stretch film production with high output capacity up to 2600 kg/hour. Features four extruders, Cloeren Epoch III flat die, and fully automatic winding system with integrated quality control accessories.
Key Specifications
- Maximum Output: 2600 kg/hour
- Extruder 1 Diameter: 88.9 mm
- Extruder 2 Diameter: 114.3 mm
- Extruder 3 Diameter: 152.4 mm
- Extruder 4 Diameter: 88.9 mm
Complete Specifications
| Material Type | Stretch film LLDPE |
| Number Of Extruders | 4 |
| Extruder 1 Diameter | 88.9 mm |
| Extruder 1 Motor Power | 93.2 kW |
| Extruder 2 Diameter | 114.3 mm |
| Extruder 2 Motor Power | 186.4 kW |
| Extruder 3 Diameter | 152.4 mm |
| Extruder 3 Motor Power | 372.8 kW |
| Extruder 4 Diameter | 88.9 mm |
| Extruder 4 Motor Power | 93.2 kW |
| Die Type | Flat die Cloeren Epoch III |
| Die Lips Width | 3750 mm |
| Lip Gap Adjustment Range | 12-60 microns |
| Maximum Output | 2600 kg/hour |
| Primary Chill Roller Width | 3785 mm |
| Primary Chill Roller Diameter | 1016 mm |
| Secondary Chill Roller Width | 3785 mm |
| Secondary Chill Roller Diameter | 457 mm |
| Winder Type | Fully automatic roll change |
| Maximum Line Speed | 600 m/min |
| Maximum Reel Diameter | 355 mm |
| Winding Width | 6 x 500 mm |
| Accessories | Automatic longitudinal film cutting unit, edge trim cutting system with razor blade, edge trim recycling crusher (Rapid), manual web guide, screen changer (Xaloy), gravimetric weight control system (Macguire), components blender (Macguire), dosing units (Macguire), thickness control (NDC), air shafts (Goldenrod) |
