Ref: 62161

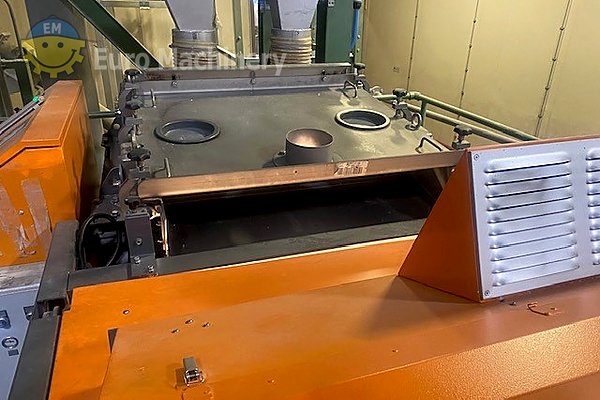

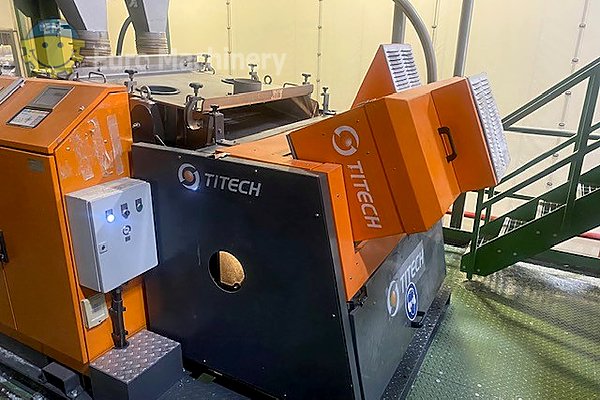

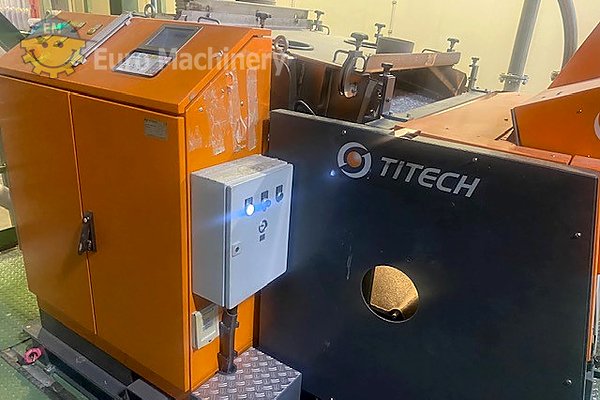

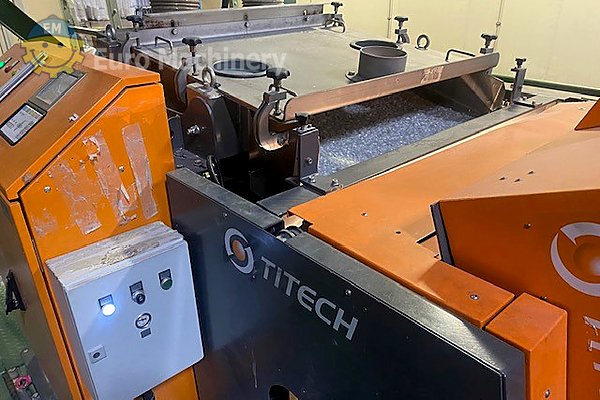

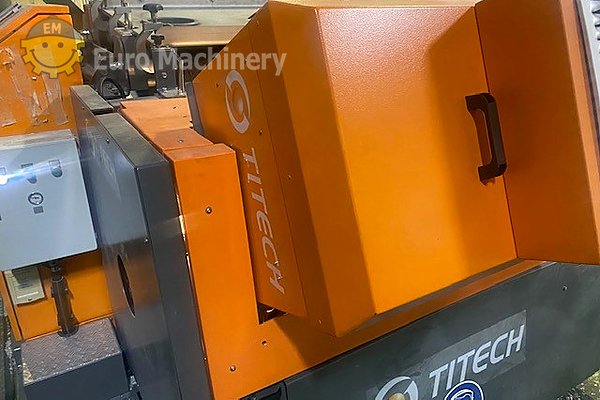

TOMRA Titech AUTOSORT NIR1-VIS U-1000 C-L Optical Sorter

See more machine specifications down below

Weight3550 kg
Dimensions5050 × 1000 cm
Brand
Request price and more information

Find similar machines

66147 Weima wmc 1500
66147 WEIMA WMC 1500 single-shaft shredder

WEIMA wmc 1500

SKU: 66147
Brand
Rotor1500 mm x 368 mm
Output800 kg/h
COEMTER TER-ROLL - Used Roll Bag Machine
%%keyword%%

COEMTER TER-ROLL

SKU: 1103
Brand
Type of BagsBottom seal bags
Max sealing width900 mm
Max draw length1300 mm
Sold out
%%keyword%%

Macchi 45/45/65 – SOLD

SKU: 3391
Brand
ECOLINE - Used Washing-Recycling Line
ECOLINE - Used Washing-Recycling Line

ECOLINE – Used Washing-Recycling Line

SKU: 6711
Brand
Output300 kg/h

    TOMRA Titech AUTOSORT NIR1-VIS U-1000 C-L Optical Sorter

    Request price and more information

    Share this machine

    High-performance optical sorting machine combining Near-Infrared and Visible Light sensors for precise polymer and color separation. Features patented FLYING BEAM™ technology with up to 70% energy reduction and 1000mm working width for industrial recycling applications.

    Key Specifications

    • Belt Speed: Up to 6 m/s
    • Sensor Technology: Near-Infrared (NIR1) and Visible Light (VIS)
    • Working Width: 1000 mm (1 meter)
    • Energy Reduction: Up to 70%
    • Valve Spacing Options: 10.5mm, 16.5mm, 22.5mm, 30mm

    Complete Specifications

    Sensor Technology Near-Infrared (NIR1) and Visible Light (VIS)
    Working Width 1000 mm (1 meter)
    Scanner Technology FLYING BEAM™ patented system
    Energy Reduction Up to 70%
    Air Handling System Closed-Loop fan-driven (C-L configuration)
    Valve Spacing Options 10.5mm, 16.5mm, 22.5mm, 30mm
    Valve Count 64 or 248+ depending on module
    Belt Speed Up to 6 m/s
    Operating Temperature Range 5°C to 50°C
    Polymer Identification PET, PE, PP, PS, PVC, EPS, ABS
    Sorting Applications Polymer identification, paper deinking, PET color separation, RDF generation
    Unit Length 5050 mm (approximately 5 m)
    Weight 3550 kg (approximately 3.5 tonnes)

    Interested in this equipment?

    Contact us for pricing, availability, and additional information.
    The TOMRA Titech AUTOSORT (NIR1-VIS) (U-1000) (C-L) is a sensor-based optical sorting machine specifically engineered for the recycling industry. This machine combines advanced Near-Infrared (NIR1) technology for polymer material identification (PET, PE, PP, PS, PVC, EPS, ABS) with Visible Light (VIS) sensors for precise color detection. The U-1000 designation indicates a 1000mm (1-meter) working width, enabling efficient material separation and sorting. Equipped with the proprietary FLYING BEAM™ scanner technology, this sorter delivers fast and accurate detection while significantly reducing energy consumption by up to 70%. The C-L configuration features a compact, closed-loop fan-driven air-handling system optimized for airflow efficiency and minimal maintenance requirements. The machine is capable of handling diverse sorting tasks including polymer identification, paper deinking, PET color separation, and Refuse Derived Fuel (RDF) generation. The ejection system utilizes high-speed, precision-engineered modules with configurable valve spacing (10.5mm, 16.5mm, 22.5mm, or 30mm) and 64 to 248+ valves depending on the specific module configuration. With belt speeds up to 6 m/s, this machine delivers high-capacity throughput suitable for demanding recycling operations. The unit operates reliably across a wide temperature range of 5°C to 50°C, making it adaptable to various facility environments. This optical sorter excels at producing high-purity material fractions while effectively removing contaminants. Its flexible design allows easy adaptation for different sorting applications and material types, making it ideal for plastic recycling, waste-to-energy, and paper recycling facilities requiring both high purity and throughput performance.

    High-performance optical sorting machine combining Near-Infrared and Visible Light sensors for precise polymer and color separation. Features patented FLYING BEAM™ technology with up to 70% energy reduction and 1000mm working width for industrial recycling applications.

    Key Specifications

    • Belt Speed: Up to 6 m/s
    • Sensor Technology: Near-Infrared (NIR1) and Visible Light (VIS)
    • Working Width: 1000 mm (1 meter)
    • Energy Reduction: Up to 70%
    • Valve Spacing Options: 10.5mm, 16.5mm, 22.5mm, 30mm

    Complete Specifications

    Sensor Technology Near-Infrared (NIR1) and Visible Light (VIS)
    Working Width 1000 mm (1 meter)
    Scanner Technology FLYING BEAM™ patented system
    Energy Reduction Up to 70%
    Air Handling System Closed-Loop fan-driven (C-L configuration)
    Valve Spacing Options 10.5mm, 16.5mm, 22.5mm, 30mm
    Valve Count 64 or 248+ depending on module
    Belt Speed Up to 6 m/s
    Operating Temperature Range 5°C to 50°C
    Polymer Identification PET, PE, PP, PS, PVC, EPS, ABS
    Sorting Applications Polymer identification, paper deinking, PET color separation, RDF generation
    Unit Length 5050 mm (approximately 5 m)
    Weight 3550 kg (approximately 3.5 tonnes)

    Interested in this equipment?

    Contact us for pricing, availability, and additional information.
    The TOMRA Titech AUTOSORT (NIR1-VIS) (U-1000) (C-L) is a sensor-based optical sorting machine specifically engineered for the recycling industry. This machine combines advanced Near-Infrared (NIR1) technology for polymer material identification (PET, PE, PP, PS, PVC, EPS, ABS) with Visible Light (VIS) sensors for precise color detection. The U-1000 designation indicates a 1000mm (1-meter) working width, enabling efficient material separation and sorting. Equipped with the proprietary FLYING BEAM™ scanner technology, this sorter delivers fast and accurate detection while significantly reducing energy consumption by up to 70%. The C-L configuration features a compact, closed-loop fan-driven air-handling system optimized for airflow efficiency and minimal maintenance requirements. The machine is capable of handling diverse sorting tasks including polymer identification, paper deinking, PET color separation, and Refuse Derived Fuel (RDF) generation. The ejection system utilizes high-speed, precision-engineered modules with configurable valve spacing (10.5mm, 16.5mm, 22.5mm, or 30mm) and 64 to 248+ valves depending on the specific module configuration. With belt speeds up to 6 m/s, this machine delivers high-capacity throughput suitable for demanding recycling operations. The unit operates reliably across a wide temperature range of 5°C to 50°C, making it adaptable to various facility environments. This optical sorter excels at producing high-purity material fractions while effectively removing contaminants. Its flexible design allows easy adaptation for different sorting applications and material types, making it ideal for plastic recycling, waste-to-energy, and paper recycling facilities requiring both high purity and throughput performance.
    • I would like to know the price of this machine
    We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.
    • Where is the machine located?
    Most of our machines are located in Europe, but for specific details on this machine please contact us.
