Ref: 56125

SOMA/CZ T41-40

See more machine specifications down below

Brand
Type of equipmentSlitter rewinder
Slitting Width35 mm – 1600 mm
Request price and more information

Find similar machines

56085 EUROMAC TB 5.06 Used slitter rewinder machine for sale (2)
56085 EUROMAC TB 5.06 Used slitter rewinder machine for sale (1)

EUROMAC TB 5.06

SKU: 56085
Brand
Cutting SystemOscillating razors
Working Widthmax 1600 mm
Type of equipmentSlitter rewinder

Microperforator

SKU: 3989

Adolf Muller Co – ZSR3

SKU: 56064
Doctoring Machine | Automatic two station back to back cent/surface/gap winder.

Laem VIS100-800 rewinder

SKU: 5706

    SOMA/CZ T41-40

    Request price and more information

    Share this machine

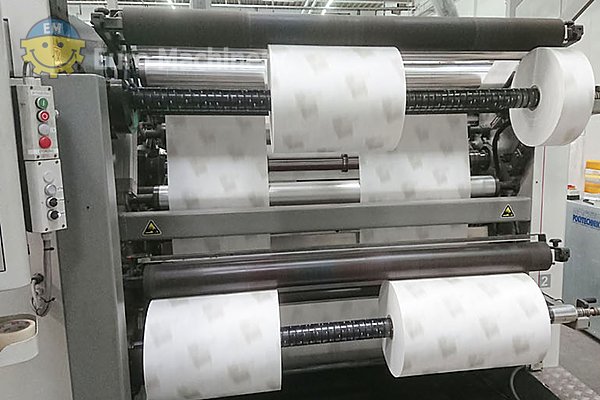

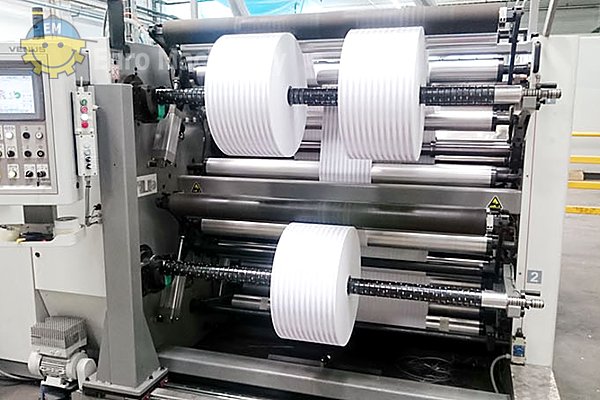

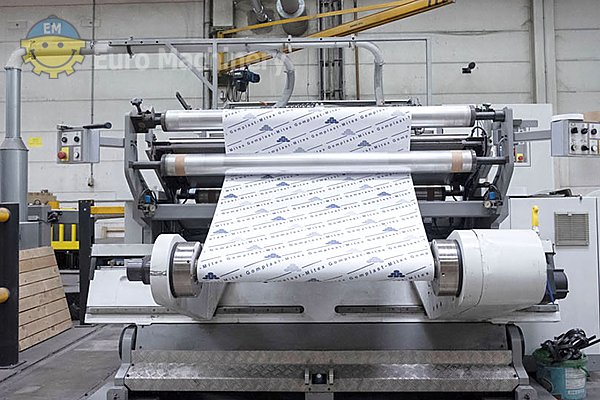

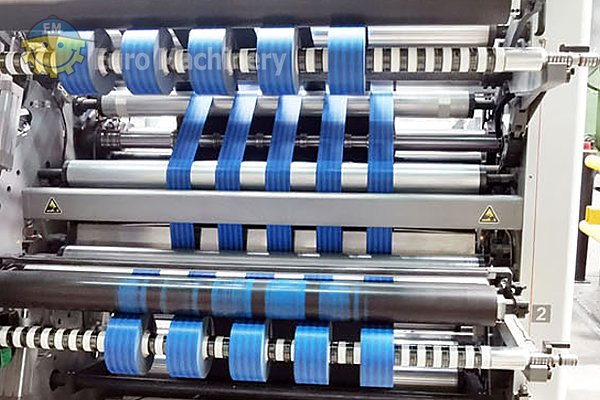

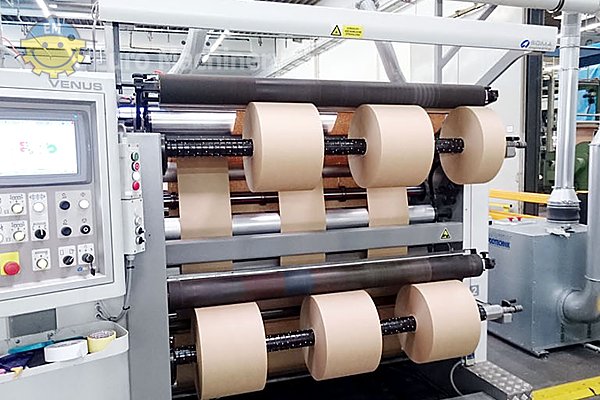

    SOMA CZ T41-40 Slitter rewinder

    Soma CZ T41-40 delivers professional-grade slitting and rewinding with precise cutting of paper, laminates, and plastic films. It includes automatic knife setting, laser core positioning, and dual turret rewinding shafts, enabling high-speed production up to 800 m/min.

    Key Specifications

    • Model: T41-40
    • Unwinder Diameter Max: 1200 mm
    • Rewind Diameter Range: 200-800 mm
    • Core Sizes: 70/76/100/150 mm
    • Material Compatibility: 20-200 gr. Paper/Laminates, PP+PET min. 0.008mm, PE min. 0.012mm

    Complete Specifications

    Brand SOMA/CZ
    Model T41-40
    Reference Number 56125
    Material Compatibility 20-200 gr. Paper/Laminates, PP+PET min. 0.008mm, PE min. 0.012mm
    Cutting Knives 20 pieces with automatic setting
    Material Width 350-1600 mm
    Minimum Slit Width 35 mm
    Unwinder Diameter Max 1200 mm
    Rewind Diameter Range 200-800 mm
    Core Sizes 70/76/100/150 mm
    Maximum Machine Speed 800 m/min
    Maximum Roll Weight 2000 kg
    Web Guiding System Yes – in unwinder
    Rewinding Shafts Two turret shafts
    Unwinding Station Separate
    Rewinding Station Turret type
    Core Positioning Laser-based
    Automatic Unload Yes
    Floor Pickup Yes

    Interested in this equipment?

    Contact us for pricing, availability, and additional information.
    The SOMA/CZ T41-40 is a heavy-duty slitter rewinder machine engineered for converting operations in the paper, laminate, and plastic film industries. It processes materials such as 20–200 gsm paper, laminates, PP+PET (minimum 0.008 mm), and PE films (minimum 0.012 mm). The machine uses 20 automatically setting cutting knives to deliver precise slitting widths from a minimum of 35 mm up to 1600 mm. The unwinder supports parent rolls up to 1200 mm in diameter, while the rewind system produces finished rolls ranging from 200 to 800 mm and accommodates core sizes of 70, 76, 100, and 150 mm. It reaches operating speeds of up to 800 m/min, supporting high-volume production. The system integrates a web-guiding unit in the unwinder, a separate unwinding station, and a turret rewinding station with two shafts. It positions cores accurately with a laser system, unloads finished rolls automatically, and enables floor pick-up. The machine handles roll weights of up to 2000 kg at both the unwinding and rewinding stations, supporting demanding industrial applications.

    SOMA CZ T41-40 Slitter rewinder

    Soma CZ T41-40 delivers professional-grade slitting and rewinding with precise cutting of paper, laminates, and plastic films. It includes automatic knife setting, laser core positioning, and dual turret rewinding shafts, enabling high-speed production up to 800 m/min.

    Key Specifications

    • Model: T41-40
    • Unwinder Diameter Max: 1200 mm
    • Rewind Diameter Range: 200-800 mm
    • Core Sizes: 70/76/100/150 mm
    • Material Compatibility: 20-200 gr. Paper/Laminates, PP+PET min. 0.008mm, PE min. 0.012mm

    Complete Specifications

    Brand SOMA/CZ
    Model T41-40
    Reference Number 56125
    Material Compatibility 20-200 gr. Paper/Laminates, PP+PET min. 0.008mm, PE min. 0.012mm
    Cutting Knives 20 pieces with automatic setting
    Material Width 350-1600 mm
    Minimum Slit Width 35 mm
    Unwinder Diameter Max 1200 mm
    Rewind Diameter Range 200-800 mm
    Core Sizes 70/76/100/150 mm
    Maximum Machine Speed 800 m/min
    Maximum Roll Weight 2000 kg
    Web Guiding System Yes – in unwinder
    Rewinding Shafts Two turret shafts
    Unwinding Station Separate
    Rewinding Station Turret type
    Core Positioning Laser-based
    Automatic Unload Yes
    Floor Pickup Yes

    Interested in this equipment?

    Contact us for pricing, availability, and additional information.
    The SOMA/CZ T41-40 is a heavy-duty slitter rewinder machine engineered for converting operations in the paper, laminate, and plastic film industries. It processes materials such as 20–200 gsm paper, laminates, PP+PET (minimum 0.008 mm), and PE films (minimum 0.012 mm). The machine uses 20 automatically setting cutting knives to deliver precise slitting widths from a minimum of 35 mm up to 1600 mm. The unwinder supports parent rolls up to 1200 mm in diameter, while the rewind system produces finished rolls ranging from 200 to 800 mm and accommodates core sizes of 70, 76, 100, and 150 mm. It reaches operating speeds of up to 800 m/min, supporting high-volume production. The system integrates a web-guiding unit in the unwinder, a separate unwinding station, and a turret rewinding station with two shafts. It positions cores accurately with a laser system, unloads finished rolls automatically, and enables floor pick-up. The machine handles roll weights of up to 2000 kg at both the unwinding and rewinding stations, supporting demanding industrial applications.
    • I would like to know the price of this machine
    We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.
    • Where is the machine located?
    Most of our machines are located in Europe, but for specific details on this machine please contact us.
