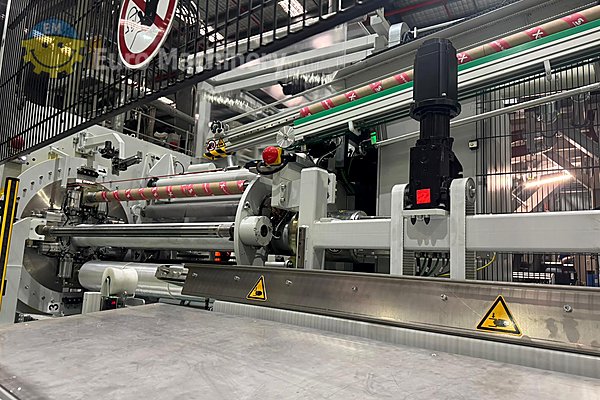

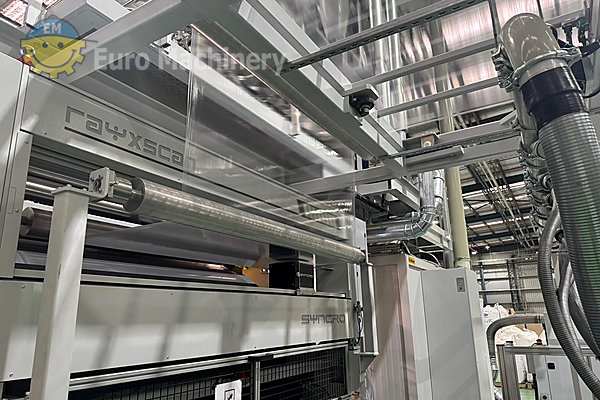

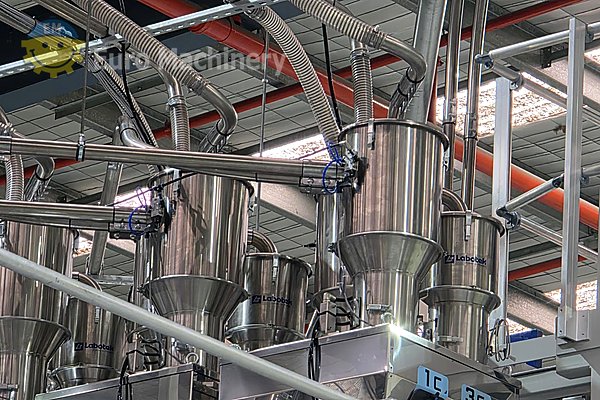

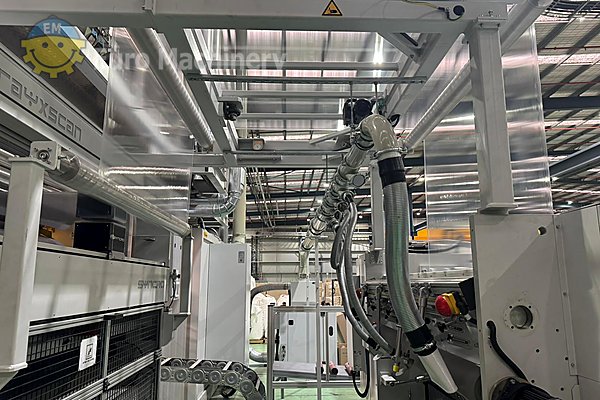

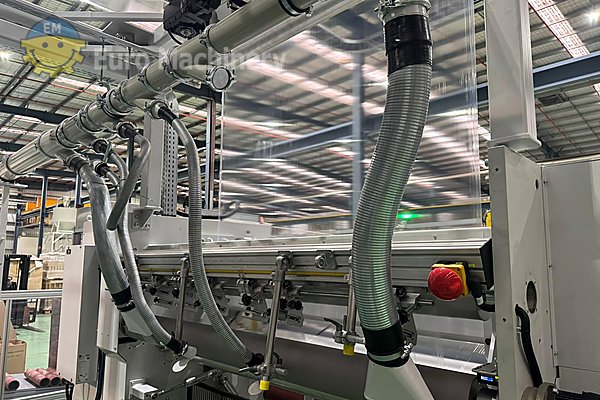

SML 5 Layers Multi-layer Cast Film Line
| Brand | |
|---|---|
| Layers |
5 |
| Output |
1.000 kg/h |
Find similar machines
SML 5 Layers Multi-layer Cast Film Line
The SML 5 Layers Multi-layer Cast Film Line is designed for producing high-quality stretch wrap film. It features a 5-layer coex structure and multiple extruders to achieve optimal film properties. This line is capable of processing LLDPE and VLDPE raw materials, ensuring versatility in production.
Key Specifications
- Manufacture & Model: SML 5 layers
- Output Max LLDPE Extruder A: 800 * kg/h
- Output Max LLDPE Extruder B: 200 kg/h
- Output Max LLDPE Extruder C: 200 kg/h
- Output Max LLDPE Extruder D: 200 kg/h
Complete Specifications
| Reference Number | 36038 |
| Manufacture & Model | SML 5 layers |
| Materials To Be Processed | Stretch wrap film |
| Rawmaterials | LLDPE 2,8 – 5,0 g/10min 190°C/2,16kg VLDPE 2,8 – 5,0 g/10min 190°C/2,16kg |
| Coex Structure | No. of layers 5 layers |
| Layer Distribution | B / A / D / A / C |
| Percentage | 10 / 35 / 10 / 35 / 10 % |
| Extruders | Number of extruders: 4 Extruders |
| Extruder A | 90/33 L/D |
| Output Max LLDPE Extruder A | 800 * kg/h |
| Extruder B | 60/28 L/D |
| Output Max LLDPE Extruder B | 200 kg/h |
| Extruder C | 60/28 L/D |
| Output Max LLDPE Extruder C | 200 kg/h |
| Extruder D | 60/28 L/D |
| Output Max LLDPE Extruder D | 200 kg/h |
| Final Film Width | 3 X 500mm |
| Flat Die Lip Width | 2050mm |
| Film Thickness Range | 8-35 microns |
| Roll Width | 2.100mm |
| Chill Roll | C1 Ø 600mm |
| Mechanical Speed | (max) 650m/min |
