SML 3 Layers

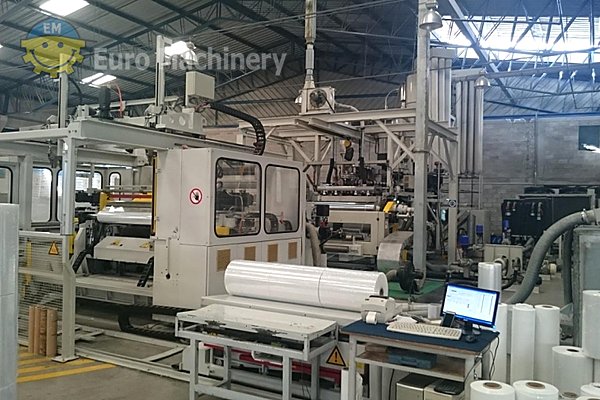

Professional 3-layer stretch film extrusion line capable of processing multiple polymer materials with output up to 500 kg/hour. Features advanced automation including automatic die calibration, in-line slitting, and continuous filter changing system for uninterrupted production.
Key Specifications
- Winder Model: SERIES 2000 (W2000)
- Maximum Output: 500 kg/hour
- Extruder 1 Diameter: 120/33 mm
- Extruder 2 Diameter: 45/28 mm
- Extruder 3 Diameter: 45/28 mm
Complete Specifications
| Number Of Extruders | 3 |
| Extruder 1 Diameter | 120/33 mm |
| Extruder 2 Diameter | 45/28 mm |
| Extruder 3 Diameter | 45/28 mm |
| Die Type | Flat die Verbruggen with automatic calibration |
| Calibration System | Thermo-Fisher Kr-85 |
| Maximum Output | 500 kg/hour |
| Chill Roller Width | 2,100 mm |
| Minimum Film Thickness | 10 microns |
| Maximum Film Thickness | 110 microns |
| Winder Model | SERIES 2000 (W2000) |
| Winder Shaft Sizes | 3-inch (600 mm diameter) and 6-inch (800 mm diameter) |
| Contact Roller Material | Carbon fiber |
| Working Speed | 250 m/min |
| Materials Processed | Cast PP (CPP), LDPE (CPE), HDPE (CPE), cling film, manual and automatic stretch film, stretch film for haylage/silage |
| Slitting Capability | Up to 6 cuts with in-line reprocessing |
| Accessories | Melt pump, material weighing system, in-line slitting unit with Scraptruder, Thermo-Fisher thickness measuring unit, automatic die thickness adjustment (Auto Die), single-sided AFS corona treater, automatic cassette-type filter changing system, vacuum box, soft box for transparency improvement |
