Krauss Maffei PU Foam System

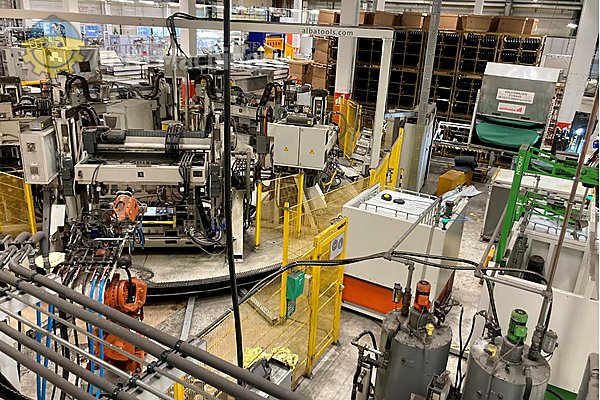

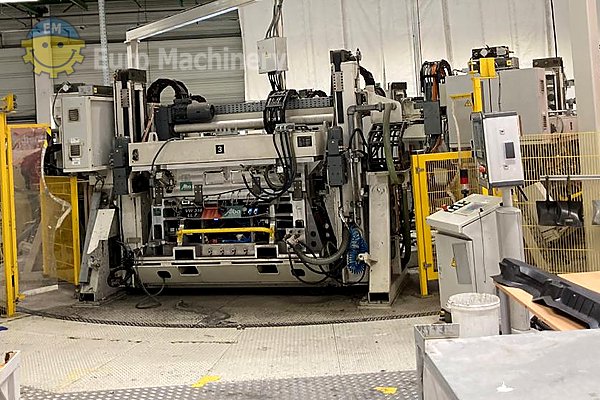

Complete polyurethane foam injection system featuring automated loading, surface activation, foaming, curing, and quality inspection stations. Includes integrated Hill flame-treatment unit and robotic handling with 400 kN clamping force for precision plastic converting applications.
Key Specifications
- Mould Carrier Weight: 4,500 kg
- Maximum Parallel Stroke: 1,100 mm
- Total Mould Weight: 2,500 kg
- Allowed Specific Load: 1,000 kg
- Maximum Working Pressure: 6 bar
Complete Specifications
| Material Processed | PU or similar |
| Mould Carrier Weight | 4,500 kg |
| Maximum Parallel Stroke | 1,100 mm |
| Total Mould Weight | 2,500 kg |
| Allowed Specific Load | 1,000 kg |
| Maximum Working Pressure | 6 bar |
| Maximum Clamping Force | 400 kN |
| Operating Vacuum | approx. 0.7 bar |
| Electrical Specifications | 3×230/400 V + N + PE, 50 Hz |
| Number Of Stations | 5 |
| Key Components | Insertion station, Hill flame-treatment unit, KM foam component, placement stations, removal handling, void inspection (Q-Check Lunker) |
| Automation Features | Robotic removal, automated void (sink-mark) inspection, discharge conveyor placement |
