KRAUSS MAFFEI KM 1600-17200 MX Injection Moulding Machine
KRAUSS MAFFEI KM 1600-17200 MX Injection Moulding Machine

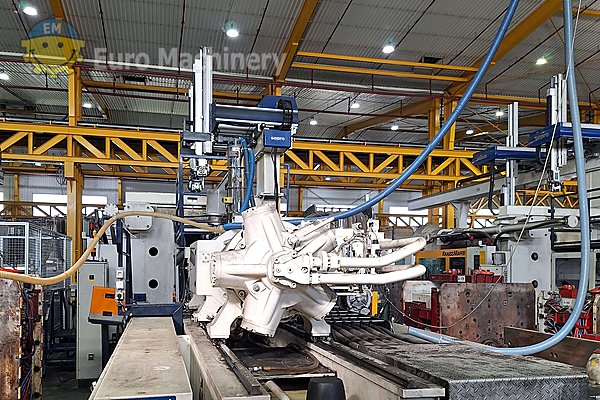

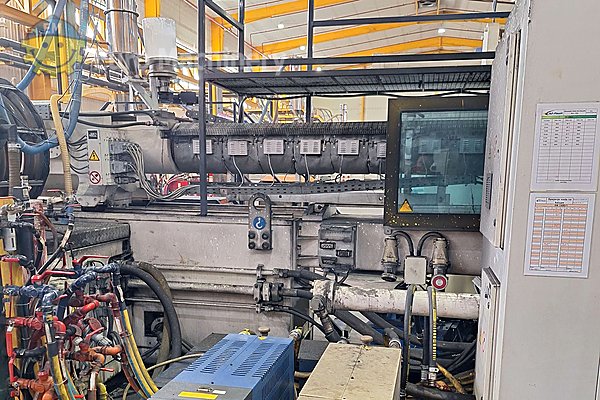

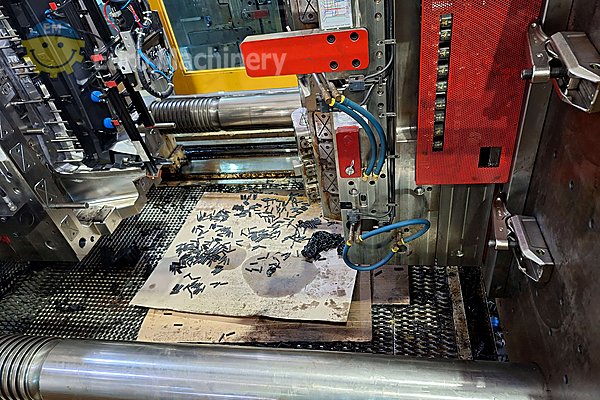

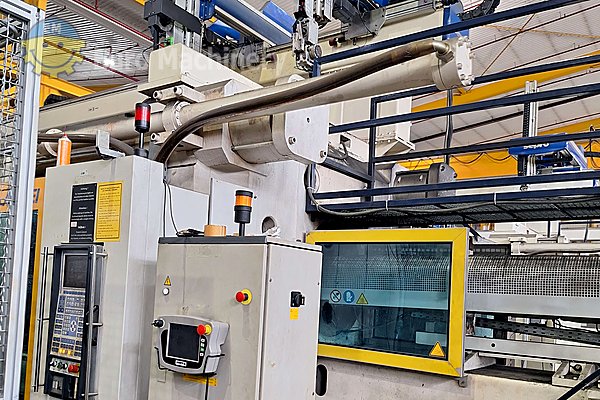

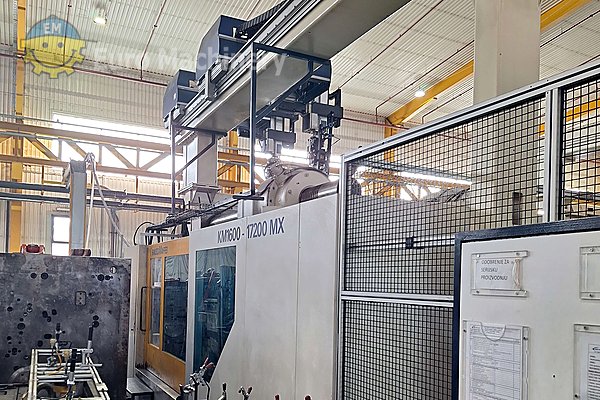

KRAUSS MAFFEI KM 1600-17200 MX is an heavy-duty injection moulding machine with 1600 kN clamping force and 17,200 cm³ injection capacity. Features advanced hydraulic sequential injection system with dual-arm BZ-V robot manipulator for automated part handling and production optimization.
Key Specifications
- Cylinder Type: 17,000 MX
- Injection Capacity: 17,200 cm³
- Pump Operating Capacity: 160 kW
- Oil Tank Capacity: 2,500 L
- Cylinder Diameter: 135 mm
Complete Specifications
| Clamping Force | 1600 kN (160 T) |
| Injection Capacity | 17,200 cm³ |
| Max Injection Pressure | 1,784 bar |
| Max Injectable Mass | 8,792 g |
| Cylinder Type | 17,000 MX |
| Cylinder Diameter | 135 mm |
| Max Cylinder Temperature | 375 °C |
| Thermoregulation Zones | 7 |
| Heating Power Per Zone | 2×8,100 W |
| Mold Heating Power | 96 kW |
| Mold Heating Zones | 48 |
| Min Mold Height | 700 mm |
| Max Mold Height | 1,600 mm |
| Max Tool Weight | 43,000 kg |
| Max Clamping Plate Spacing | 3,400 mm |
| Clamping Plate Horizontal | 2,500 mm |
| Clamping Plate Vertical | 2,100 mm |
| Bright Opening Horizontal | 1,850 mm |
| Bright Opening Vertical | 1,400 mm |
| Centering Ring Diameter | 250 mm |
| Hydraulic Ejector | Yes |
| Ejector Stroke Length | 320 mm |
| Air Ejection Movable Side | Yes (1) |
| Air Ejection Stationary Side | Yes (1) |
| Sequential Injection Type | Hydraulic |
| Sequential Control Hydraulics | Yes |
| Rack Control Sequential | No |
| Cores Fixed Side | 2 |
| Cores Movable Side | 3 |
| Pump Operating Capacity | 160 kW |
| Motor Speed | 1,420 rpm |
| Motor Current | 305 A |
| Supply Current Fuse | 443/500 A |
| Oil Tank Capacity | 2,500 L |
| Machine Mass | 110,000 kg |
| Working Hours Uptime | 91,671 hours |
| Working Hours Cycle Time | 70,157 hours |
| Robot Type | BZ-V |
| Robot Arms | 2 |
| Robot Disposal Position | Back |
| Injector Cylinder Thread | M 56X3 |
| Max Cochlear Revolutions | 243 g/s |
| Volume Stroke Opening | 9,662 cm³ |
