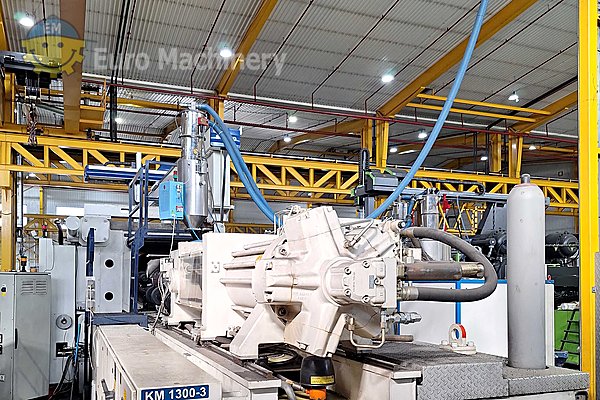

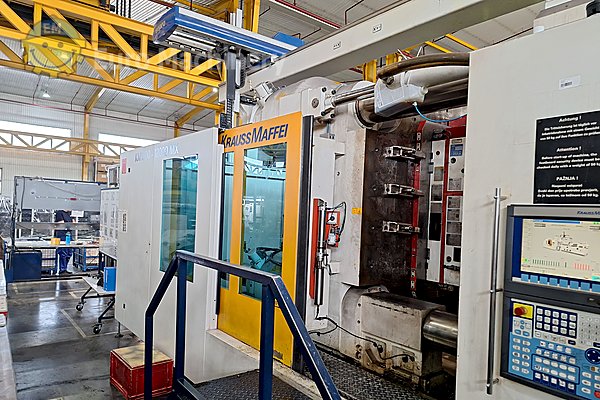

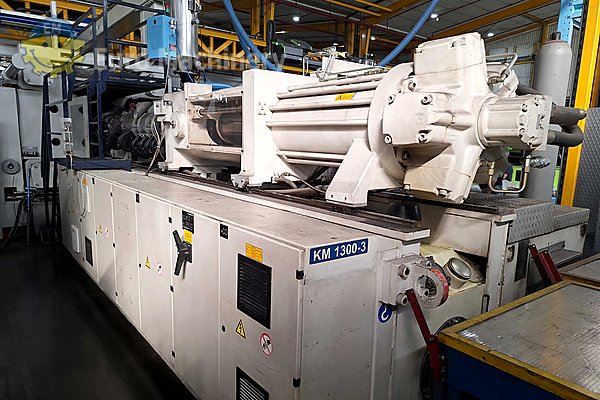

KRAUSS MAFFEI KM 1300-12000 MX
KRAUSS MAFFEI Injection Moulding Machine
KRAUSS MAFFEI KM 1300-12000 MX Injection Moulding Machine is a heavy-duty injection moulding machine with 1300 kN clamping force and advanced 12-channel sequential hydraulic control system. Features 84 kW mold heating power and maximum injection pressure of 1758 bar, ideal for high-volume production of complex plastic components.
Key Specifications
- Cylinder Type: 13,000 MX
- Robot Type: S5
- Injection Capacity: 12,000 g
- Electric Motor Capacity: 132 kW
- Oil Tank Capacity: 2,440 l
Complete Specifications
| Clamping Force | 1300 kN (130 T) |
| Injection Capacity | 12,000 g |
| Max Injectable Mass | 6,175 g |
| Volume Stroke Opening | 6,786 cm³ |
| Cylinder Type | 13,000 MX |
| Cylinder Diameter | 120 mm |
| Max Injection Pressure | 1758 bar |
| Max Cylinder Temperature | 375 °C |
| Installed Mold Heating Power | 84 kW |
| Mold Heating Zones | 28 |
| Thermoregulation Zones | 7 |
| Heating Power Per Zone | 2 x 7,000 W |
| Sequential Control Channels | 12 |
| Sequential Injection Type | Hydraulic |
| Fixed Cores | 2 |
| Movable Cores | 3 |
| Centering Ring Diameter | 250 mm |
| Min Mold Height | 700 mm |
| Max Mold Height | 1,400 mm |
| Max Clamping Plate Spacing | 3,050 mm |
| Horizontal Bright Opening | 1,550 mm |
| Vertical Bright Opening | 1,250 mm |
| Clamping Plate Horizontal Dimension | 2,150 mm |
| Clamping Plate Vertical Dimension | 1,910 mm |
| Max Tool Weight | 29,000 kg |
| Electric Motor Capacity | 132 kW |
| Motor Speed | 1,420 rpm |
| Motor Current | 255 A |
| Line 1 Supply Current | 255 A |
| Line 1 Fuse Value | 315 A |
| Line 2 Supply Current | 374 A |
| Line 2 Fuse Value | 400 A |
| Oil Tank Capacity | 2,440 l |
| Working Hours Up Time | 91,679 hours |
| Working Hours Cycle Time | 71,817 hours |
| Robot Type | S5 |
| Robotic Arms | 1 |
| Robot Disposal Location | Back |
