HKS-1100W Auto Roll to Sheet Cutting Machine
HKS-1100W Auto Roll to Sheet Cutting Machine

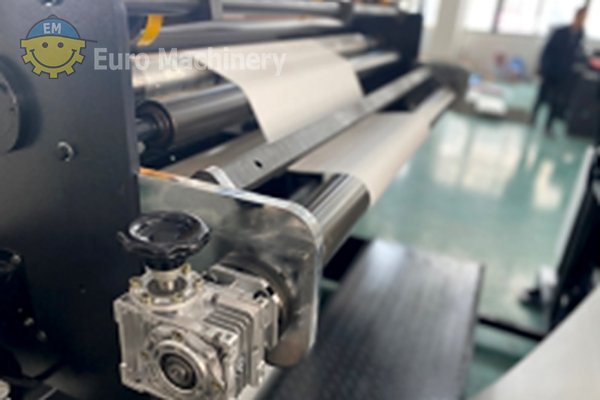

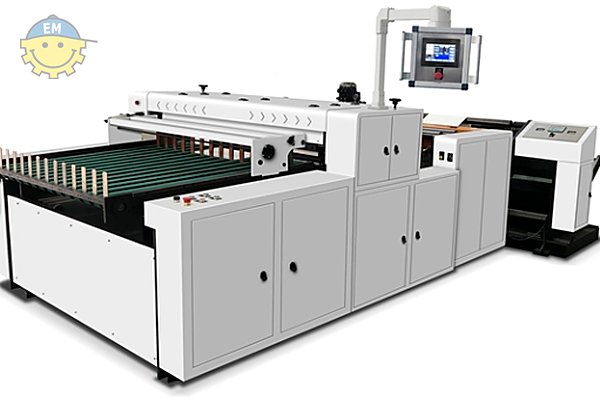

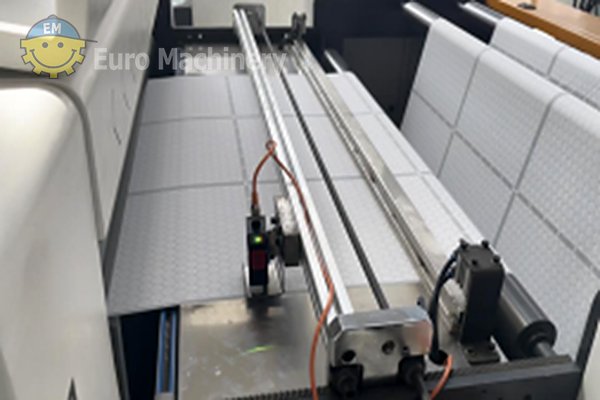

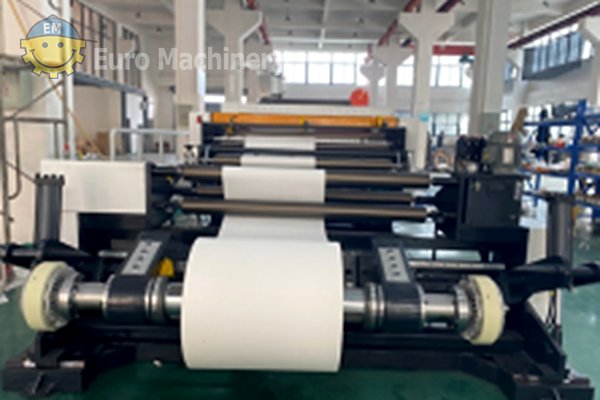

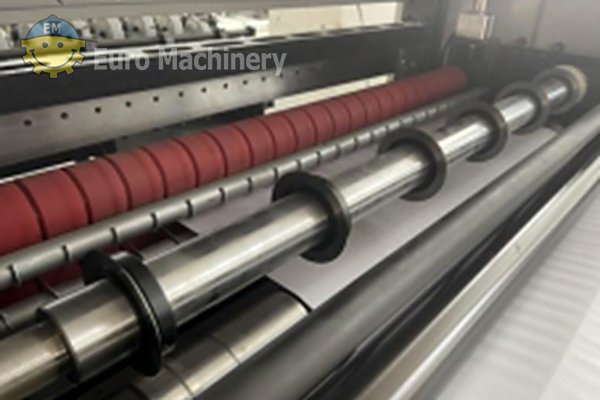

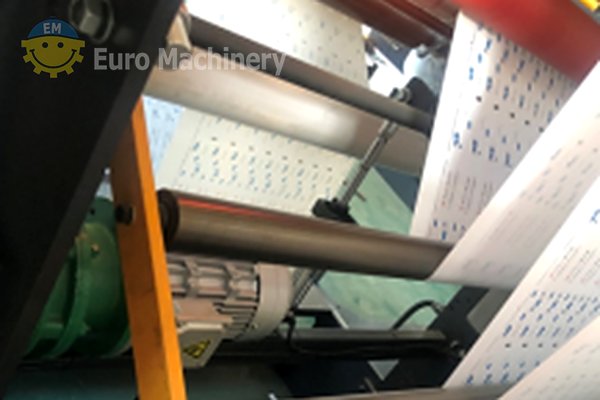

HKS-1100W is a high-speed, high-precision auto roll to sheet cutting machine designed for papers, adhesive stickers, PVC, and coated materials. Features shaft-less unwinder, hydraulic lifting system, and conveyor stacker for continuous operation without stopping.
Key Specifications
- Max Unwinding Diameter: 1400 mm
- Inner Core Diameter: 76mm (3″) and 152mm (6″)
- Max Roll Diameter: 1400 mm
- Unwinder Type: Shaft-less
- Max Cutting Speed: 180 m/min
Complete Specifications
| Cutting Thickness | 30-500 g/m2 |
| Max Cutting Width | 1100 mm |
| Max Unwinding Diameter | 1400 mm |
| Inner Core Diameter | 76mm (3″) and 152mm (6″) |
| Cutting Length Range | 20-700 mm |
| Cross Cutting Precision | ±0.2mm |
| Max Cutting Speed | 180 m/min |
| Max Pile Stack Height | 150 mm |
| Total Power | 8 kw |
| Air Supply | 5.5kg/cm2×5m3/min |
| Max Roll Diameter | 1400 mm |
| Max Roll Weight | 2000 kg |
| Unwinder Type | Shaft-less |
| Arm Configuration | Independent left and right movement |
| Lifting System | Hydraulic |
| Accessories | Ultrasonic web guiding system (EPC), Tension control, Anti-curve device, Slitting function, Dance rolls, Pneumatic nip rubber roller, Auto Stacker and Conveyor |
