Find similar machines
DIMAC MCV0
DIMAC MCV0 Optical Sorting Machine

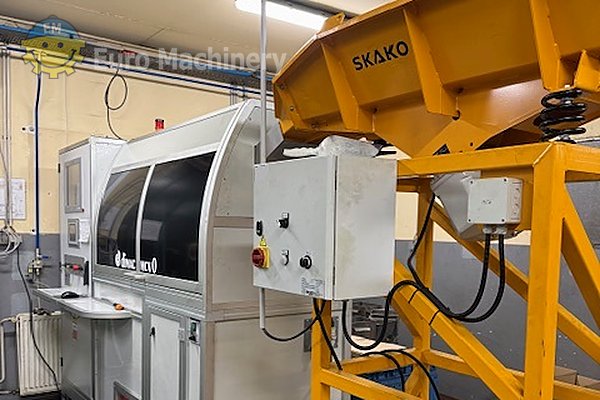

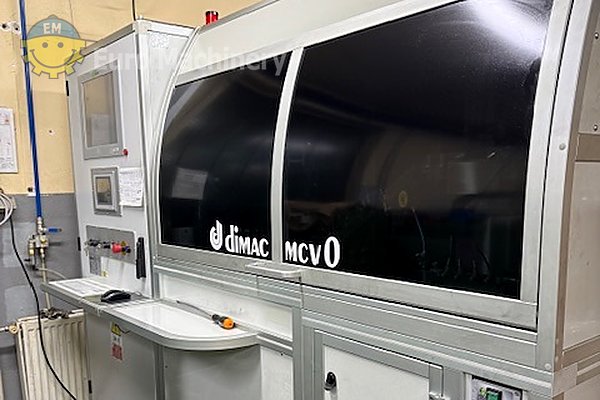

Dimac MCV0 is a professional optical sorting machine with automatic rotary table for 100% inspection of fasteners M2-M4. Features dual CCD camera stations with telecentric optics and 360° all-around inspection capability, equipped with stainless steel bowl feeder and Allen & Bradley PLC controller.
Key Specifications
- Model: DIMAC MCV0
- Working Range Head Diameter: 5÷12mm
- Max Visible Head Diameter: 15mm
- Working Range Fastener Size: M2÷M4
- Machine Type: Optical Sorting Machine – Automatic Rotary Table
Complete Specifications
| Machine Type | Optical Sorting Machine – Automatic Rotary Table |
| Model | DIMAC MCV0 |
| Working Range Fastener Size | M2÷M4 |
| Working Range Length | 6÷20mm |
| Working Range Head Diameter | 5÷12mm |
| Feeder Type | Stainless steel bowl feeder Pesce with noise enclosure |
| Disk M2 | 40 slots, 1mm thick |
| Disk M3 | 40 slots, 1mm thick |
| Disk M4 | 40 slots, 2mm thick |
| Inspection Station 1 | Side profile dimensional inspection with CCD AVT Digital cameras |
| Camera Resolution | 1.5 Megapixels per camera |
| Camera Optics | Telecentric TC-2336 |
| Max Piece Visible Length | 20mm |
| Max Visible Head Diameter | 15mm |
| Inspection Station 2 | 360° all-around inspection with interchangeable magnet |
| Controller | Allen & Bradley PLC with LCD screen |
| Software | Dimac-MCV Zero (Portuguese language) |
| Vision System | Industrial PC Pentium 4 compatible with digital vision |
| Display | LCD colour screen with touch sensitive keyboard |
| Condition Status | In good working conditions, operational |
