Ref: 36044

Colines Polycast Multi-layer Cast Film Line

See more machine specifications down below

Brand	Colines
Layers	5
Output	1100 kg/h

Find similar machines

Bubble Wrap film line | maszyna do folii bąbelkowej

Macchi 5 layer

SKU: 3642

Brand

Colines Polycast Multi-layer Cast Film Line

Share this machine

GENERAL DESCRIPTION

NEXT STEPS – FAQs

GENERAL DESCRIPTION

NEXT STEPS – FAQs

General Description

High-capacity multi-layer cast film extrusion line with 5 extruders capable of producing CPP and CPE films with EVOH barrier layers. Features advanced computer-controlled die system, automatic winding station, and integrated thickness profile control for consistent quality output up to 1100 kg/hour.

Key Specifications

Thickness Gauge Model: UL02B-3500
Apc Model: APC1-001B
Maximum Output: 1100 kg/hour
Corona Generator Output: 40 kW
Extruder 1 Screw Diameter: 90mm

Complete Specifications

Manufacturer	Colines
Model	Polycast
Reference Number	36044
Materials Processed	CPP and CPE (with EVOH)
Number Of Extruders	5

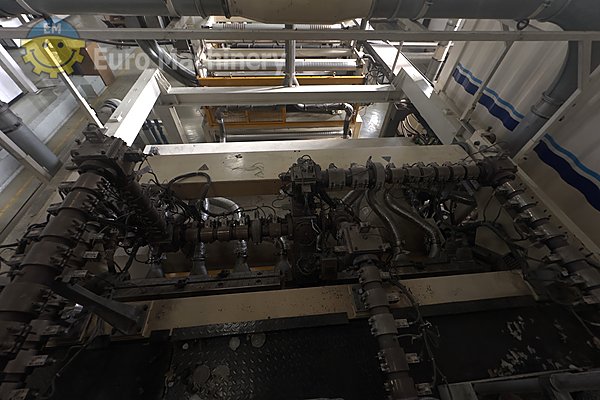

Film Structures	ACBCD/BBACD/DCABB (through selector plug)
Extruder 1 Screw Diameter	90mm
Extruder 1 L D Ratio	30
Extruder 1 Max Throughput	200 kg/h
Extruder 1 Max Rpm	132.3
Extruder 1 Motor Power	102 kW AC
Extruder 2 Screw Diameter	140mm
Extruder 2 L D Ratio	30
Extruder 2 Max Throughput	700 kg/h
Extruder 2 Max Rpm	112.5
Extruder 2 Motor Power	276 kW AC
Extruder 3 Screw Diameter	90mm
Extruder 4 Screw Diameter	90mm
Dosing System	3-component DOTECO gravimetric with vacuum feeders
Barrel Material	Nitride steel with 0.4mm depth lapping
Heating System	Ceramic heaters with welded sheet iron barrel cover
Screen Changer	Hydraulic
Gearbox Type	Parallel axis with ground helical gears
Die Type	Flat die CLOEREN/USA
Die Lip Width	3000 mm
Die Lip Flex Range	1.5mm (0.060 inches)
Die Plating	GemNi™ enhanced nickel with silicon-carbide particles
Primary Chill Roll Diameter	1000 mm
Primary Chill Roll Width	3100 mm
Secondary Chill Roll Diameter	450 mm
Chill Roll Drive	Independent AC motors with encoders and tangential cooling fans
Air Knife	Motorized position control
Edge Pinning	Pneumatic and electrostatic via high voltage electrodes

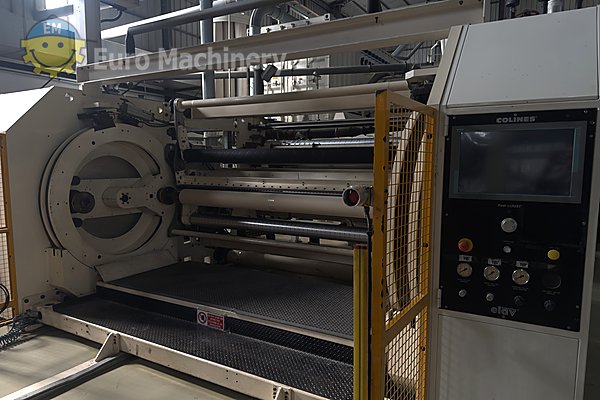

Winder Type	FLEXIWIND® automatic double winding station
Maximum Line Speed	450 m/min
Maximum Reel Diameter	1200 mm
Winding Width	2500 mm
Core Diameter	152 mm
Maximum Output	1100 kg/hour
Thickness Gauge Make	SCANTECH
Thickness Gauge Model	UL02B-3500
Thickness Gauge Type	IR measurement
Apc Model	APC1-001B
Corona Treatment Unit	Me.Ro MK/T 40k-IGBT/3f
Corona Roller Diameter	300 mm
Corona Treatment Width	2550 mm
Control System	Siemens supervision panel with ProTool development environment

Interested in this equipment?

The Colines Polycast Multi-layer Cast Film Line is a sophisticated extrusion system designed for producing multi-layer cast films with flexible layer configurations (ACBCD/BBACD/DCABB). The system comprises 5 extruders with varying specifications: Extruders 1, 3, and 4 feature 90mm diameter screws with 200 kg/h output and 102 kW motors, while Extruder 2 utilizes a larger 140mm diameter screw with 700 kg/h capacity and 276 kW motor. All extruders are equipped with 3-component DOTECO gravimetric dosing modules with vacuum feeders and advanced temperature control via Fe-Cost thermocouples. The production line incorporates a CLOEREN/USA flat die with 3000mm lip width and computer-controlled lip adjustment system, featuring GemNi™ enhanced nickel plating for superior corrosion resistance. The chill roller section includes a primary 1000mm diameter roll (3100mm wide) and secondary 450mm diameter roll with independent AC motor drives, air knife positioning, and pneumatic/electrostatic edge pinning. Maximum line speed reaches 450 m/min with output capacity up to 1100 kg/hour depending on material formulation.

Next Steps – Frequently asked questions

I would like to know the price of this machine

We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.

Where is the machine located?

Most of our machines are located in Europe, but for specific details on this machine please contact us.
