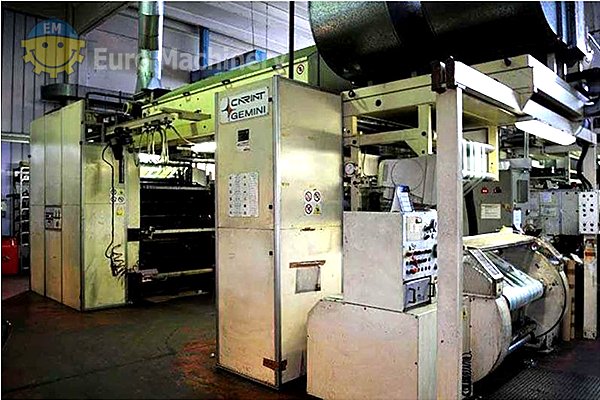

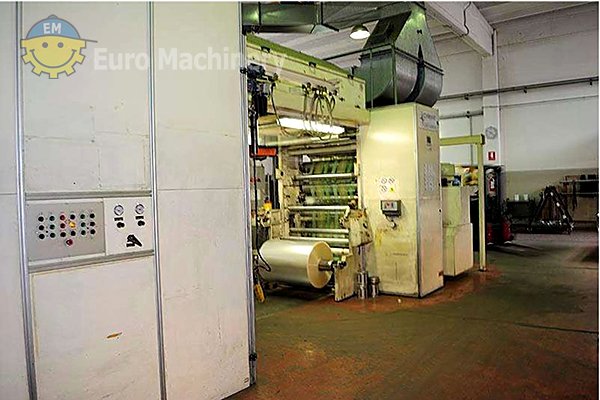

CARINT GEMINI 6-Color
Professional 6-color flexographic printing machine designed for PE and PP materials with 1200mm printing width. Features geared drive system, automatic winder, and gas drying technology for high-quality flexible packaging production.
Key Specifications
- Type: Flexographic Printer
- Brand & Model: Caring Gemini
- Colors: 6
- Printing Width: 1200 mm
- Print Repeat Range: 330 mm – 800 mm
- Unwinder Max Roll Diameter: 800 mm
- Winder Max Roll Diameter: 800 mm
- Gear Sizes Available: 330, 340, 345, 350, 360, 365, 380, 390, 400, 410, 420, 440, 450, 460, 480, 490, 500, 505, 520, 530, 560, 590, 600, 630, 640, 735, 750 mm
Complete Specifications
| Brand | CARINT |
| Model | GEMINI |
| Type | Flexographic Printer |
| Drive Type | Geared |
| Number Of Colors | 6 |
| Materials | PE, PP |
| Printing Width | 1200 mm |
| Material Width | 1260 mm |
| Print Repeat Range | 330 mm – 800 mm |
| Mechanical Speed | Up to xxx m/min |
| Unwinder Type | Standard winder |
| Unwinder Max Roll Diameter | 800 mm |
| Unwinder Expanding Shafts | 3 inch |
| Winder Type | Automatic change |
| Winder Max Roll Diameter | 800 mm |
| Winder Expanding Shafts | 3 inch |
| Pumps | 6 pcs, Pneumatic |
| Drying System | Gas drying |
| Doctor Blade Units | 8 closed-chamber |
| Ink Trays | 6 stainless steel |
| Ink Circulation Pumps | 8 Wagner Colora |
| Anilox Cylinders | 9 pcs |
| Cliche Holder Cylinders | 36 pcs (630/640/735/750) |
| Gear Sizes Available | 330, 340, 345, 350, 360, 365, 380, 390, 400, 410, 420, 440, 450, 460, 480, 490, 500, 505, 520, 530, 560, 590, 600, 630, 640, 735, 750 mm |
| Unwinding Expansion Shafts | 4 pcs (2x 76mm diameter, 2x 152mm diameter) |
| Rewinding Expansion Shafts | 3 pcs (2x 76mm diameter, 1x 152mm diameter) |
| Film Centering System | BST Film Centering System at infeed with outfeed provision |
| Quality Control | L&C Graph camera |
| Temperature Control | Central drum temperature conditioning system |
| Motorized Register | Yes |
