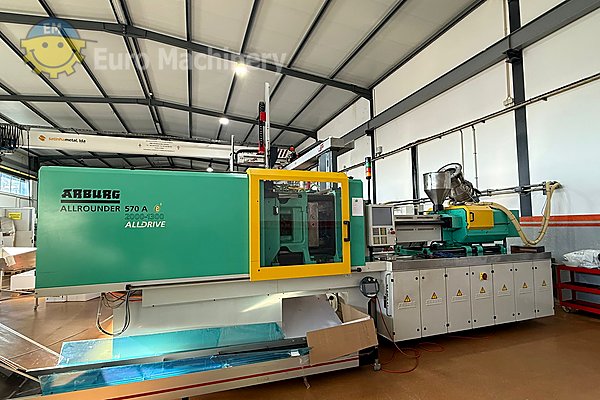

ARBURG 200t Allrounder 570
Professional-grade 200-ton injection moulding machine designed for thermoplastics processing with advanced hydraulic and electric hybrid technology. Features 2000 bar injection pressure, 664 cm³ maximum shot volume, and dual accumulator-assisted hydraulic system for precision manufacturing.
Key Specifications
- Screw Diameter: 60 mm
- Platen Size H X V: 795 x 795 mm
- Material Type: Thermoplastics
- Clamping Force: 200 T
- L D Ratio: 20
Complete Specifications
| Clamping Force | 200 T |
| Material Type | Thermoplastics |
| Screw Diameter | 60 mm |
| L D Ratio | 20 |
| Max Shot Volume | 664 cm³ |
| Injection Pressure | 2000 bar |
| Shot Weight | 607 g/PS |
| Mould Height Min Max | 250-550 mm |
| Mould Max Opening Stroke | 450 Kn/mm |
| Platen Size H X V | 795 x 795 mm |
| Tie Bar Distance H X V | 570 x 570 mm |
| Drive System | Hybrid – Hydraulic injection with electric drive |
| Accumulator Count | 2 |
| Core Extractors | 2 |
| Hot Nozzle Zones | 9 |
| Operating Hours | 31,106 h |
