AMD650FSL-M

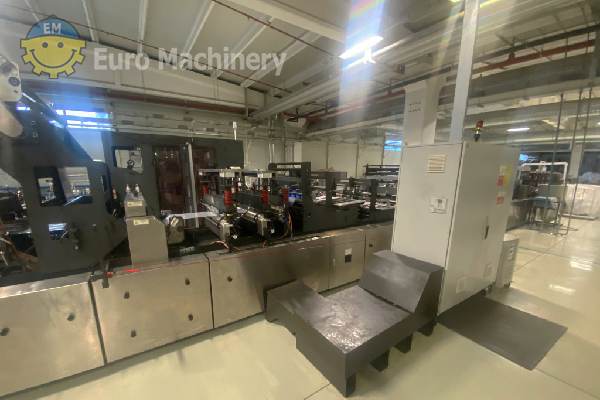

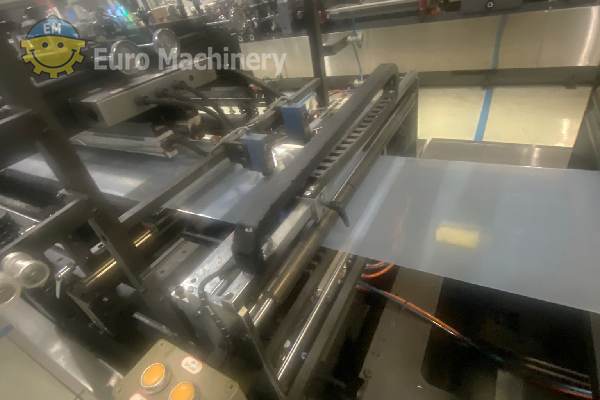

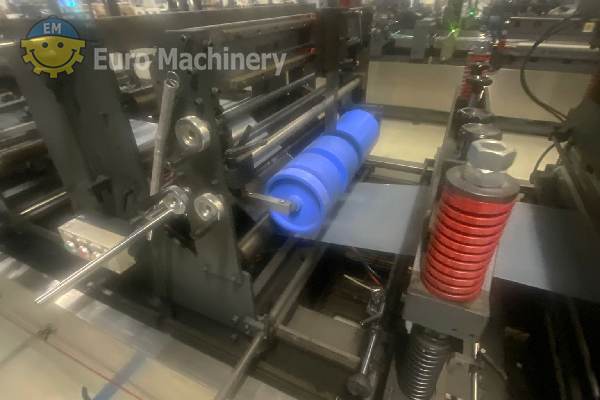

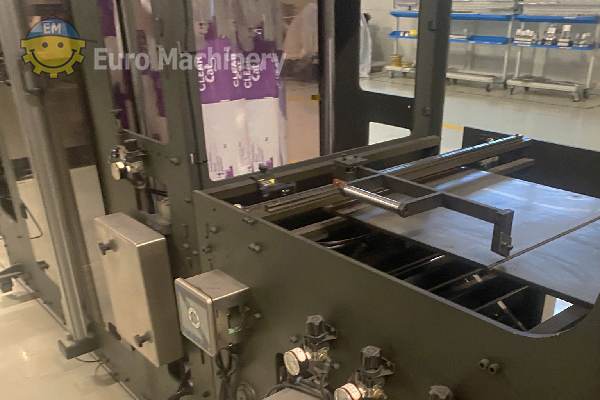

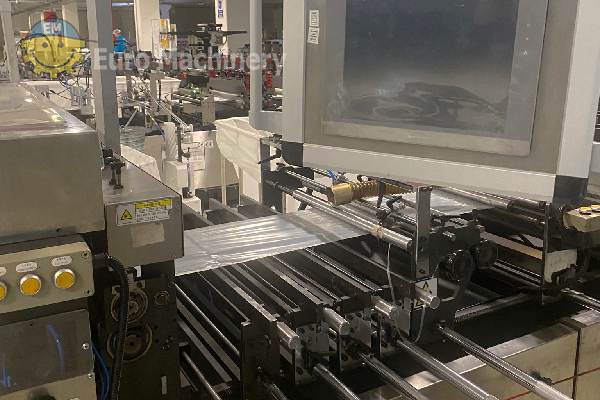

Pouch bag making machine
Pouch bag making machine to produce quad seal bags, flat bottom bags, pouch bags. Pouch bags width from 100 to 400 mm, length from 180 mm to 650 mm and gusset depth from 25 to 80 mm. Brand & Model: Zhou Tai AMD650FSL-M Type: Quad Seal, Flat Bottom Pouch Machine Type of production: Pouch bags Material that can be processed: LDPE, CPP, MCPP, AL, NYLON, PP Web / Film Capacity:- Body film max width: 1320 mm
- Side gusset max width: 330 mm
- Machine web path max: 680 mm
- Roll diameter: Ø 800 mm (body + gusset)
- Core diameter: 3”
- Height: Max 650 mm Min 180 mm
- Width: Max 400 mm Min 100 mm
- Bottom gusset depth: Max 80 mm Min 25 mm
- Flat-bottom pouches: 35–100 cuts/min
- Material speed: 35 m/min
- Speed depends on gusset length and material thickness.
- PLC controlled
- Operator interface terminal
- Print registration control
- Servo motor driven
- Input nip rollers
- Sealing bar
- Driven un-winder 1320 mm wide
- Gusseting station
- Slit-seal
- Side welder sealer

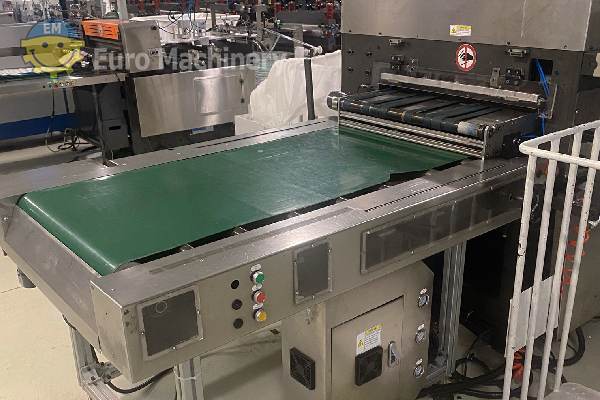

- Stacking/ index table
- Presealers
- Angle sealers
- Cross sealers
- Photocell for printed film
- Web guide unit
- Anti-static bars
- Edge Guide System
- Pocket Zipper & Aplix Zipper Types
- Body Film Accumulator
