17 storage silos
| Type of equipment | Silos |
|---|
Find similar machines
CARBONINI RAS 21.20 Flanging Machine for Air Ducts
| Weight | 180 kg |
|---|---|
| Brand | CARBONINI |
| Type of equipment | Flanging Machine for Air Ducts |
17 storage silos

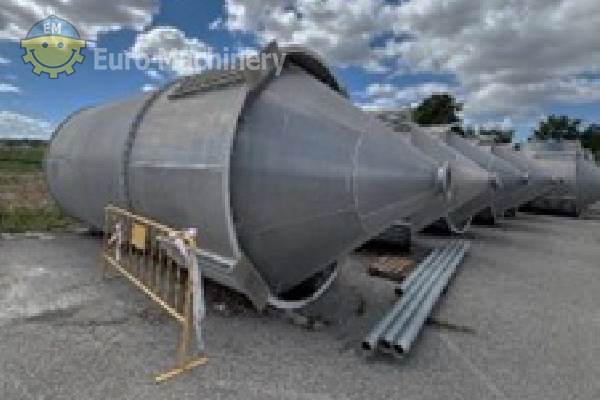

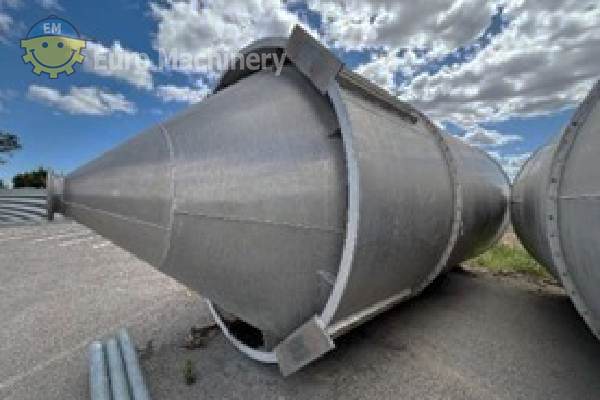

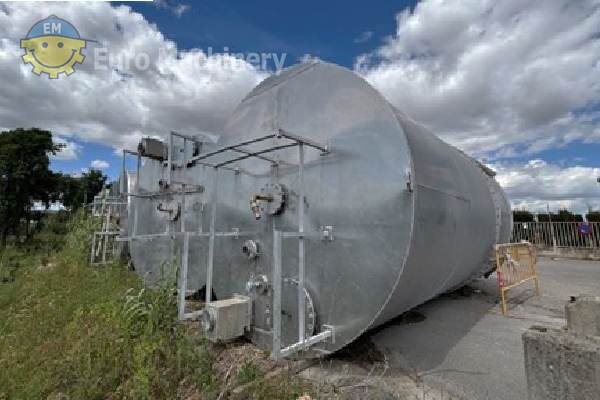

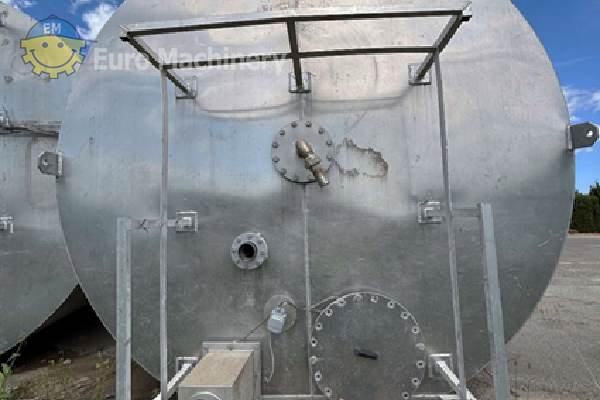

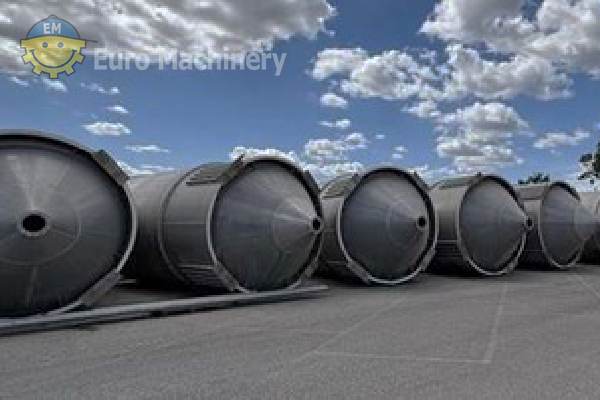

TECHNICAL DESCRIPTION
8 Silos – S-01/08 DIMENSIONS- Total height: 7500mm
- Diameter: 3300mm
- Total volume: 53.6m3
- Geometry: Vertical cylindrical with conical bottom
- Cone Angle: 41°
- Body: AlMg3 Aluminum
- Ferrule thickness: 5mm
- Conical bottom thickness: 5mm
- Corrosion status: non-existent

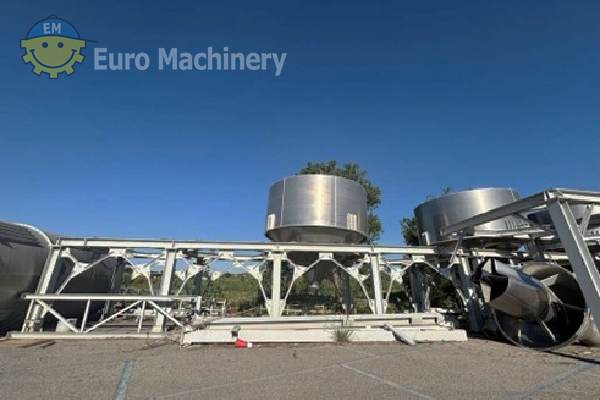

- Support structure: metal structure
- Weighing system: Equipped with 4 load cells.
- Type: Conical hopper
- Outlet Mouth: DN250
- DN100 loading mouth
- DN300 cleaning spout
- Manhole / DN650 register
- Maximum level mouth DN150
- Silo drying mouth – rectangular 270x260mm
- Total height: 4000mm
- Diameter: 4500mm
- Total volume: 39.9m3
- Geometry: Vertical cylindrical with conical bottom
- Cone Angle: 46°
- Body: AlMg3 Aluminum
- Ferrule thickness: 5mm
- Conical bottom thickness: 5mm
- Corrosion status: non-existent
- Type: Conical hopper
- Outlet Mouth: DN250
- 1x Manhole / DN550 register
- 1x Rectangular mouth 800×600
- Total height: 4000mm
- Diameter: 4500mm
- Total volume: 39.9m3
- Geometry: Vertical cylindrical with conical bottom
- Cone Angle: 46°
- Body: AlMg3 Aluminum
- Ferrule thickness: 5mm
- Conical bottom thickness: 5mm
- Corrosion status: non-existent
- Type: Conical hopper
- Outlet Mouth: DN250
- 1x Manhole / DN550 register
- 1x Rectangular mouth 800×600
- Overall Height: 9000mm
- Diameter: 3800mm
- Total volume: 67.8m3
- Geometry: Vertical cylindrical with conical bottom
- Cone Angle: 36°
- Body: AlMg3 Aluminum
- Ferrule thickness: 5mm
- Conical bottom thickness: 5mm
- Corrosion status: non-existent
- Weighing system: Equipped with 4 load cells.
- Type: Conical hopper
- Outlet Mouth: DN200
- Overall Height: 7550mm
- Diameter: 3300mm
- Total volume: 53.7m3
- Geometry: Vertical cylindrical with conical bottom
- Cone angle: 40°
- Body: AlMg3 Aluminum
- Ferrule thickness: 5mm
- Conical bottom thickness: 5mm
- Corrosion status: non-existent
- Support structure: metal structure
- Weighing system: Equipped with 4 load cells.
- Type: Conical hopper
- Outlet Mouth: DN200
Interested in this equipment?
Contact us for pricing, availability, and additional information.How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
