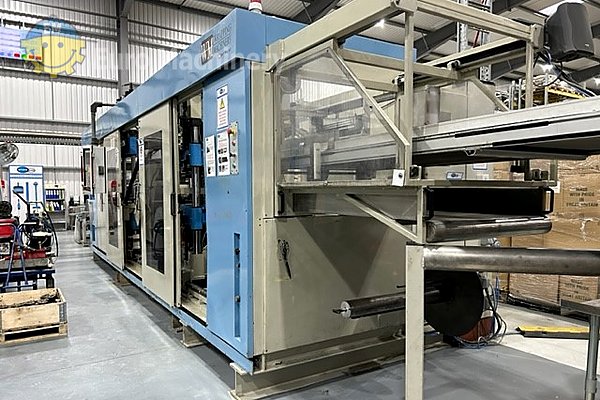

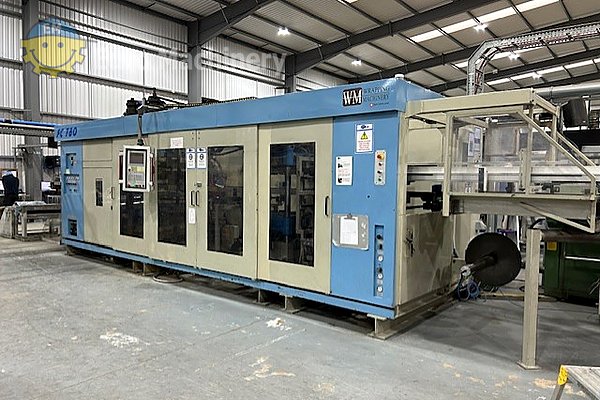

WM FC780E 3-Station Vacuum Thermoforming Line
Professional 3-station vacuum thermoforming machine capable of processing multiple plastic materials with automatic roll feeding up to 900mm width. Features dual heating zones, adjustable mould widths, and integrated cutting system for efficient production of thermoformed plastic components.
Key Specifications
- Brand Model: WM FC780E
- Max Roll Diameter: 1,200 mm
- Max Reel Winding Diameter: 600 mm
- Maximum Cut Size: 760 x 550 mm
- Type: Vacuum Thermoforming
Complete Specifications
| Type | Vacuum Thermoforming |
| Brand Model | WM FC780E |
| Compatible Materials | HIPS, PP, OPS, PET, PVC, ABS |
| Machine Feeding | Roll fed automatic |
| Sheet Width | 900 mm |
| Max Roll Diameter | 1,200 mm |
| Unwinding Type | Automatic |
| Mould Width Range | 290-780 mm |
| Mould Width With Pressing Device | 290-750 mm |
| Minimum Mould Width Height Gt 250mm | 250-570 mm |
| Minimum Mould Width Height Lt 250mm | 400-570 mm |
| Molding Depth Upwards | 130 mm |
| Molding Depth Downwards | 130 mm |
| Platen Stroke | 150 mm |
| Upper Mould Height Adjustment | 120 mm |
| Lower Mould Height Adjustment | 100 mm |
| Closure Force Per Platen | 30,000 daN |
| Individual Platen Motor Power | 11 kW |
| Heating Oven Length | 1,775 mm |
| Temperature Regulation | Yes |
| Top Heating Power | 50,050 W |
| Bottom Heating Power | 50,050 W |
| Maximum Cut Size | 760 x 550 mm |
| Total Platen Closure Force | 60,000 daN |
| Cutter Heating Plate Power | 7.8 kW |
| Cutter Motor Power | 7.5 kW |
| Max Semi Tooling Weight | 400 kg |
| Piling Dimensions | 760 x 550 mm |
| Lower Pan Motor Power | 2.2 kW |
| Max Reel Winding Diameter | 600 mm |
| Stations | 3 |
