UTECO CRYSTAL 808-150
Find similar machines
Flexotecnica 10 NG
| Brand | Flexotecnica |
|---|---|
| Colors | 10 colors |
| Printing width | 1200 mm |
| Type of equipment | Gearless |
UTECO CRYSTAL 808-150

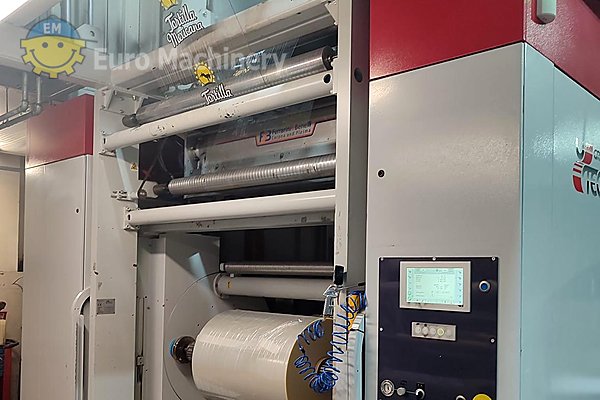

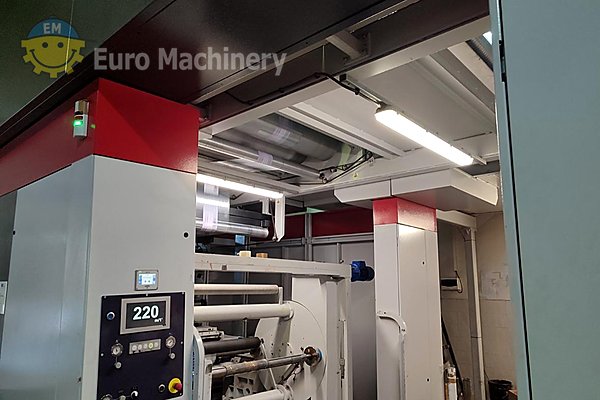

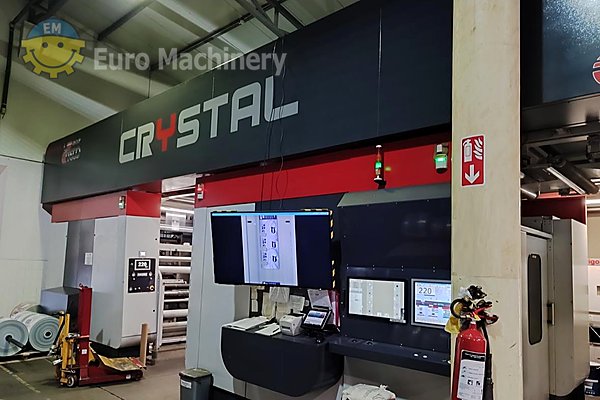

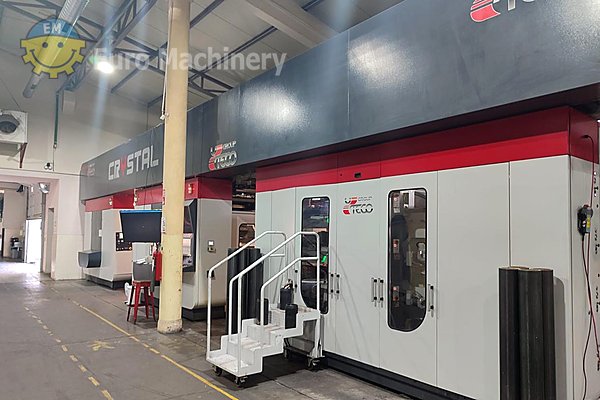

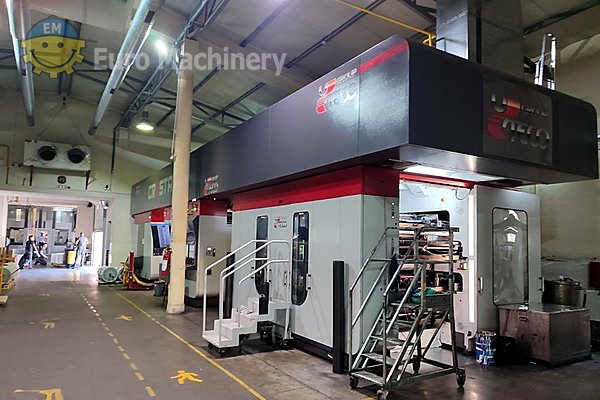

Professional 8-color gearless flexographic printing machine with 1500mm printing width and speeds up to 500 m/min. Features automatic turret unwinder/winder, gas drying system, and comprehensive print inspection capabilities for high-quality solvent-based ink printing on various plastic films.
Key Specifications
- Model: CRYSTAL 808-150
- Unwinder Max Roll Diameter: 1000 mm
- Winder Max Roll Diameter: 1000 mm
- Type: CI Flexo Printer
- Material Width: 1550 mm
Complete Specifications
| Brand | UTECO |
| Model | CRYSTAL 808-150 |
| Type | CI Flexo Printer |
| Configuration | Gearless |
| Number Of Colors | 8 (8+0) Solvent Based Inks |
| Printing Width | 1500 mm |
| Material Width | 1550 mm |
| Print Repeat Range | 400 mm – 850 mm |
| Mechanical Speed | Up to 500 m/min |
| Unwinder Type | Automatic double Turret unwinder (non-stop) |
| Unwinder Max Roll Diameter | 1000 mm |
| Unwinder Expanding Shafts | 3 inch |
| Winder Type | Automatic double turret winder |
| Winder Max Roll Diameter | 1000 mm |
| Winder Expanding Shafts | 3 inch |
| Drying System | Gas drying |
| Tension Range | 2 – 36 kg |
| Total Plate Thickness | 1.14 + 0.55 mm |
| Explosion Proof | Yes |
| Print Inspection | 100% Print Inspection with Grafikontrol Linex & Matrix Camera |
| Material Compatibility | PP (10-130 μm), BOPP (10-60 μm), LDPE (20-200 μm), CPP (20-70 μm), HDPE (15-130 μm), PET (12-40 μm), OPA (15-50 μm) |
| Anilox Rollers Included | 11 pieces (120 v21, 140 v15, 160 v12.3, 160 v11.7, 2×200 v10, 240 v9.7, 240 v8.21, 280 v8, 340 v5, 4×440 v3.7, 460 v3.8) |
| Sleeves Included | 28 pieces (400-780mm range) |
| Accessories | Edge guide Kamberoller, Corona treatment Ferrarini&Benelli, Reprint, Touch&Go printing units positioning, Tune&Go plate cylinders adjustment, Kiss&Go automatic pressure adjustment, Edge guide OPG with platform, Viscosymeter Gama G-26, Mount plate |
