UNION – RPET / Union ZP92-52
| Brand | |
|---|---|
| Output |
1.000 kg/h |
| Type of equipment |
Sheet extrusion |
Find similar machines
COEMTER TER-ROLL
UNION – RPET / Union ZP92-52

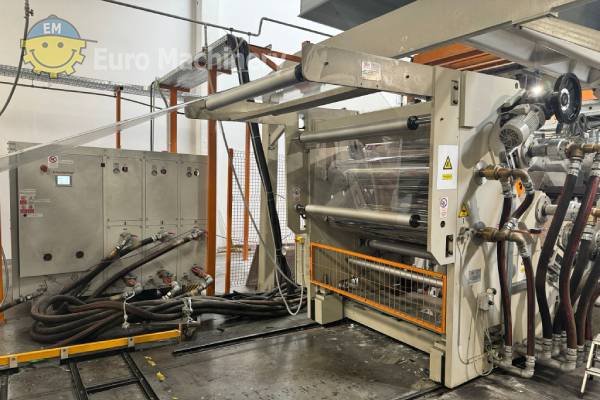

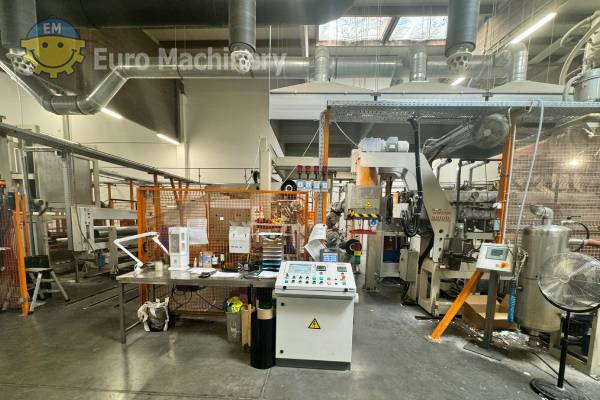

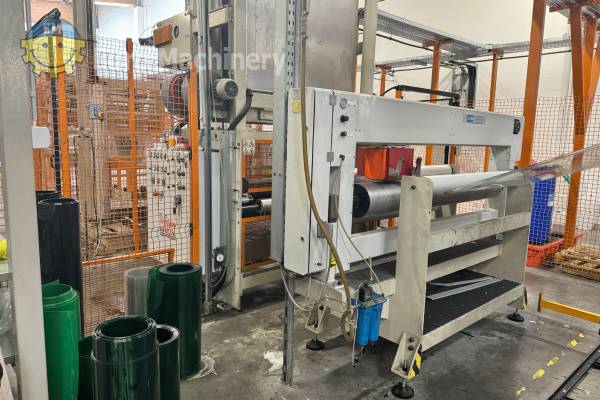

Sheet coextrusion line UNION
Sheet coextrusion Line UNION is a complete twin screw line with 3 venting extruder able to process RPET up to 1000 Kg/h Brand & Model: UNION – RPET / Union ZP92-52 Twin-Screw + Full Line Output: Up to 1,000 kg/h Materials to be processed: RPET Configuration: Triple-venting extruder, 3-layer co-extruded film Gravimetric Dosing & Feeding System:- 4 feeders for PET flakes: 1000 kg/h each
- 1 feeder for masterbatch: 0.2–25 kg/h
- 1 feeder for additive: 1–10 kg/h
- Includes stainless steel hopper, vacuum feeder, spiral chargers, and Big Bag dischargers.
- 5 units (3 on main extruder, 2 on co-extruder).
- Capacity: 200–300 m³/h, stainless steel construction
- Hydraulic system, dia. 125 mm, heating power: 8 kW.
- Max pressure: 175 bar.
- Capacity: 370 cc/rev, max 80 rpm.
- Motor: 20 kW, heaters: 6 kW.
- 1250 mm, useful width: 900–1100 mm.
- Thickness adjustable: 0.5–2.5 mm.
- 3 rollers (1400 mm width), hardened and chromed.
- Motorised cooling rolls and edge trimming knives.
- Single Screw Extruder TR 75 (L/D = 44:1, double venting, 70 kW motor).
- Gravimetric dosing for co-extruder.
- Additional gear pump (UGP 120), black-box for 3-layer configuration.
- Water Thermoregulation Station: 3 circuits, 450 l/min, heating devices 18 kW.
- Silicone Bath: 1400 mm width, 60 L tank.
- Accumulator: 40 m double comb.
- Web Winding Systems: 2 trolleys, max bobine dia. 1000 mm.
- Water Chiller: 200,000 Kcal/h capacity.
- Grinder: 50-30/XT-SL, 15 kW motor, 200 kg/h output.
- Computerised Control System: Pentium 4, PLC interface, recipe management.
- Thickness Gauge: Accuracy ±0.5 micron.
- Thermoforming Machine:
- Forming area 750 × 600 mm,
- 400 kg/h production
