Union R-PET Sheet
| Brand | Union |
|---|---|
| Type of equipment | Sheet extruder |
| Layers | 3 |
| Type of Film | PET sheet |
| Material width | 1100 mm |
Find similar machines
Union R-PET Sheet

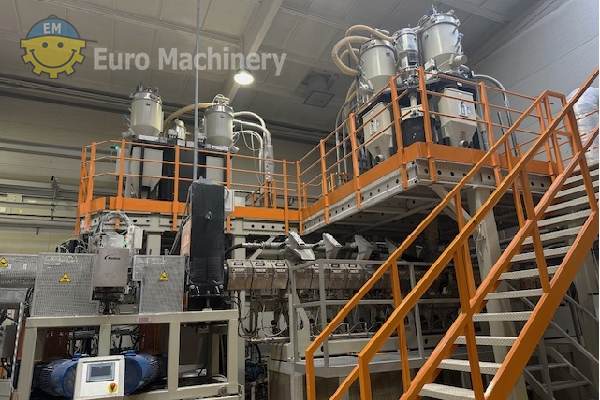

Union R-PET Sheet Co-extrusion line
Union R-PET Sheet Co-extrusion line for the production of R-PET Sheet. Twin screw extruder to process rPET, able to produce sheet width 800 mm to 1100 mm. Brand & Model: Union Sheet width: Useful width range: 800 ÷ 1100 mm Materials to be processed: rPET Material thickness: 0.12 to 1.2 mm Production: 600 kg/h ±10% Extruders:- Twin screw extruders ZP 71/52D and 42/48D
- Maximum output: 600 kg/h ±10%
- Net sheet width range: 800 – 1100 mm
- Slitting system: 4 driven circular knives with counterknives (shear cut type)
- Maximum number of sheet lines: 3
- Finished roll diameter: up to 1200 mm (6” core, 3” core)
- Sheet thickness range: 0.12 – 1.2 mm
- Maximum mechanical line speed: 65 m/min

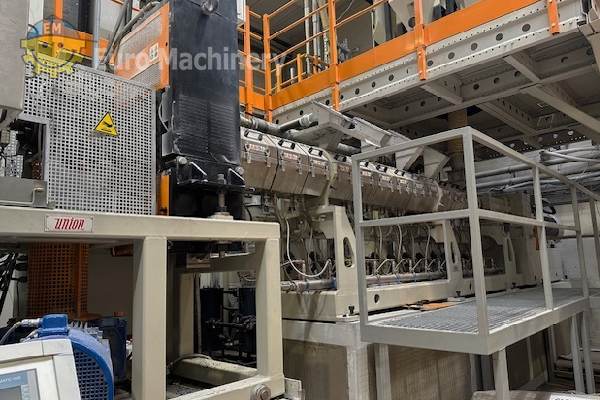

- Twin screw extruder ZP 71 x 52D with 4 ventings: 3 vacuum, 1 atmospheric
- Continuous flow screen changer, double plate, diameter 150 mm
- Autocleaning hydraulic screen changer (Kreyenborg), back-flush type, no interruption (Nordson)
- Metering gear-pump type UGP 280 Union

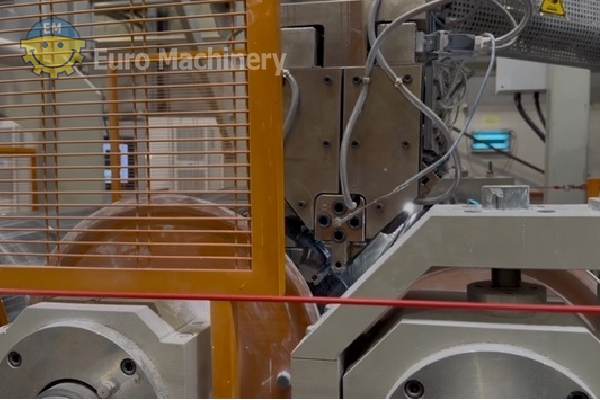

- Flat die L3AS/CR 950 PET/COIB with external deckels (Farcon)
- Flat die L3AS/CR 1250 PET/COIB with external deckels (Farcon)
- Temperature control cabinet – 30 zones (Union)
- Smoothing and cooling calender FO/1400 (Union)
- Water central station for calender temperature control (Industrial Frigo)
- Vertical silicon device with storage tank (Union)
- Pneumatic accumulator (Union)
- Electronic thickness measuring gauge system, type Essair
- Computerized line control and management system (Union)
- Black-box type SPN, 3 layers / 2 inlets (Farcon)

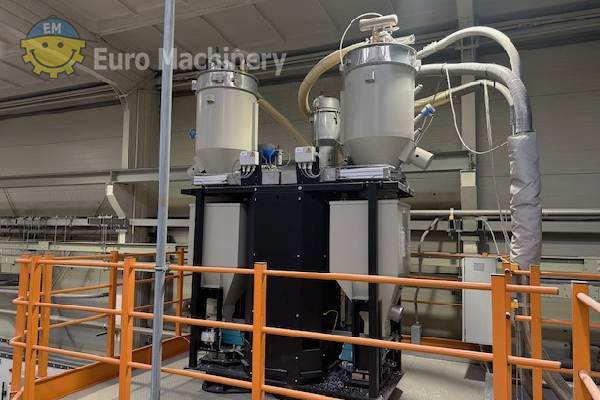

- Gravimetric dosing and feeding system for 6 components, extruder ZP 71X52 (Plastic System)
- Gravimetric dosing unit for 4 components, extruder ZP42/48 (Plastic System)

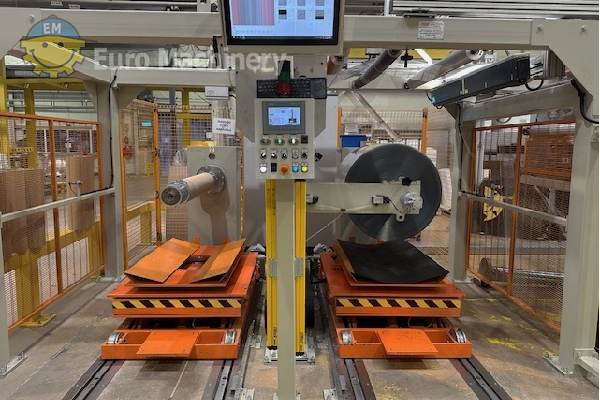

- Friction cantilever winding station, 2 units with unloading cradles
- Dryer for virgin PET, 300 kg/h
- Main electrical panel for all connections
