Sumitomo Demag Systec 650/1020-2300
Sumitono Demag 650 Injection press

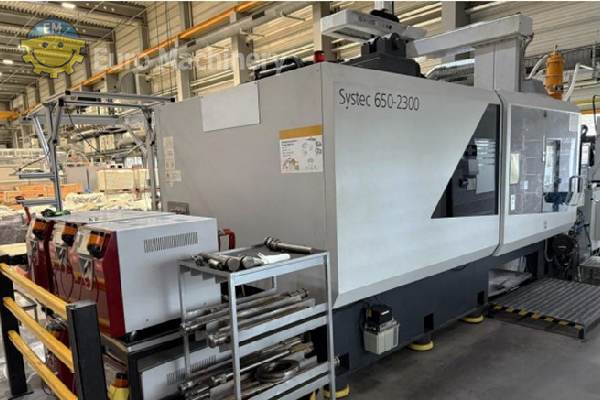

Sumitono Demag 650 Injection press is a heavy-duty plastic injection moulding machine used to produce large plastic components with molds, using about 650 ton of clamping force Brand & Model: Sumitomo (SHI) Demag Systec 650/1020-2300 Description: This production line integrates a 650-tonne injection moulding machine, a linear part-removal robot, thermal regulation systems, conveying and advanced automation equipment, including a hot stamping / film transfer station. The set constitutes a turnkey solution, ideally suited for highvolume production of technical or decorative plastic parts. Clamping force: 6,500 kN (650 t) Control unit: NC5 Plus Screw diameter: 60 mm L/D ratio: 20:1 Injection unit: 2300 Tie-bar spacing: 1,020 mm Power supply: 400 V / 50 Hz Additional information:- PLC operating hours ≈ 103,850 h
- Drive operating hours ≈ 50,890 h
- Heating hours ≈ 71,075 h
- Machine cycles ≈ 4,942,090
- Manufacturer Sepro Robotique / Sumitomo Demag
- Type S5X-35
- Max. pressure 7 bar
- Configuration Top-Entry — X, Y, Z axes with rotary axes
- Control Sepro Teach Pendant — integrated into NC5
- Quick mould change: Stäubli QMC122 magnetic clamping plates (x2)
- Quick couplings Stäubli — multi-coupling systems for media connections
- Industrial robot Stäubli TX/RX series — handling

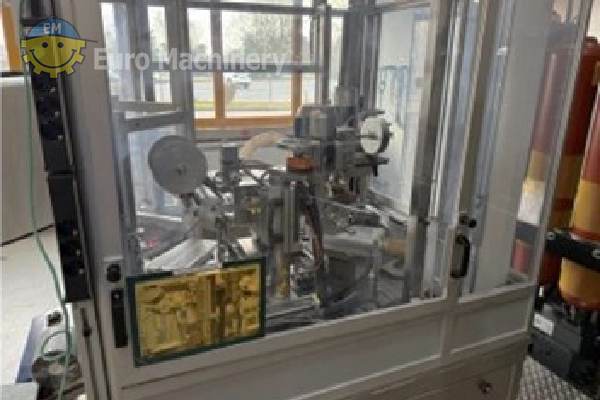

- Hot stamping station Film transfer with rotary indexing table + Siemens SIMATIC HMI
- Process monitoring: Priamus FillControl
- Hot runner controller: Gammaflux
- Ionisation / cleaning: Dr. Escherich ESUC 81
- Temperature controllers: Wittmann Tempro plus D140 — 10 to 12 units
- Cooling water distribution: Distribution manifolds with flow indicators
- Material conveyor: Koch Technik H565
- Metal separato:r Koch Technik SGM01
- Finished part outfeed: M.A.i — conveyor belt
- Runner / sprue outfeed: VTW — conveyor belt
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
