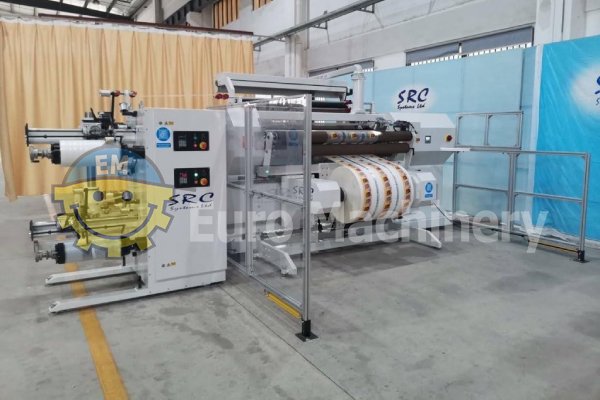

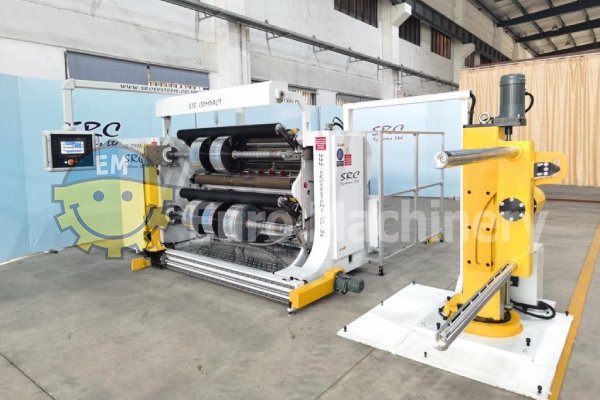

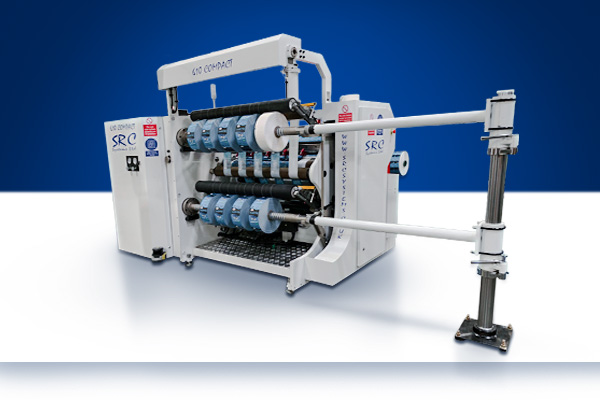

SRC 610 Compact Slitter
| Brand | |
|---|---|
| Type of equipment |
Slitter rewinder |
Find similar machines
SRC 810 Slitter Rewinder
SRC 645CS
SRC 610 Compact Slitter
SRC 610 Compact Slitter
SRC Slitting & Winding Systems — Model Compact 610 (1600 mm) SRC Compact 610 is a slitter SRC 610 is a slitter-rewinder for everyday converting, focused on short set-ups, clean edges, stable tension, and safe roll handling. It is ideal for slitting jobs in packaging, printing, labels, medical, and many other industrial converting applications.- Materials: films (PE, PP, PA, PS, PET…), metallised and aluminium films, laminates, shrink films, adhesive films, label stock, paper
- Thickness: 10–350 µm
- Web width: up to 1600 mm (standard minimum 800 mm; can be produced from 300 mm)
- Slitting width: from 25 mm (50 mm standard)
- Unwind: shaft-less pick-up from floor; Ø 1.000 mm; 1.000 kg; cores 76/152 mm; pneumatic dancer + EM brake
- Guiding: automatic line guiding; BST camera edge/line
- Slitting: shear and razor; motorised/automatic knife positioning
- Rewind: centre winding; differential; cores 76 mm; finished roll Ø 100–610 mm; load-cell tension control
- Trim removal: on-core spool + dual oscillating core-less trim winder
- Handling: finished roll push-off; roll lowering to pallet
- Speed: up to 500 m/min
- Printed and unprinted foils: PE, PP, PA, PS, PET and others
- Metallised films and aluminium films
- Laminates and shrink films
- Adhesive foils and films
- Label-stock films
- Paper and other flexible materials
- Web width (max): 1600 mm (minimum standard: 800 mm; can be specified down to ~300 mm)
- Slitting width: from 25 mm (50 mm standard; 25 mm with 25 mm rewind slip chucks)
- Line speed: up to 500 m/min
- Stand type: Shaft-less pick-up from the floor
- Max unwind diameter: Ø 1000 mm
- Max roll weight: 1,000 kg
- Core IDs: 76 mm and 152 mm
- Tension at unwind: pneumatic dancer with electro-magnetic brake, that keeps the material tension stable and smooth before slitting.
- Automatic line guiding
- Camera for edge/line control (BST)
- Methods: shear or razor
- Knife positioning: motorised / automatic for quick job change over
- Type: Centre winding with differential rewind (for even tension across lanes)
- Core ID: 76 mm
- Finished roll diameter: Ø 100–610 mm
- Rewind tension: load-cell feedback, fully automatic
- On-core trim spool (trims collected on a core)
- Dual oscillating core-less trim winder
- Finished roll push-off
- Lowering to pallet for simple removal
- Safety at unwind: safety light curtain
- Safety at rewind: dual-zone laser floor scanner
- Easy, operator-friendly operation
- Quick job changes
- Precise web-tension control
- Energy-saving components
- Solid mechanical parts for long service life
- Fast knife set-up with automatic knife positioning
- Priced to be competitive
- Mixed film/foil/paper jobs on one line
- Label stock and flexible packaging work
- Jobs that need repeatable recipes and stable tension
- Plants that want tidy trims and simple, safe roll handling
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
