SORTEX B2 DXDX MultiVision
| Brand |
|---|
Find similar machines
SORTEX B2 DXDX MultiVision

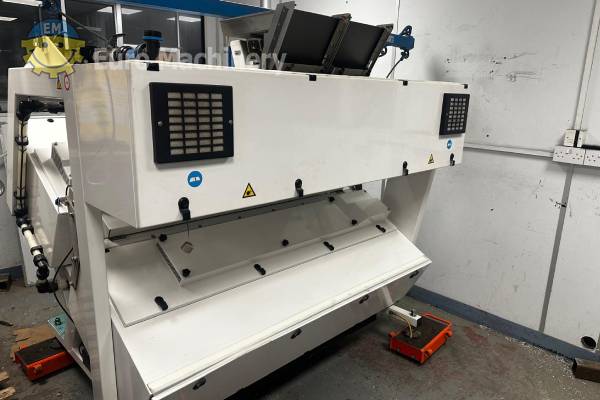

SORTEX B2 DXDX MultiVision Optical colour sorter machine
Sortex B2 Optical colour sorter machine to sorting plastic flakes in the recycling process. The sorting machine Sortex B2 is able to sorter plastrics regrind from 2 to 14 mm flakes or regrind . The Sortex B2 combines three visible wavelengths and detects not only light and dark defects but also other colour varitions. Brand & Model: SORTEX B2 DXDX MultiVision Used for: Sorting plastic flakes Areas of application: Recycling Method of operation:- Optical Colour Sorter for Plastics Regrind (2 – 14mm flakes or regrind)
- Advanced Inspection System The SORTEX B MultiVision™ combines three visible wavelengths (RGB) and detects not only light and dark defects but also other colour variations.
- LED Foreground Lighting The optical sorter machine uses LED visible lighting. Sorters equipped with standard InGaAs technology use combination of LED and Broad-spectrum Xenon IR lighting. PROsize™ Technology detects foreign material and defects which are the same colour as the good product by size (undersize or oversize). This proprietary Bühler technology is available on the MultiVision™ variant.
- Automated Background The sorters use an automated background reference which adjusts as light levels vary delivering consistent sorting performance.
- Vibratory feeders with low voltage drive coils and digital feedback control to give reliable operation and consistent feed over time. Customised feeding system uses food-contact safe anodized chutes for the specific application. Flexible sorting configurations also include simultaneous re-sort capability to maximise recovery of good product by achieving the highest reject concentration.
- Integrated Feed Regulation
- Dust Extraction Manifold (Receptacle)
- Rejection System: Long-life, Serviceable, High Resolution
- Ejectors
- SmartEject™ Technology
- Sealed Optical and Control Cabinets
- Ambient Temperature Range from 32°F to 113°F (0°C and 45°C).
- Auto-calibration and Product Tracking
- Automatic Wiping
- Colour 12.1″ Touch-screen User Interface
- SORTEX ProSortXTM software
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
