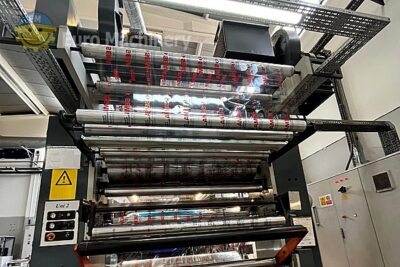

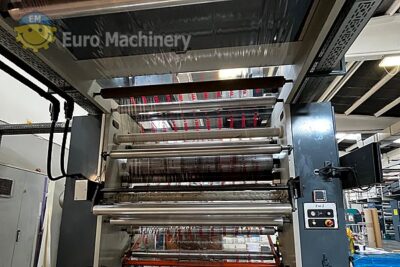

Promatek Firat S 6-colour CI flexo printer
Schiavi Rigel 228 C.N.C.

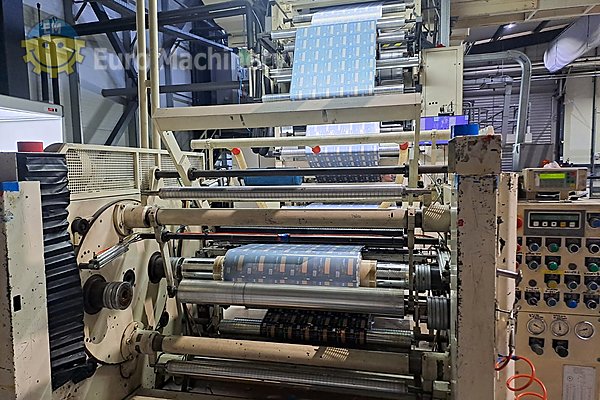

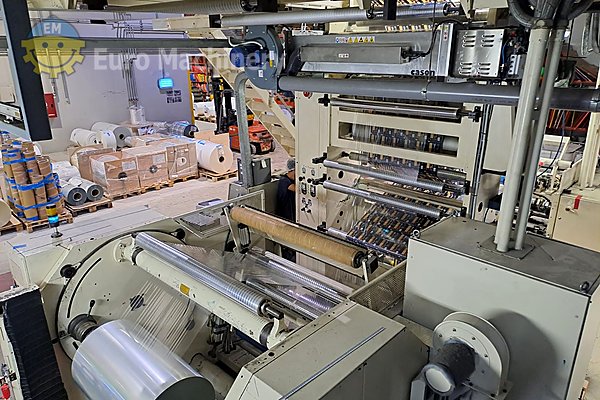

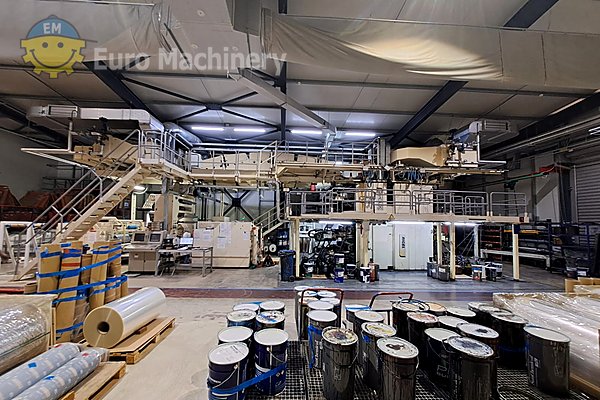

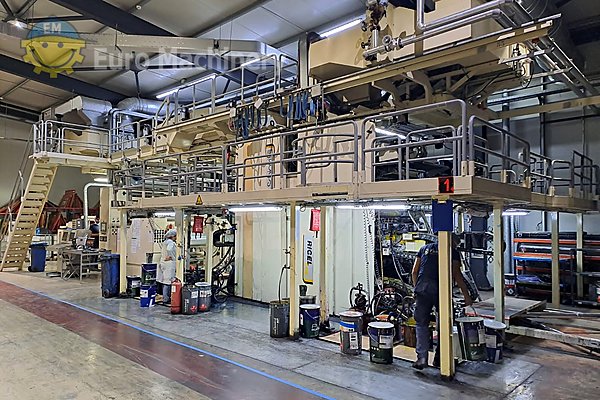

Schiavi BOBST Rigel
Achieve flawless dual-side printing at speeds up to 300 m/min with the Schiavi BOBST Rigel 8-color flexo press. Its advanced geared technology and thermal oil drying system deliver exceptional print quality on diverse materials while automatic flying splice systems ensure uninterrupted production efficiency.
Key Specifications
- Maximum Roll Diameter: 800 mm
- Material Width: 1320 mm
- Unwinder Type: Double Turret Automatic Flying Splice
- Winder Type: Double Turret Automatic Flying Splice
- Mechanical Speed: Up to 300 m/min
Complete Specifications
| Number of Colors | 8 colors (4+4) |
| Printing Width | 1290 mm |
| Material Width | 1320 mm |
| Print Repeat Range | 430 mm – 1200 mm |
| Mechanical Speed | Up to 300 m/min |
| Unwinder Type | Double Turret Automatic Flying Splice |
| Winder Type | Double Turret Automatic Flying Splice |
| Maximum Roll Diameter | 800 mm |
| Expanding Shafts | 2 with diameter 76 mm + 2 with diameter 152 mm |
| Expanding Shaft Length | 1320 mm |
| Pumps | 8 pneumatic pumps |
| Drying System | Thermal Oil drying |
| Inking System | Ceramic Anilox + Chambered Doctor Blades |
| Anilox Sleeves | 23 pcs various line screens |
| Printing Sleeves | 40 pcs various sizes |
| Print Cylinders | 8 for sleeves >700mm repeat |
| Adaptors | 8 for sleeves >900mm repeat |
| Positioning System | Motorized print station positioning |
| Registration Control | Motorized remote controlled longitudinal & side registers |
| Temperature Control | Chiller thermoregulator |
| Printing Capability | Turning Cross Bar for both sides printing |
| Material Compatibility | LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO |
