MXCJ-500 Semi-Automatic Aluminum Frame
| Weight | 3550 kg |
|---|---|
| Dimensions | 3000 × 2000 × 2200 cm |
Find similar machines
MXCJ-500 Semi-Automatic Aluminum Frame

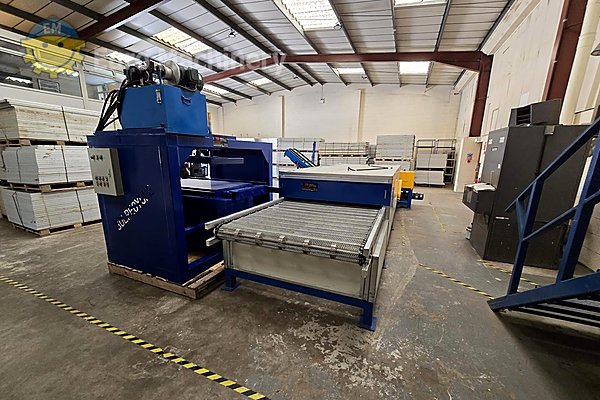

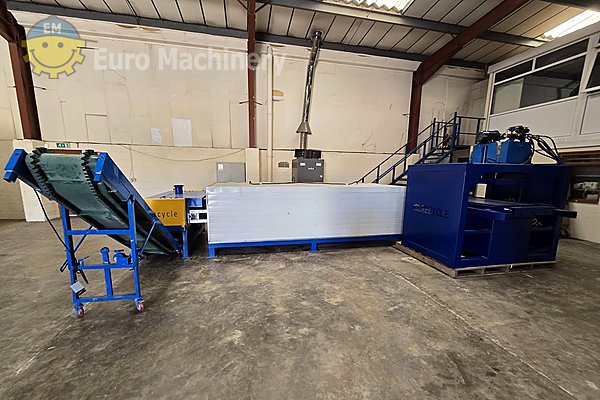

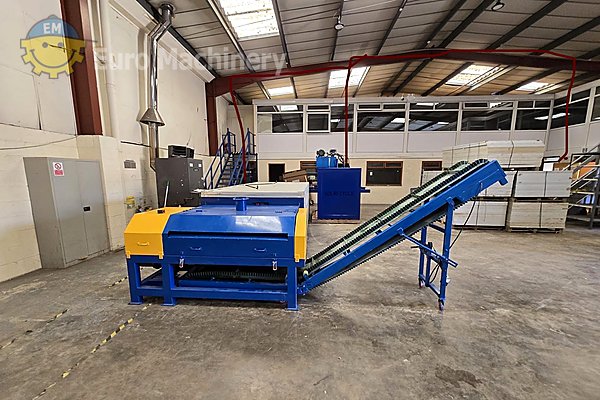

Advanced semi-automatic recycling system for photovoltaic panel processing that efficiently separates aluminum frames and glass from solar panels. Features integrated heating and glass removal capabilities with output up to 1000-1200 kg/h, designed for high-purity material recovery.
Key Specifications
- Output Capacity: 1000-1200 kg/h
- Glass Remover Capacity: 1000-1200 kg/h
- Hydraulic Cylinder Diameter: 630 mm
- Application Size Max: 1300 x 2400 mm
- Application Size Min: 950 x 1700 mm
Complete Specifications
| Equipment Type | Semi-automatic aluminum frame & solar panel glass separator |
| Output Capacity | 1000-1200 kg/h |
| Total Installed Power | 66 kW (4 kW + 45 kW + 17 kW) |
| Motor Power | 4 kW |
| Hydraulic Cylinder Diameter | 630 mm |
| Hydraulic Cylinder Stroke | 150-200 mm |
| Number Of Hydraulic Cylinders | 5 |
| Pressure Plate Method | Hydraulic |
| Frame Dismantler Weight | 1000-2000 kg |
| Frame Dismantler Dimensions | 2300 x 2000 x 2200 mm |
| Application Size Max | 1300 x 2400 mm |
| Application Size Min | 950 x 1700 mm |
| Heating Length | 3000 mm |
| Heating Width | 2000 mm |
| Feeder Length | 2000 mm |
| Heating Machine Power | 45 kW |
| Heating Machine Weight | 1450 kg |
| Glass Remover Capacity | 1000-1200 kg/h |
| Glass Remover Power | 17 kW |
| Glass Remover Dimensions | 3000 x 1300 x 1200 mm |
| Glass Remover Weight | 1100 kg |
| Glass Removal Rate | 90%+ |
| Conveyor Type | Stainless steel mesh belt |
| Heating Method | Electric heating |
