Krauss Maffei 80 – 180 CX

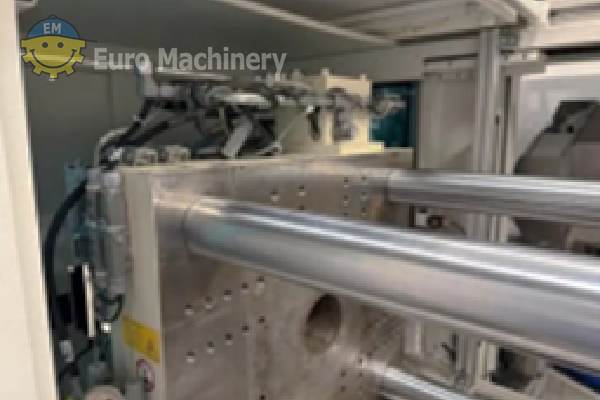

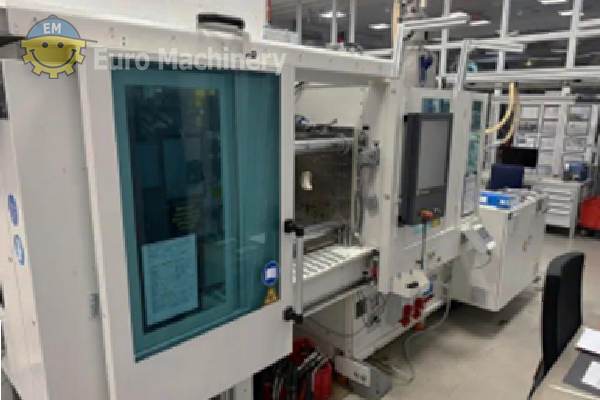

Krauss Maffei 80 – 180 CX Injection moulding machine

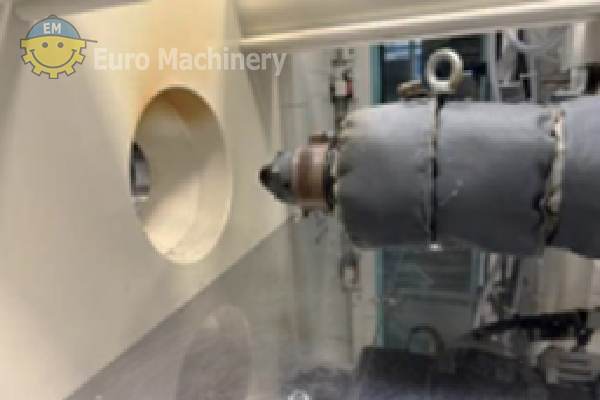

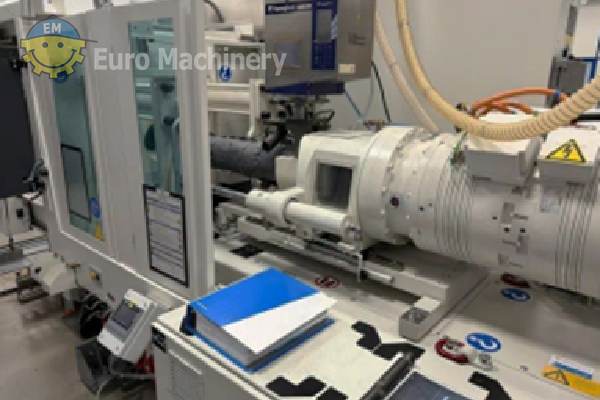

Krauss Maffei 80 – 180 CX Injection moulding machine is a medium size plastic injection press used in factories to mass-produce plastic parts with molds. Injection press featuring an 80 tonnes clamping force, screw diameter 30 mm. Brand & Model: KraussMaffei 80-180 CX Clamping force: 80 tonnes Screw diameter: 30 mm Max. injection pressure: 2 025 bar Max. barrel temperature: 375 °C Power supply: 3 × 400 V / 50 Hz Rated current: 248 A Upstream fuse: 250 A Injection nozzle: Ø30 mm, max temp 375 °C Notes:- Plasticising barrel Thermally insulated
- Electrical cabinet Integrated into machine
- Operator interface KraussMaffei control box (Teach Pendant) included
- Model: Motoman MH24
- Payload 24 kg
- Control cabinet DX200 — incluse
- Power supply 3 × 400 V / 50-60 Hz
- Model Motoman HP20D — Type YR-HP0020D-B00
- Payload 20 kg
- Cabinet power 2,0 kVA — 3-ph 400/415/440 V, 50/60 Hz
- Control cabinet DX100 — incluse
- Model Motoman MH6 — Type YR-MH00006-B00 (×2 units)
- Payload 6 kg — Robot mass 130 kg
- Max. pneumatic pressure 490 kPa
- Power 1,5 kVA — AC 400 V, 3-phase 50/60 Hz
- Control cabinet DX100 — incluse (×2)

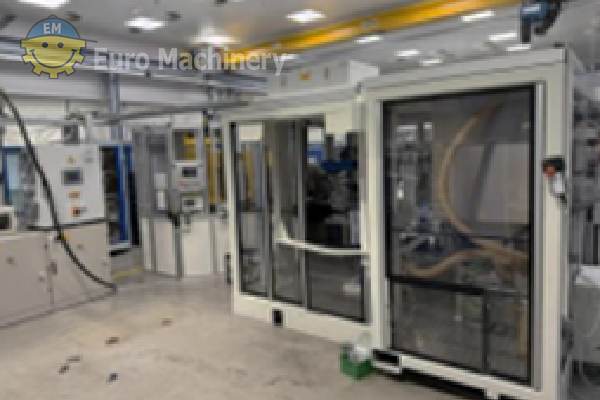

- KraussMaffei Automation
- Reference IR 1200 F/M
- Integrated equipment Yaskawa robots, SSR laser, Beltron UV, Dr. Escherich cleaning
- Robot Technology GmbH — D-63762 Großostheim
- Type Modulare Roboterzelle — Project no. 15.09.031.40
- Power supply 3 × 400 V / 230 V, 50 Hz / N / PE
- Upstream fuse 3P × 50 A
- Power absorbée 20 kVA
- Equipment Rundtakttisch rotary table + integrated camera inspection
- Rotary table + camera inspection
- SSR FLACS.MARK 30W laser
- Beltron UV
- Simco ionization
- Dr. Escherich — IOCLEAN + RollerClean
- FarragTech CARD 20S — Granulate Dryer + Distribution
- Schuma PRO-ZR-1500 conveyors
- Temperature control
- Full peripherals → 2 complete installations side by side — all peripherals included
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
