Krauss Maffei 350-3000X
| Brand | |
|---|---|
| Type of equipment |
Injection Moulding |
| Clamping force |
3500 kN |
| Screw Diameter |
80 mm |
Find similar machines
LEMO Intermat
Krauss Maffei 350-3000X

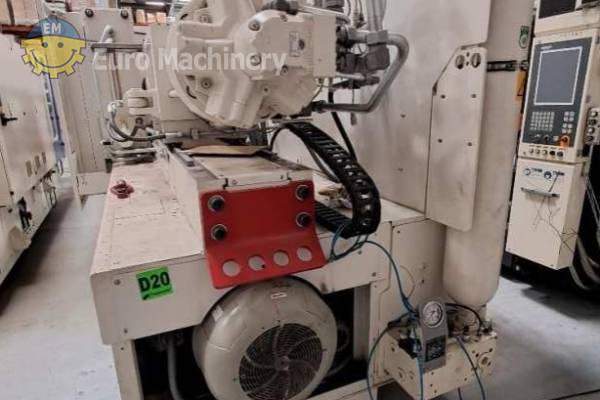

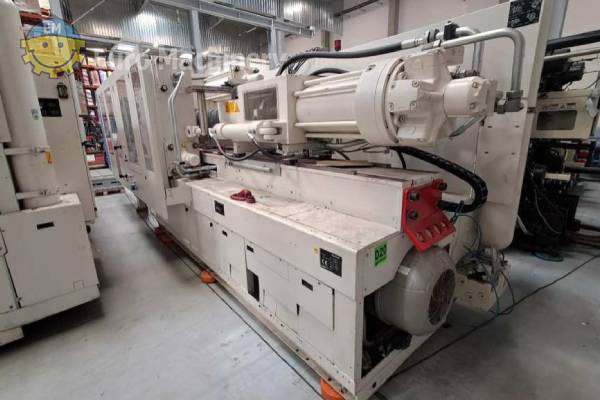

Krauss Maffei Injection Molding Machine
Kraus Maffei Injection Molding Machine, known for its robust hydraulic clamping system . This injection moulding machine has a 3500 NM clamping force, platen size 1060 x 1095 mm. Brand & Model: Krauss Maffei 350-3000X Screw diameter: 80 mm Clamping force: 350 tons (3500 kN) Shot weight: 1464 grams Injection volume: 1609 cm³ Additional information:- Distance Between Tie-Bars (H): 710 mm
- Distance Between Tie-Bars (V): 710 mm
- Platen Size (H): 1060 mm
- Platen Size (V): 1095 mm
- Screw Diameter: 80 mm
- Tie-Bar Diameter: 160 mm
- Mould Height (Max): 380 mm
- Daylight Between Platens (Max): 1300 mm
- Opening Stroke (Max): 920 mm
- Ejector Force: 95 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Dry Cycle (S): 2.3 s
- Injection Pressure: 1855 bar
- Injection Rate: 478 cm³/s
- Nozzle Force (Max): 13.15 ton
- Nozzle Stroke (Max): 600 mm
- Heating Zones: 7
- Heating Capacity: 36 kW
- Oil Tank Capacity: 700 l
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Krauss Maffei Injection Molding Machine
Kraus Maffei Injection Molding Machine, known for its robust hydraulic clamping system . This injection moulding machine has a 3500 NM clamping force, platen size 1060 x 1095 mm. Brand & Model: Krauss Maffei 350-3000X Screw diameter: 80 mm Clamping force: 350 tons (3500 kN) Shot weight: 1464 grams Injection volume: 1609 cm³ Additional information:- Distance Between Tie-Bars (H): 710 mm
- Distance Between Tie-Bars (V): 710 mm
- Platen Size (H): 1060 mm
- Platen Size (V): 1095 mm
- Screw Diameter: 80 mm
- Tie-Bar Diameter: 160 mm
- Mould Height (Max): 380 mm
- Daylight Between Platens (Max): 1300 mm
- Opening Stroke (Max): 920 mm
- Ejector Force: 95 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Dry Cycle (S): 2.3 s
- Injection Pressure: 1855 bar
- Injection Rate: 478 cm³/s
- Nozzle Force (Max): 13.15 ton
- Nozzle Stroke (Max): 600 mm
- Heating Zones: 7
- Heating Capacity: 36 kW
- Oil Tank Capacity: 700 l
