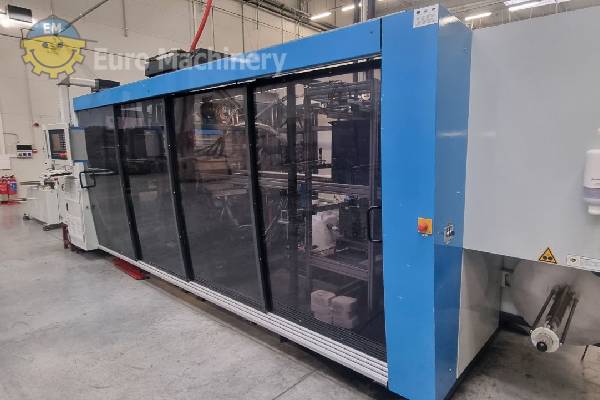

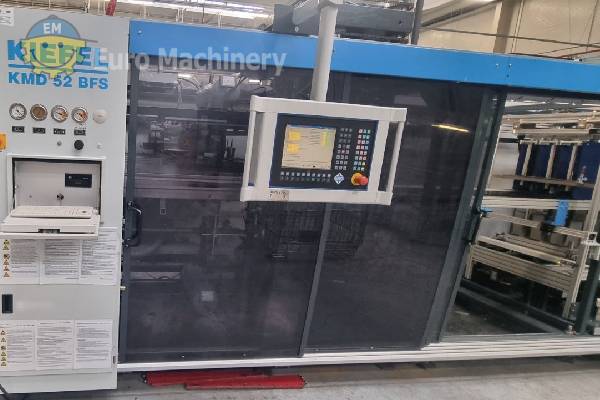

KIEFEL KMD52BFS Thermoforming line

Thermoforming line KIEFEL KMD52BFS designed for processing various plastics with a maximum forming area of 520 x 400 mm and material thickness up to 1200 microns. It includes forming, in‑mould cutting, stacking, and waste wind‑up stations
Brand & Model: KIEFEL KMD52BFS Materials to be processed: HDPE, PST, PVC, ABS, ABS+PMMA, PMMA, PC, ASA, Acryl and all laminated and coextruded materials. Min and max material thickness: 200 – 1200 microns. Max width: 570mm Machine Feeding: Unwinding station. Preheating station KVH 83 Max forming area: 520 x 400 mm Forming depth:
  • Tool dimensions maximum 540 x 420 mm
  • Height of formed part positive 120 mm
  • Height of formed part negative 120 mm
Thermoforming machine:
  • Forming station for combined forming and in-mould cutting by steel rule knives
  • Stacking station, incl. counting and stack ejection; A/B Stacking function by second ejector drive, pneumatically driven
  • Wind-up station for skeletal waste, motorized
Vacuum pump: 100 m³/h Air pressure: 6 bars Machine in good condition. Please contact us to request a quote or arrange an inspection visit.

KIEFEL KMD52BFS Thermoforming line

Thermoforming line KIEFEL KMD52BFS designed for processing various plastics with a maximum forming area of 520 x 400 mm and material thickness up to 1200 microns. It includes forming, in‑mould cutting, stacking, and waste wind‑up stations
Brand & Model: KIEFEL KMD52BFS Materials to be processed: HDPE, PST, PVC, ABS, ABS+PMMA, PMMA, PC, ASA, Acryl and all laminated and coextruded materials. Min and max material thickness: 200 – 1200 microns. Max width: 570mm Machine Feeding: Unwinding station. Preheating station KVH 83 Max forming area: 520 x 400 mm Forming depth:
  • Tool dimensions maximum 540 x 420 mm
  • Height of formed part positive 120 mm
  • Height of formed part negative 120 mm
Thermoforming machine:
  • Forming station for combined forming and in-mould cutting by steel rule knives
  • Stacking station, incl. counting and stack ejection; A/B Stacking function by second ejector drive, pneumatically driven
  • Wind-up station for skeletal waste, motorized
Vacuum pump: 100 m³/h Air pressure: 6 bars Machine in good condition. Please contact us to request a quote or arrange an inspection visit.
  • I would like to know the price of this machine
We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.
  • Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
