STARLINGER STAREX 1500
| Brand | |
|---|---|
| Type of equipment |
Extrusion line for tape |
| Die |
1800 mm |
| Working Width |
1650 mm |
Find similar machines
Roll Bag Machine
LEMO Intermat
STARLINGER STAREX 1500
Extrusion line for tapes Starlinger Starex
Extrusion line for tapes Starlinger Starex with twin winder. Extruder for tapes to be used in woven sacks, die with 1800 mm, working width up to 1650 mm. Brand & Model: STARLINGER STAREX 1500 (Twin winder) Type: Extrusion line for tapes to be used in woven sacks Technical details: Tape stretching Line starEX 1500ES 120/33TD Die width: 1800 mm Operating speed max.: 520 m/min Working width net up to: 1650 mm Consisting of:- VACUUM FEEDER AND ELLIPTIC DOSING UNIT EXTRUDER
- Extruder Type: E 120.33 TD
- Screw diameter: 120 mm
- Screw length: 33 D
- Screw speed: 0 – 160 rpm
- No. of heating zones: 8
- Heating capacity approx.: 90 kW
- SMARTTRONIC PROCESSOR CONTROL FOR TAPE STRETCHING LINE
- FLAT DIE with reversible die lip
- Die width: 1800 mm
- Die lip aperture: 0.1-1 mm
- Heating capacity approx.: 31,2 kW
- Control zones: 6
- EDGE TRIM RECYCLING DIRECT INJECTION
- WATER QUENCH WITH INTEGRATED HOLDING UNIT approx. 2300 lt. capacity including pump and heat exchanger

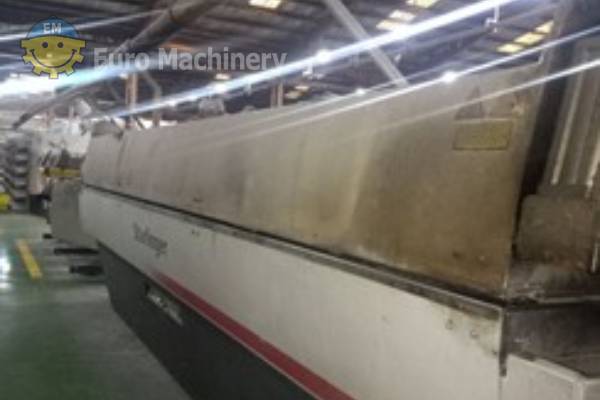

- HOT AIR OVEN
- Frequency controlled circulation fans, air speed up to 20 m/sec.
- Air flow regulation via smartTRONIC
- Upper part to be raised pneumatically in two steps
- Length of heating channel 5,8 m
- Air lock curtain preventing cold air from entering the oven during refeeding of tapes

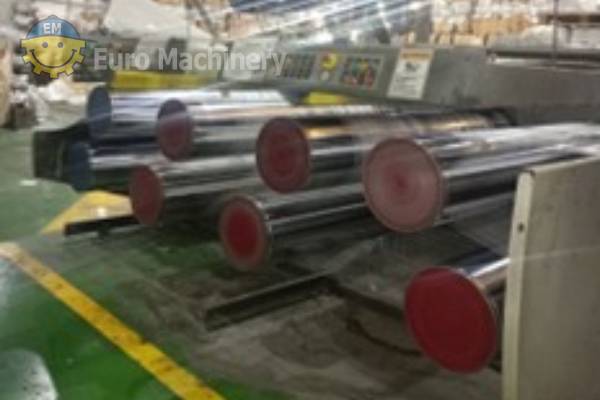

- STRETCHING SECTION WITH 6 GODETS INCL. PROTECTING COVER AND HOT OIL SYSTEM
Consisting of:
- 1 standard godet,
- 3 heated godets,
- 2 cooling godets,
- nip rolls,
- central hot oil unit,
- godet diameter 350mm, including hoses and fittings and thermostatic temperature control, with 2 frequency controlled threephase drive without gearing, rated power 19 kW, and additional 1 frequency controlled three-phase drive without gearing, rated 9,5 kW, for individual adjustment of the annealing ratio , static electricity eliminator, hot oil heating device 60kW
- TAPE EXTRACTION – VACUUM SYSTEM

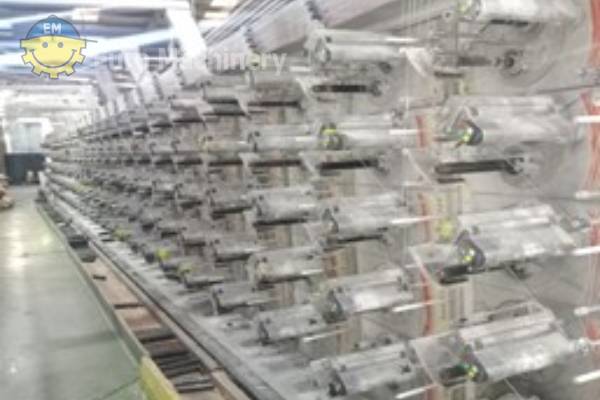

- Winding machine twinTAPE 200LX with 280 heads
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Extrusion line for tapes Starlinger Starex
Extrusion line for tapes Starlinger Starex with twin winder. Extruder for tapes to be used in woven sacks, die with 1800 mm, working width up to 1650 mm. Brand & Model: STARLINGER STAREX 1500 (Twin winder) Type: Extrusion line for tapes to be used in woven sacks Technical details: Tape stretching Line starEX 1500ES 120/33TD Die width: 1800 mm Operating speed max.: 520 m/min Working width net up to: 1650 mm Consisting of:- VACUUM FEEDER AND ELLIPTIC DOSING UNIT EXTRUDER
- Extruder Type: E 120.33 TD
- Screw diameter: 120 mm
- Screw length: 33 D
- Screw speed: 0 – 160 rpm
- No. of heating zones: 8
- Heating capacity approx.: 90 kW
- SMARTTRONIC PROCESSOR CONTROL FOR TAPE STRETCHING LINE
- FLAT DIE with reversible die lip
- Die width: 1800 mm
- Die lip aperture: 0.1-1 mm
- Heating capacity approx.: 31,2 kW
- Control zones: 6
- EDGE TRIM RECYCLING DIRECT INJECTION
- WATER QUENCH WITH INTEGRATED HOLDING UNIT approx. 2300 lt. capacity including pump and heat exchanger
- HOT AIR OVEN
- Frequency controlled circulation fans, air speed up to 20 m/sec.
- Air flow regulation via smartTRONIC
- Upper part to be raised pneumatically in two steps
- Length of heating channel 5,8 m
- Air lock curtain preventing cold air from entering the oven during refeeding of tapes
- STRETCHING SECTION WITH 6 GODETS INCL. PROTECTING COVER AND HOT OIL SYSTEM
Consisting of:
- 1 standard godet,
- 3 heated godets,
- 2 cooling godets,
- nip rolls,
- central hot oil unit,
- godet diameter 350mm, including hoses and fittings and thermostatic temperature control, with 2 frequency controlled threephase drive without gearing, rated power 19 kW, and additional 1 frequency controlled three-phase drive without gearing, rated 9,5 kW, for individual adjustment of the annealing ratio , static electricity eliminator, hot oil heating device 60kW
- TAPE EXTRACTION – VACUUM SYSTEM
- Winding machine twinTAPE 200LX with 280 heads
