ENGEL VICTORY 500/120 SPEX ECODRIVE CC300
| Brand | |
|---|---|
| Clamping force |
1200 kN |
| Screw Diameter |
40 mm |
Find similar machines
ENGEL VICTORY 500/120 SPEX ECODRIVE CC300

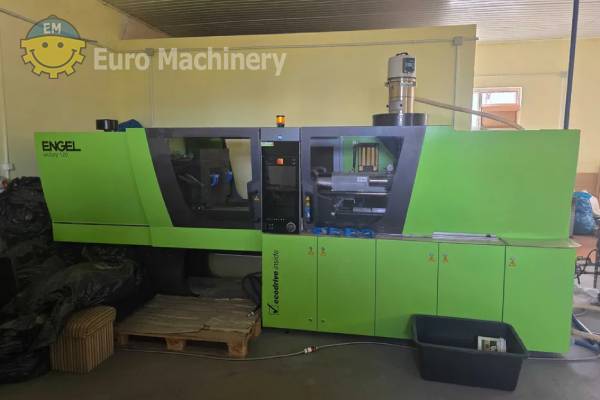

ENGEL VICTORY 500/120 SPEX ECODRIVE CC300 injection moulding machine
This injection moulding machine is designed for processing PP and TPA materials, featuring a 40 mm screw diameter and a clamping force of 120 tons. Brand & Model: ENGEL VICTORY 500/120 SPEX, ECODRIVE, CC300 Material: PP, TPA Screw diameter: 40 mm L/D ratio: 20.0 Clamping force: 120 tons (1200kN) Stroke volume: Approx. 200 cm³ Control: Euromap 14 Weight: 6800 kg Working hours: 12.188 hours Additional information:- Screw stroke: 200 mm
- Max injection capacity: 251 cm
- Screw speed: 400 min⁻¹
- Screw torque: 520 Nm
- Recovery rate (3-zone screw): 31.7 g/s
- Recovery rate (barrier screw): 38.4 g/s
- Injection rate: 197 cm³/sec
- Injection pressure (regenerative): 1300 bar
- Injection pressure (max): 2200 bar
- Nozzle stroke: 300 mm
- Nozzle contact pressure: 52 kN
- Heating zones incl. nozzle: 4
- Heating wattage: 9.3 kW
- Opening stroke+cylinder tolerance: 507 mm
- Distance between plates: 800 mm
- Minimum mold height: 300 mm
- Platen size (H × V): 740 × 680 mm
- Max mold weight (moving platen): 800 kg
- Max mold weight (stationary platen): 800 kg
- Floral water tubes moulds available, sold separately
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
ENGEL VICTORY 500/120 SPEX ECODRIVE CC300 injection moulding machine
This injection moulding machine is designed for processing PP and TPA materials, featuring a 40 mm screw diameter and a clamping force of 120 tons. Brand & Model: ENGEL VICTORY 500/120 SPEX, ECODRIVE, CC300 Material: PP, TPA Screw diameter: 40 mm L/D ratio: 20.0 Clamping force: 120 tons (1200kN) Stroke volume: Approx. 200 cm³ Control: Euromap 14 Weight: 6800 kg Working hours: 12.188 hours Additional information:- Screw stroke: 200 mm
- Max injection capacity: 251 cm
- Screw speed: 400 min⁻¹
- Screw torque: 520 Nm
- Recovery rate (3-zone screw): 31.7 g/s
- Recovery rate (barrier screw): 38.4 g/s
- Injection rate: 197 cm³/sec
- Injection pressure (regenerative): 1300 bar
- Injection pressure (max): 2200 bar
- Nozzle stroke: 300 mm
- Nozzle contact pressure: 52 kN
- Heating zones incl. nozzle: 4
- Heating wattage: 9.3 kW
- Opening stroke+cylinder tolerance: 507 mm
- Distance between plates: 800 mm
- Minimum mold height: 300 mm
- Platen size (H × V): 740 × 680 mm
- Max mold weight (moving platen): 800 kg
- Max mold weight (stationary platen): 800 kg
- Floral water tubes moulds available, sold separately
