Ref: 3724

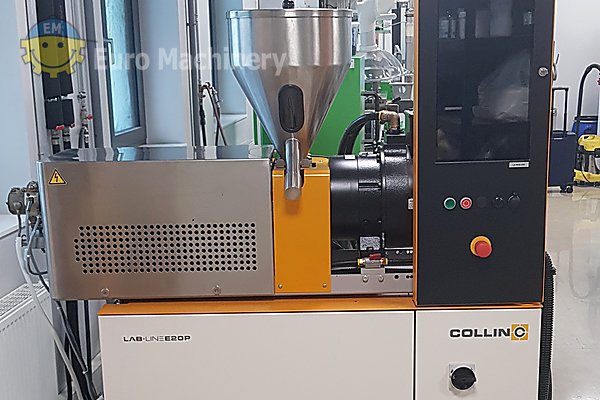

Collin E20P x 30D

Weight350 kg
Dimensions1400 × 500 × 1600 cm
Brand
Screw Diameter20 mm

Find similar machines

Share this machine

Professional-grade monoscrew extruder designed for processing polyethylene and polypropylene materials with a maximum throughput of 6 kg/h. Features a 20mm screw diameter with 30:1 L/D ratio and 6 heating zones for precise temperature control.

Key Specifications

  • Model: Collin E20P x 30D
  • Screw Diameter Mm: 20
  • Machine Type: Monoscrew Extruder
  • Max Screw Speed Rpm: 280
  • L D Ratio: 30:1

Complete Specifications

Machine Type Monoscrew Extruder
Model Collin E20P x 30D
Screw Diameter Mm 20
L D Ratio 30:1
Max Throughput Kg H 6
Hopper Volume Liters 19
Drive Power Kw 3.3
Max Screw Speed Rpm 280
Torque Nm 113
Heating Zones 6
Standard Pressure Bar 405
Extrusion Height Mm 1100
Materials Compatible LLDPE, LDPE, LLD, HDPE, PP
Operation Hours 266

Interested in this equipment?

Contact us for pricing, availability, and additional information.
The Collin E20P x 30D is a robust monoscrew extruder, specifically engineered for processing LLDPE, LDPE, LLD, HDPE, PP and similar thermoplastic materials. This industrial-grade machine delivers consistent extrusion performance with a maximum throughput of approximately 6 kg/h, depending on material type and feeding rate. The extruder features a 20mm screw diameter with an optimal 30:1 length-to-diameter ratio, ensuring excellent mixing and material processing capabilities. Equipped with a 19-liter hopper capacity, the machine provides convenient material feeding for continuous operation. The drive system delivers 3.3 kW of power with a maximum screw speed of 280 rpm and a torque rating of 113 Nm, enabling reliable and efficient material processing. The machine incorporates 6 independent heating zones for precise temperature management throughout the extrusion process, with a standard operating pressure of 405 bar. With an extrusion height of 1100mm and compact overall dimensions, this extruder is suitable for various production environments. The machine has been well-maintained with only 266 operation hours recorded and is reported to be in good working condition. This equipment represents a quality investment for plastic processing operations requiring reliable monoscrew extrusion capabilities.

Professional-grade monoscrew extruder designed for processing polyethylene and polypropylene materials with a maximum throughput of 6 kg/h. Features a 20mm screw diameter with 30:1 L/D ratio and 6 heating zones for precise temperature control.

Key Specifications

  • Model: Collin E20P x 30D
  • Screw Diameter Mm: 20
  • Machine Type: Monoscrew Extruder
  • Max Screw Speed Rpm: 280
  • L D Ratio: 30:1

Complete Specifications

Machine Type Monoscrew Extruder
Model Collin E20P x 30D
Screw Diameter Mm 20
L D Ratio 30:1
Max Throughput Kg H 6
Hopper Volume Liters 19
Drive Power Kw 3.3
Max Screw Speed Rpm 280
Torque Nm 113
Heating Zones 6
Standard Pressure Bar 405
Extrusion Height Mm 1100
Materials Compatible LLDPE, LDPE, LLD, HDPE, PP
Operation Hours 266

Interested in this equipment?

Contact us for pricing, availability, and additional information.
The Collin E20P x 30D is a robust monoscrew extruder, specifically engineered for processing LLDPE, LDPE, LLD, HDPE, PP and similar thermoplastic materials. This industrial-grade machine delivers consistent extrusion performance with a maximum throughput of approximately 6 kg/h, depending on material type and feeding rate. The extruder features a 20mm screw diameter with an optimal 30:1 length-to-diameter ratio, ensuring excellent mixing and material processing capabilities. Equipped with a 19-liter hopper capacity, the machine provides convenient material feeding for continuous operation. The drive system delivers 3.3 kW of power with a maximum screw speed of 280 rpm and a torque rating of 113 Nm, enabling reliable and efficient material processing. The machine incorporates 6 independent heating zones for precise temperature management throughout the extrusion process, with a standard operating pressure of 405 bar. With an extrusion height of 1100mm and compact overall dimensions, this extruder is suitable for various production environments. The machine has been well-maintained with only 266 operation hours recorded and is reported to be in good working condition. This equipment represents a quality investment for plastic processing operations requiring reliable monoscrew extrusion capabilities.
  • I would like to know the price of this machine
We are happy to provide you the price, please use the contact form or email us and mention the reference number of this machine.
  • Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
