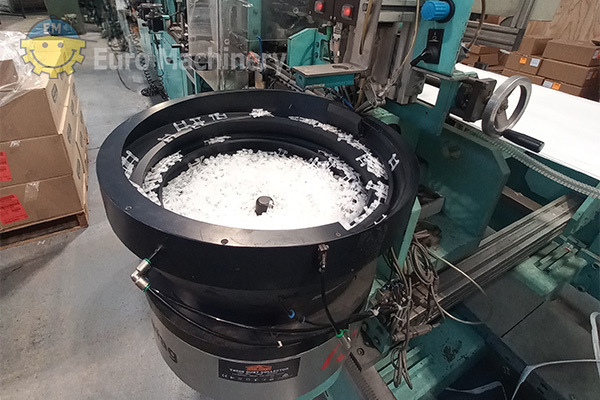

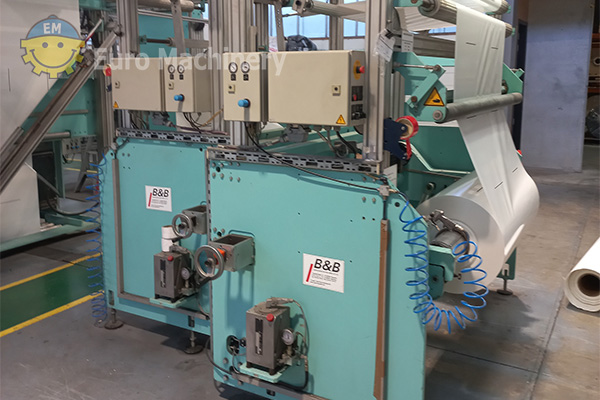

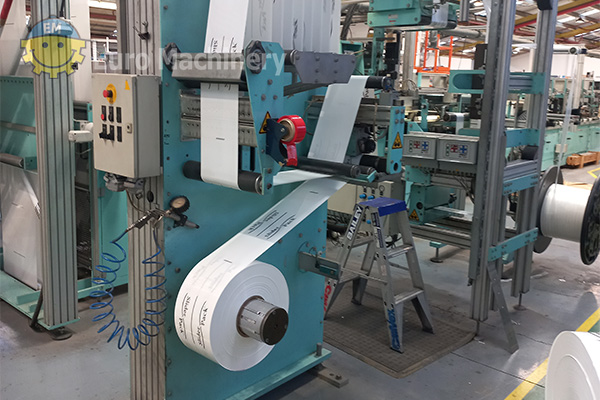

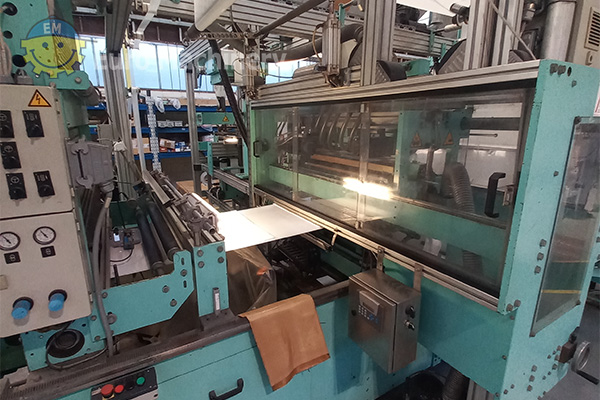

B&B large slider Pouch bag making machine Brand & Model: B&B SFB 8 E – T + S Large Slider Pouch Machine Type: Side gusset bag manufacturing machine with SR 202 Slider Module Type of production: • Side gusset bags with: o Shorter (stopped) or normal length gussets • Top zipper pouches • Top slider pouches using the PACTIV / B&B SR 202 slider module • 3-sided seal pouches, either: o Flat o Side gusseted • Pouches with or without slider closure systems • Pouches with punched features: o Carrying handle o Hanging hole o Rounded corners Special features: The machine can run side gusseted of flat 3-sided seal pouches with or without a slider closure system. Material that can be processed: PE / PET composite 90 – 250 µm Maximum main web roll diameter: 1000 mm Maximum main web roll width: 1600 mm Core / winding shaft diameter: 152 mm Maximum side gusset web roll diameter: 1000 mm Maximum side gusset web roll width: 420 mm Minimum – Maximum bag width: 120 mm – 400 mm / maximum repeat upgraded, increased to 700 mm Minimum – Maximum bag length: 200 mm – 770 mm Minimum – Maximum side gusset (open): 45 mm – 200 mm Maximum pulling speed: 3.0 m / s Maximum performance: approx. 70 cycles / min SR 202: SR 202 Slider Module: • Bag widths: 76 to 508 mm • Slider type: 15 mm long only • Maximum material thickness for end-clip piercing: 2 x 180 µm • The holes must be pre-stamped if working with 4-layers. Driving system: PLC: B & R Servo controllers: LENZE Servo motors: LENZE Optic-electronic sensors: SICK Attachments and accessories: ✓ Standard Unwind 1600 mm ✓ Single Unwind 900 mm ✓ Frame with Film Guidance ✓ Film Web Turning ✓ Draw with Two Dancers ✓ Base Frame 800 mm, 18 m long ✓ Blown Tubing Module ✓ Gusseting Unit ✓ Web Guiders (Top & Bottom Cameras) ✓ Film Joining ✓ Unwind with Dancer ✓ Guide Components ✓ Beam Lifting Unit (4m) ✓ Longitudinal Sealing Station ✓ Seam Cooling + Welding (1000 mm) ✓ Digital Draw ✓ Ink Mushroom Button Station ✓ Beam Lifting Unit (4m) ✓ Cross Sealing Units ✓ Cross Cooling ✓ Puncher for End Clips (4-layer punching) ✓ SR 202 Slider Unit ✓ Clip Sealer ✓ Slider Positioner ✓ Hole Punch for Tear Notch ✓ Cam Puncher (800×160 mm, Round Corners) ✓ Draw Roll ✓ Dancer for Format Length ✓ Longitudinal Trimming ✓ Central Extraction ✓ Vacuum Station ✓ Main Draw with Print Mark Control ✓ Cross Cutter with Draw Blade ✓ Suction Belt ✓ Stack Cassette ✓ Delivery Belt ✓ Ionisation ✓ Micro-Perforation Unit ✓ Double Bottom Hole Cutter ✓ Ventilation Hole Cutter
