Battenfeld 900 8800/105
| Brand | |
|---|---|
| Type of equipment |
Injection Moulding |
| Clamping force |
9000 kN |
| Screw Diameter |
105 mm |
Find similar machines
Battenfeld 900 8800/105

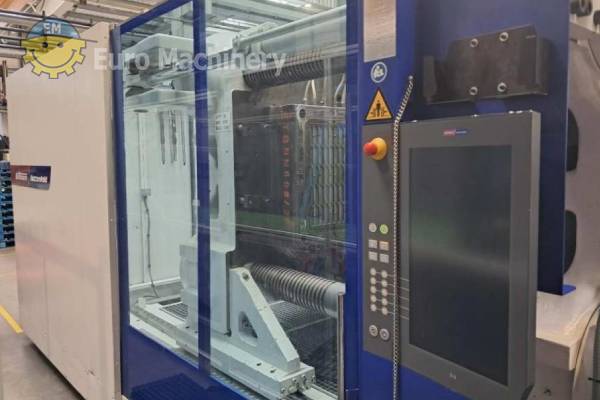

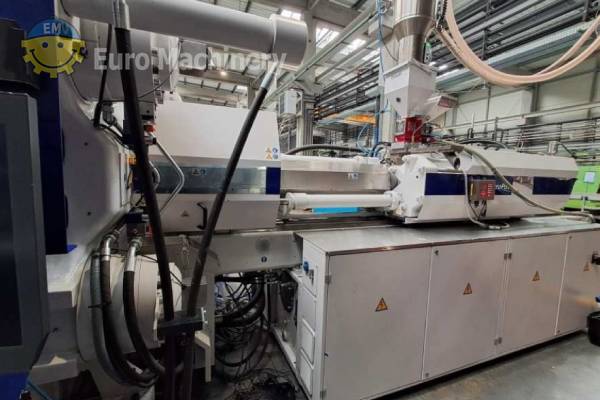

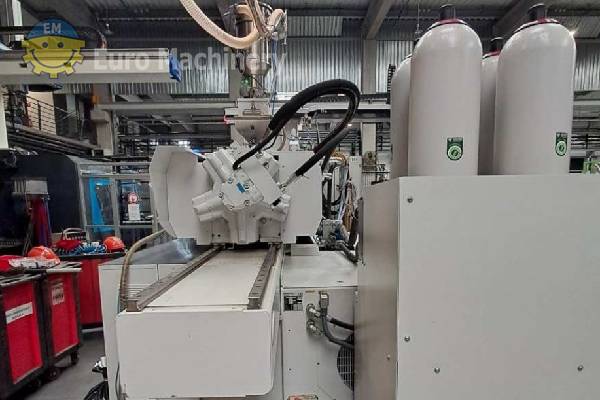

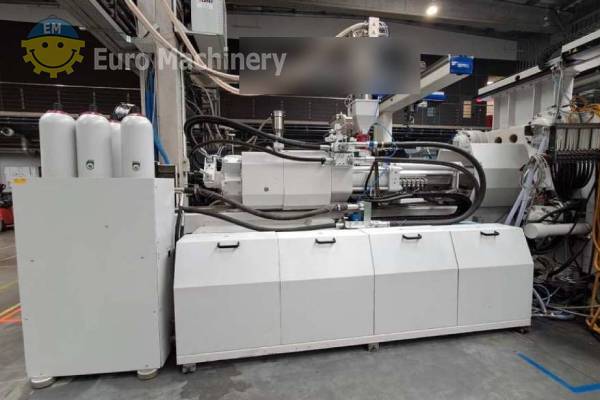

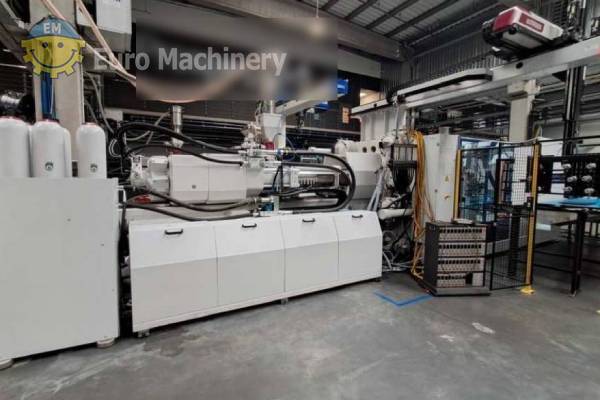

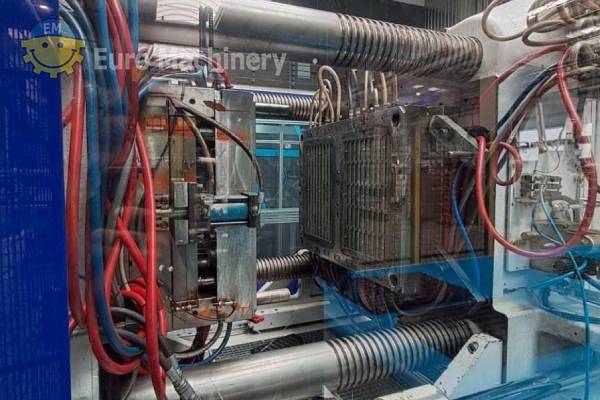

Battenfeld 900 Injection Molding Machine
Battenfeld 900 Injection Molding Machine with control UNILOG B8. This injection moulding machine has a 9000 NM clamping force. Brand & Model: Battenfeld 900 8800/105 Screw diameter: 105 mm Clamping force: 900 tons (9000 kN) Max opening: 1.800 mm Injection volume: 4,545 cm³ Control: UNILOG B8 Additional information:- Installed power: 53.9 kW
- Dry cycle time: 4.0 – 770 sec/mm
- Screw rotation speed: 159 rpm
- Screw L/D ratio: 22
- Nozzle stroke / max force: 129 mm / 950 kN
- Max nozzle travel: 525 mm
- Number of heating zones: 7
- Min / max mould height: 600 mm / 1,200 mm
- Max daylight (between platens): 2,400 mm
- Tie bar spacing (H × V): 1,450 × 1,100 mm
- Ejector stroke / force: 300 mm / 165 kN
- Mould opening force: 300 kN
- Core pulls: 2
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Battenfeld 900 Injection Molding Machine
Battenfeld 900 Injection Molding Machine with control UNILOG B8. This injection moulding machine has a 9000 NM clamping force. Brand & Model: Battenfeld 900 8800/105 Screw diameter: 105 mm Clamping force: 900 tons (9000 kN) Max opening: 1.800 mm Injection volume: 4,545 cm³ Control: UNILOG B8 Additional information:- Installed power: 53.9 kW
- Dry cycle time: 4.0 – 770 sec/mm
- Screw rotation speed: 159 rpm
- Screw L/D ratio: 22
- Nozzle stroke / max force: 129 mm / 950 kN
- Max nozzle travel: 525 mm
- Number of heating zones: 7
- Min / max mould height: 600 mm / 1,200 mm
- Max daylight (between platens): 2,400 mm
- Tie bar spacing (H × V): 1,450 × 1,100 mm
- Ejector stroke / force: 300 mm / 165 kN
- Mould opening force: 300 kN
- Core pulls: 2
