AMUT + WEIMA WASHING LINE

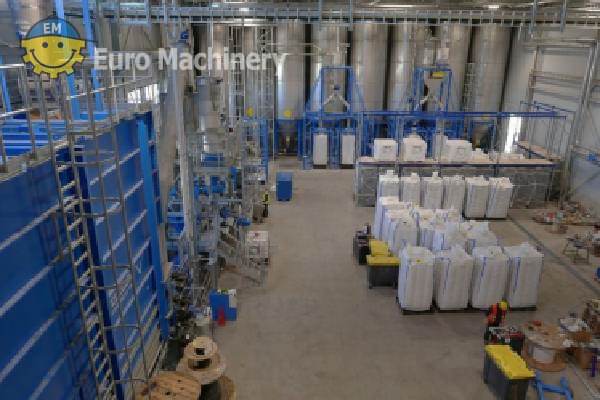

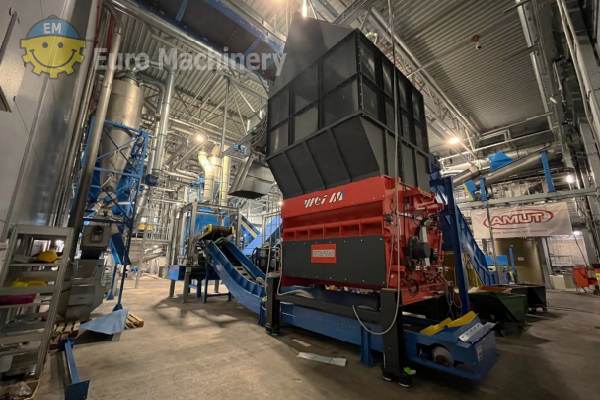

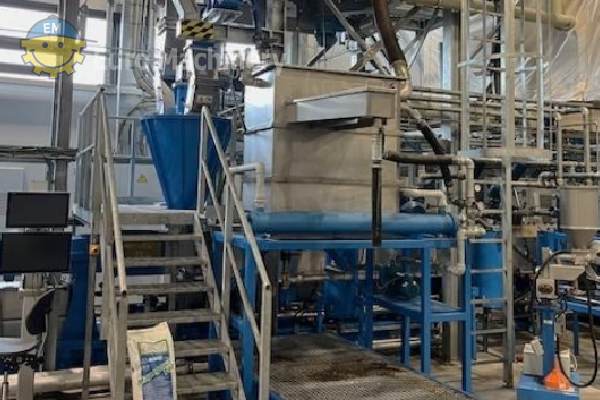

Complete washing plant for municipal waste
AMUT, WEIMA and other machines is a complete washing plant for municipal waste to process rigid and soft plast witn an output up to 5000 kg/h. This plant is consists of washing and extrusion lines designed to operate LDPE, HDPE and PP batchwise Brand & Model: AMUT, WEIMA, ETC Washing line municipal waste Material that can be processed: LDPE (polyetylen – film), HDPE (polyetylen – rigid), PP (polypropylen – rigid). Plastic washing and extrusion plant:- Two washing lines and one extruder line
- The plant is designed to operate LDPE, HDPE and PP batchwise.
- Can run one type of plastic 24/7
- For LDPE the designed throughput of the plant depends on the average thickness of the film.
- LDPE, designed throughput is 1,3 t/h in 2 lines corresponding to 0,65 t/h per line with a film thickness of 25 µm. Film thickness of 40 µm, the designed throughput increases to 2 t/h in 2 lines corresponding to 1 t/h per line.
- For HDPE and PP the plant is designed for a throughput of 4 t/h in 2 lines.
- The designed throughput of the extruder is 1,5 t/h for LDPE and 1,8 t/h for HDPE and PP.
- Maximum consumption of energy – design data:
- Washing line: 0,86 kWh/ kg product for LDPE and 0,3 kWh/kg product for HDPE and PP.
- Extruder: 0,28 kWh/kg product.
- Maximum consumption of fresh water – design data: 2,5 l/kg product for each polymer.
- PE film: 2 x 1.000 kg/h = 2.000 kg/h
- Rigid: 2 x 2.500 kg/h = 5.000 kg/h

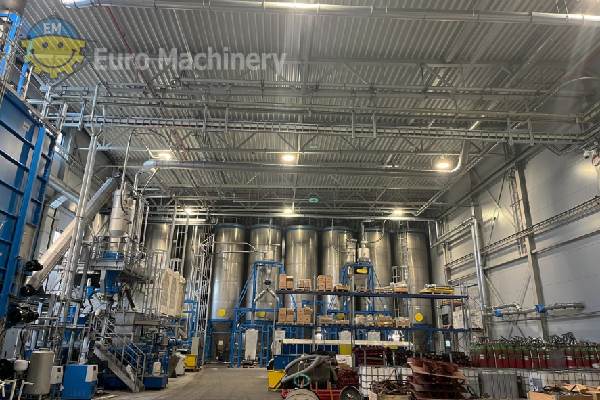

- Mixing Silos: Ariostea MHS SILMI55
- Big bag: Amut Double Big-bag Station INBIG

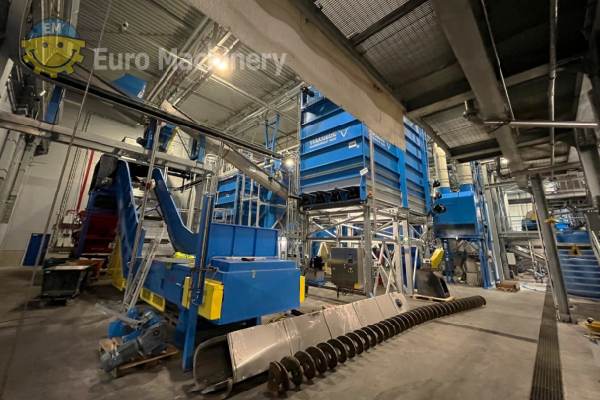

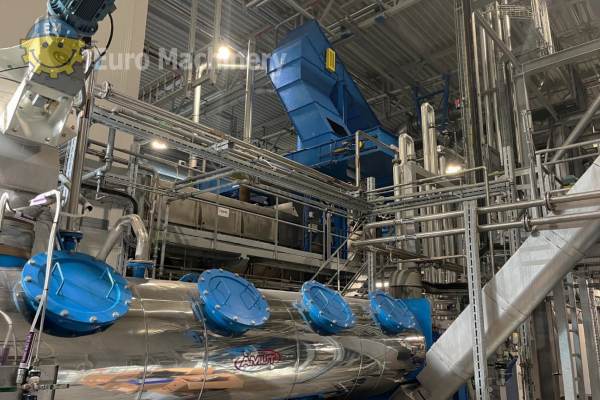

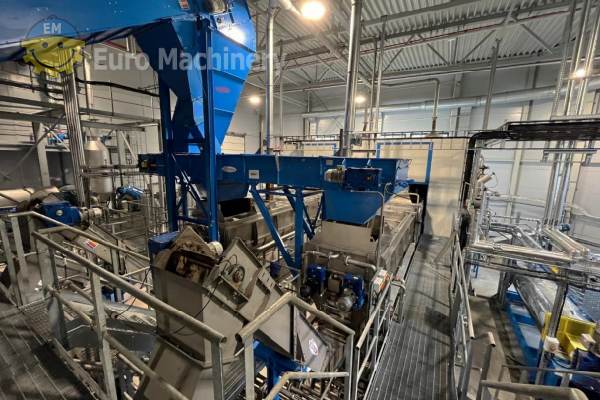

- Washing and drying section

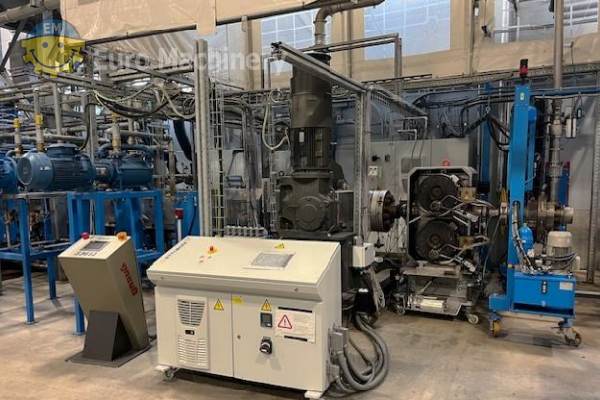

- Extrusion section

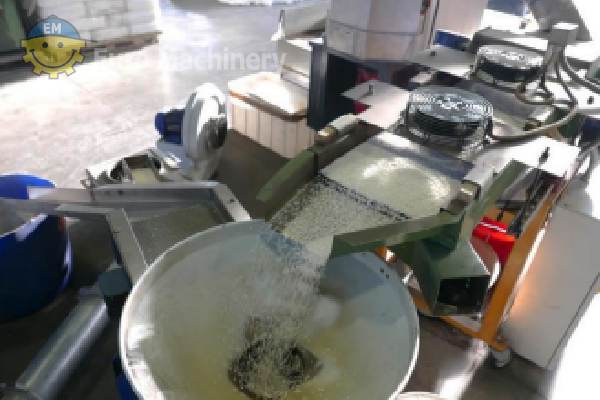

- Extruder including feeder, laser filter. Underwater pelletizer
- Conveying system, blending silos, Weighing system and big bag station
How do I find the price of this machine?
We are happy to provide you the price for the machine you’re interested in via email. Please use the contact form down below or email us at info@euro-machinery.com. Mention the machine reference number and one of our team members will reach out to you shortly.
Where is the machine located?
Most of our machines are located in Europe, but for specific details on this machine please contact us.
How do I buy a machine?
Send us an inquiry on the machine product page via the contact form and one of our sales managers will get in touch with you shortly. If you need help finding the right machine, please send us an email or call – we are happy to help you. Find more information about how to buy used machines down below.
How does transport work?
Transport is a case by case basis and depends on the size and distance a machine should travel. We work together with the buyer and seller to facilitate transport when a machine is being bought. We have many partners for transport and can help find a supplier to suit your needs.
Complete washing plant for municipal waste
AMUT, WEIMA and other machines is a complete washing plant for municipal waste to process rigid and soft plast witn an output up to 5000 kg/h. This plant is consists of washing and extrusion lines designed to operate LDPE, HDPE and PP batchwise Brand & Model: AMUT, WEIMA, ETC Washing line municipal waste Material that can be processed: LDPE (polyetylen – film), HDPE (polyetylen – rigid), PP (polypropylen – rigid). Plastic washing and extrusion plant:- Two washing lines and one extruder line
- The plant is designed to operate LDPE, HDPE and PP batchwise.
- Can run one type of plastic 24/7
- For LDPE the designed throughput of the plant depends on the average thickness of the film.
- LDPE, designed throughput is 1,3 t/h in 2 lines corresponding to 0,65 t/h per line with a film thickness of 25 µm. Film thickness of 40 µm, the designed throughput increases to 2 t/h in 2 lines corresponding to 1 t/h per line.
- For HDPE and PP the plant is designed for a throughput of 4 t/h in 2 lines.
- The designed throughput of the extruder is 1,5 t/h for LDPE and 1,8 t/h for HDPE and PP.
- Maximum consumption of energy – design data:
- Washing line: 0,86 kWh/ kg product for LDPE and 0,3 kWh/kg product for HDPE and PP.
- Extruder: 0,28 kWh/kg product.
- Maximum consumption of fresh water – design data: 2,5 l/kg product for each polymer.
- PE film: 2 x 1.000 kg/h = 2.000 kg/h
- Rigid: 2 x 2.500 kg/h = 5.000 kg/h
- Mixing Silos: Ariostea MHS SILMI55
- Big bag: Amut Double Big-bag Station INBIG
- Washing and drying section
- Extrusion section
- Extruder including feeder, laser filter. Underwater pelletizer
- Conveying system, blending silos, Weighing system and big bag station
