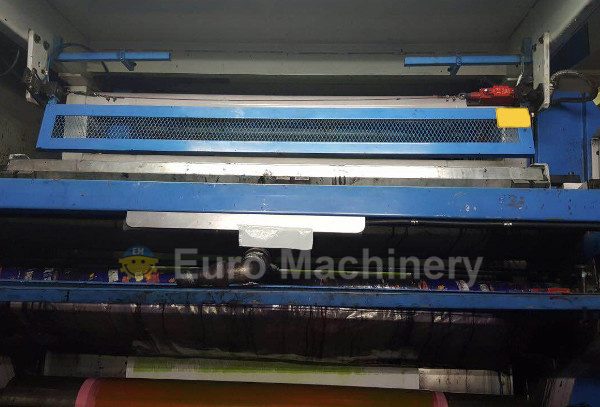

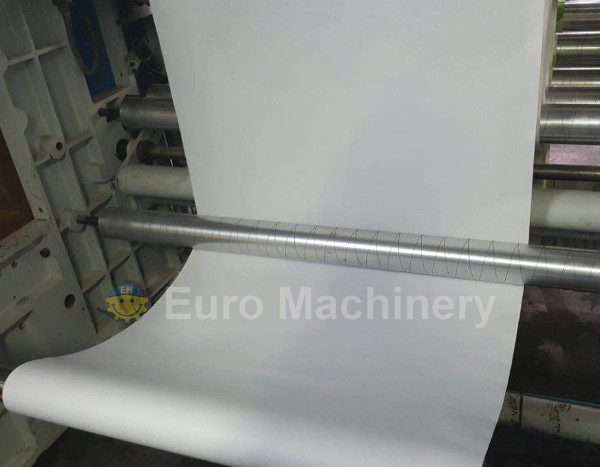

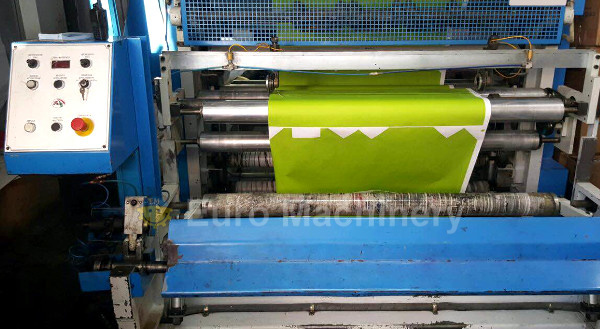

UTECO Coral 6 kolorów – Używana Drukarka Fleksografinczna
Type: UTECO CORAL 675
No. of colors: 6 colors, 6+0
Material to print: PE, PP, OPP, PET, Paper
Printing width: Max 1400 mm
Material width: Max 1450 mm
Print repeat: 300 mm – 800 mm
Mechanical speed: Up to 250 m/min
Out of line type:
Winder:
Outside diameter of reels: 800mm
Expansible air shaft with rubber lathes
Automatic stop at the break of the film
Unwinder TYPE BU-1 800
Diameter of the reel: 800mm
Structure of the cast iron frames G22, thickness 60mm
Automatic stop at the break of the film
Expansible air shafts, with expansible rubber lathes
Pneumatic dancing roller for the control of the tension
Pumps: 3x Electrical pumps
Drying system: Oil drying
2x drying sections: one inter color and one for the tunnel
Drying tunnel ( length: 3 m)
2x fans
1x electric batteries
Other information: PRINTING GROUP
The press main frames are integral cast-iron (thickness 80mm)
Central drum of outside diameter 1250mm
Stop through the pneumatic brake
Manual side register
Motorized longitudinal register
WEB OUT-FEED UNIT
Video type Super Handy Scan
OUT-FEED UNIT
2x iron chromium-plated chill roll having diameter
SLEEVE AIR MANDRELS
3x sleeve air madrels, o.d. 82.877 mm
PRINTING PLATE CYLINDERS
4x printing plate cylinders, repeat 300mm
4x printing plate cylinders, repeat 330mm
2x printing plate cylinders, repeat 380mm
2x printing plate cylinders, repeat 540mm
18x printing plate cylinders ( 6x repeat 40cm, 6x repeat 50cm, 6x repeat 60cm)
PRINTING PLATE SLEEVES
3x printing plate sleeves, repeat 300mm
3x printing plate sleeves, repeat 330mm
1x rubber sleeve for solid print, repeat 380mm
CERAMIC ANILOX ROLLERS
1x ceramic anilox roller 100 Linee/cm
2x ceramic anilox roller 80 Linee/cm
3x ceramic anilox roller 140 Linee/cm
2x ceramic anilox rollers 200Linee/cm
Accessories:
2x electric hoists ( max load 400 kg)
1x thermoregulating unit COREMA TM/WP-412/0/500 SS
Air shafts 3” and 6” for unwinder and rewinder
Slitting unit for film to be installed on the rewinder
Condition: In good working condition. Can be seen in production.
