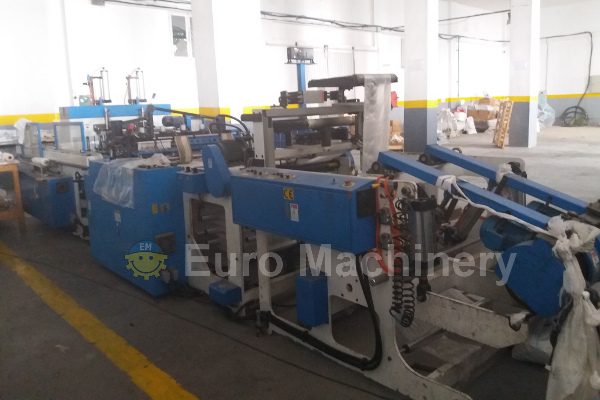

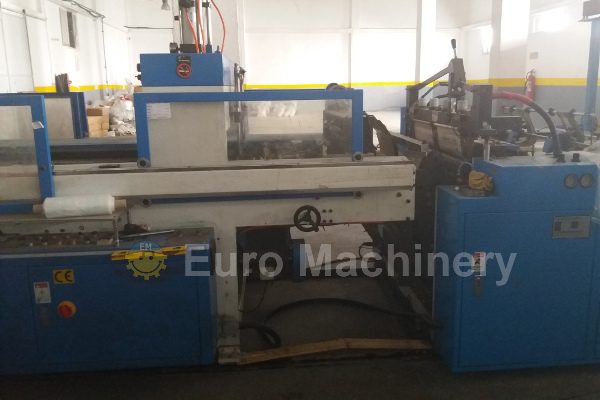

LUNG MENG TPA800GP Super high speed – Saldatrice per sacchetti shopper usata
Bag Making Machine:
Type: Bottom seal bag making machine for carrier bags (T-Shirt bags).
Type of production: Bottom seal bags T-Shirt
Material that can be processed: LDPE, HDPE, LLDPE
Sealing width (bag width): Up to 330 mm
Drawn Lenght: 700 mm
Number of lines: 2
Max Speed: Up to 300 rpm x 2
Driving system:
✓ Operator interface terminal
✓ Servo motor driven
Attachments and Accessories:
✓ Heavy duty lifting unwinder
✓ Gusseting station
✓ Slit-seal
✓ Stacking/ index table
✓ Photocell for printed film
✓ Web guide unit
✓ Extra die cutter for T-shirt bag
✓ Calendar device

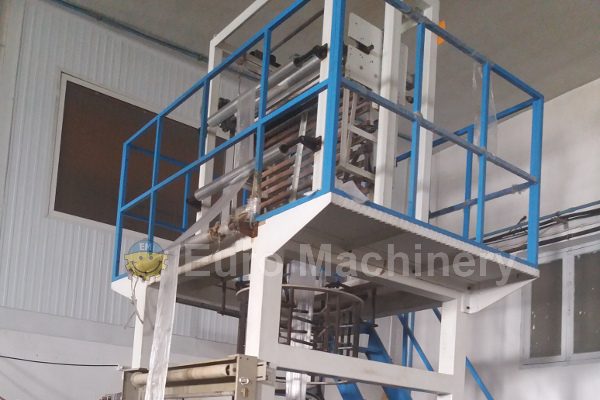

Extrusion Line – Mono Layer:
Type: LUNG MENG LM-EB55T
Material that can be processed: LDPE/HDPE/LLDPE/MDPE/EVA
Extruders: Screw Ø:55 mm
Head: Blown film die head HDPE. Die diameter 10 mm & 80 mm insert die lip
Material Thickness: 0.008 up to 0.007mm for HDPE & 0.012 up to 0.2 mm for LDPE
Take Off: Take Off 1000 mm wide
Accessories:
• Air ring
• Air cooling blower
• Calibration basket Iris wire type
• Winder max width 950mm and roll diam. 750mm
• Corona treater
• Manual double screen change
Printing Line:
Manufacturer: Lung Meng
Model: FP-2060
No. of colors: 2 colors (2+0, 1+1)
Material to print: Paper, PE, PP
Printing width: 560 mm
Material width: 600 mm
Print repeat: 240 mm – 1000 mm
Mechanical speed: Up to 85 m/min
Unwinder: Max roll diam.: Ø 600 mm
Lining clutch device: 2 sets
Diam. Mandrel: 76
Rewinder: Max roll diam.: Ø 600 mm
Diam. Mandrel: 76
Pumps: 2
Drying system: Drying blower
Other information:
• Edge position control
Condition: In good working condition. Can be seen in production.
