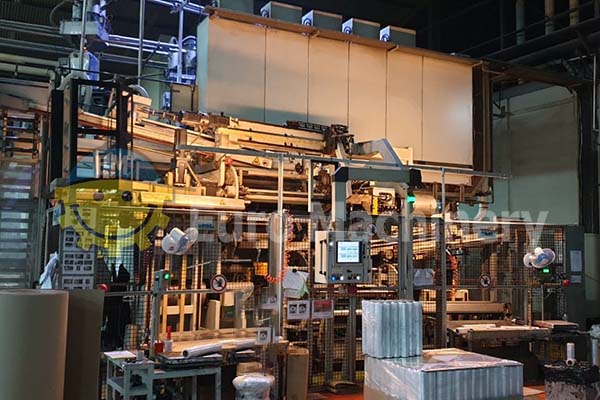

SML 5 layer Cast Film Line
SML 5 multi layer Cast Film Line for stretch film. The machine comes with great accessories.
Manufacture & model: SML 5 layer 2000mm -Eco Compact 4up
Materials to be processed: Stretch Film – LDPE, LLDPE

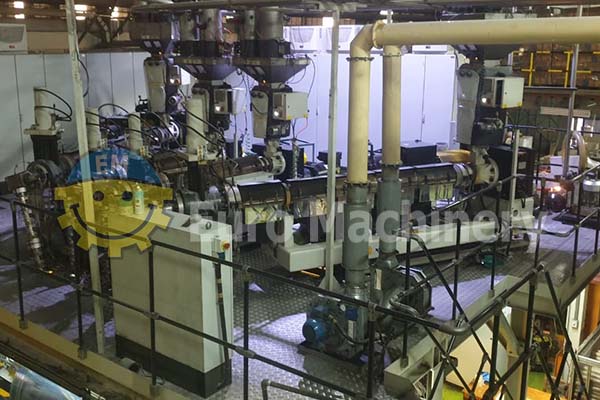

Extruders:
- Layer distribution from extruder A/B/C/B/D
- Extruder A 60 mm – 190 kg/h
- Extruder B 90 mm – 600 kg/h,
- Extruder C 90 mm – 600 kg/h
- Extruder D 60 mm – 190 kg/h
Die:
- Flat die type Cloeren EPOCH III
- Feedbblock Cloeren
- Lips width: 2550mm
- Casting section 1000/400
- Lip gaps adjustable: 0 mm –1.5 mm
- Heating: 18 zones
Output: Up to 1500kg/hour depending on material formulation

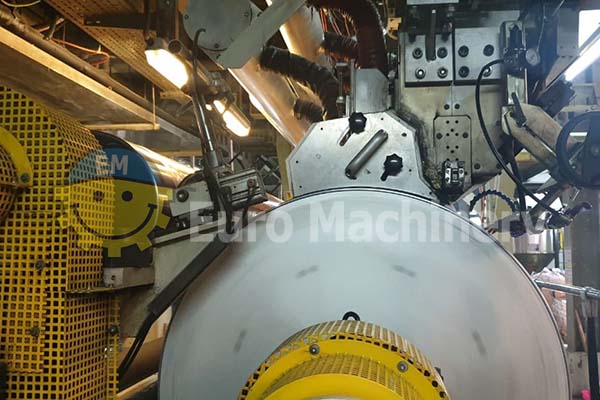

Chill-roller:
- 2700mm wide
- Primary chill roll diameter – 1000 mm
- Secondary chill roll diameter – 400 mm

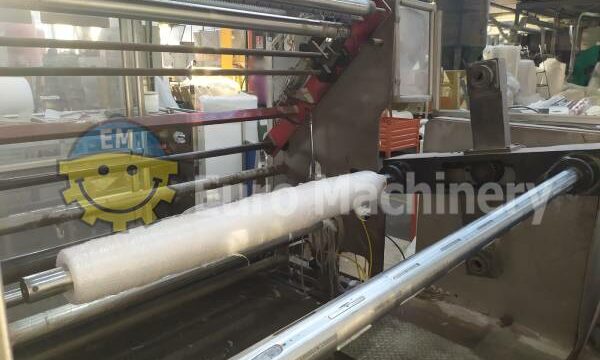

Winder
- Winder, Double Turret Winder type W4000
- Maximum line speed 650m/min
- Reels diameter up to 400mmof 3” cores
- Reels diameter up to 400mmof 3” cores
Accessories
- Chiller by Euro chiller
- Edge trim cutting system
- Edge trim recycling system
- Many more – Please contact us for a full list
The SML 5 multi layer Cast Film Line is in great condition and can be seen in production!
