Roll-O-Matic DELTA 860 T

Sealing width: 860 mm
Max finished roll diam.: 250 mm
Number of lanes: 2


Plastic bag making machine

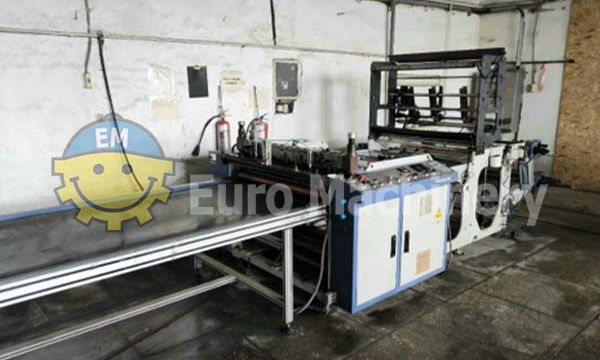

Secondhand bag on roll machine for T-Shirt bags and sealing width up to 860 mm. Machine works also with biodegradable and recycled extracts
The machine is in good working condition.

Brand & Model: Roll-O-Matic DELTA 860 T

Type: Bag making machine for bags on roll w/wo paper core

Type of production:

  • Bottom seal bags on roll
  • T-Shirt bags on roll
  • Garbage bags
  • Bags for fruit and vegetable
  • Different type of bags on roll
  • Bags with or without gussets
  • Bags on roll with paper core

Material to be processed: LDPE, HDPE, MDPE, LLDPE, Biodegradable and recycled extracts

Roll change/min: Up to 20 (20 x 2 rolls)

Sealing width: 860 mm

Max finished roll diameter: 250 mm

Max finished roll width: 2 x 305 mm / 1 x 620mm

Draw length (bag length): From 200 to 1900 mm

Number of lanes: 2

Linear speed: Up to 160 m/min

Bags per min.: Up to 300 Cpm

Driving system:

  • PLC controlled

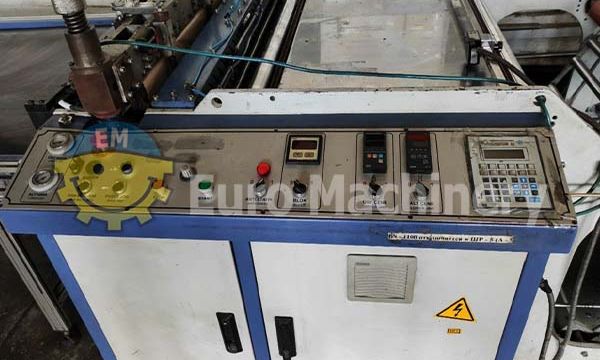

  • Operator interface terminal
  • Servo motor driven

➢ input nip rollers
➢ sealing bar

Plastic bag making machine – accessories:

  • Surface driven unwinder 1200mm wide
  • Heated Slit-seal unit
  • Paper-core magazine
  • Gusseting station
  • V-folding unit
  • T-shirt punching unit
  • and other. Contact us for the full list.

Secondhand bag on roll machine available for sale. Schedule an inspection and see the machine working.
