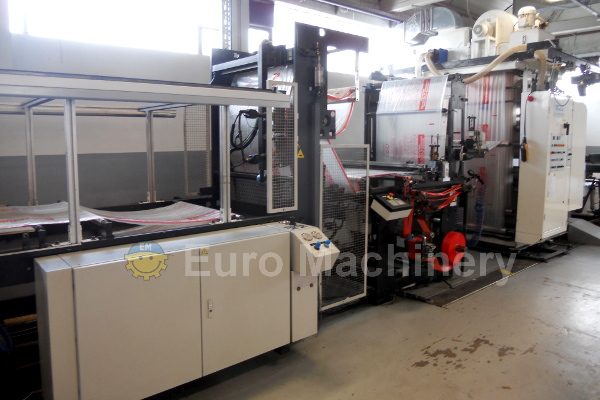

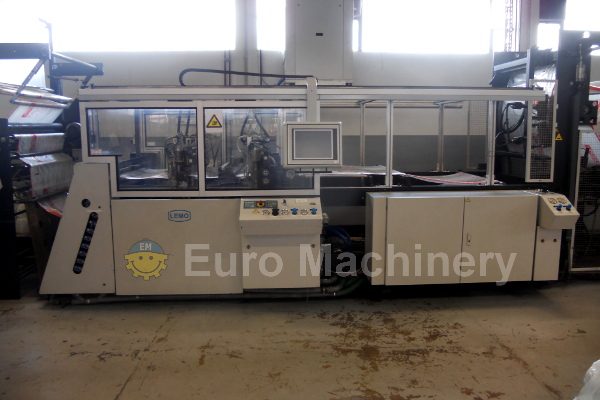

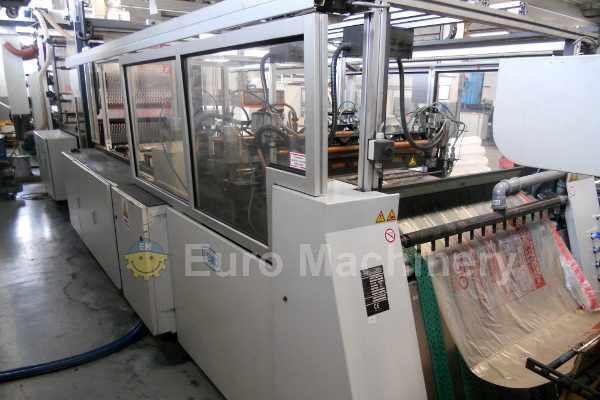

LEMO 1100 Draw Tape – Used Roll Bag Machine
Type of production: Bottom seal bags on roll
- Garbage bags
- Bags for fruit and vegetable
- Different type of bags on roll
- Dog “s” bags
- Bags on roll without paper core
- Side seal Draw Tape bags on roll
- Bottom seal bags on roll
Material that can be processed: LDPE, HDPE, MDPE; LLDPE and recycled extracts
Roll change/min: Up to 25
Sealing width: Up to 1100 mm
Max finished roll diameter: 150 mm
Max finished roll width: 500mm
Draw length (bag length):
- From 200 to 2500 mm for standard bags
- From 200 to 1100 mm for draw tape bags
Number of lines: 1
Number of sealing bars: 2
Linear speed: Up to 150 m/min
Bags per min.: Up to 250 cpm
Driving system:
- PLC controlled
- Operator interface terminal
- Print registration control
- Servo motor driven
Attachments and Accessories:
- Driven un-winder
- Web guide
- Draw tape insertion section
- Sealing machine
- Photocell for printed film
- Anti-static bars
Condition: In good working condition. Can be seen in production.
