Recycling machine for plastic

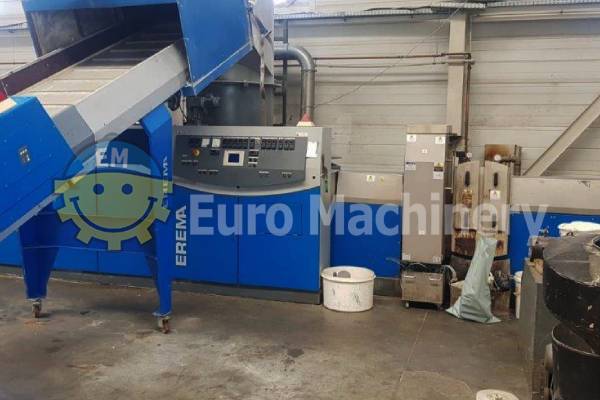

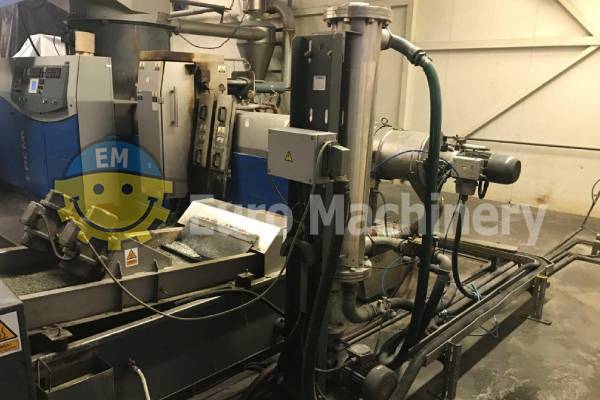

Used EREMA in great working condition. Double degassing, extruder combination with up to 600 kg/h. The machine can be seen in production.
Brand & Model: EREMA PC 1310 TVE
Material that can be processed: PE, PP, LDPE, HDPE
Screw diameter: 100 mm
L/D ratio: 46.15 L/D
Output: Up to 600 kg/h, depending on the type of material and feeding rate.
Degassing: Double
Screen changer before degassing: Backflush double piston screen changer SW/RTF with fully automatic self-cleaning system.
Material feeding system: Conveyor belt with metal detector
Extruder hopper type: Agglomerator/Cutter Compactor – Extruder combination
Used EREMA | Pelletising system:
- Hot die face cutting granulator HG
- Pellet dewatering screen GS
- Pellet centrifugal screen GZ
Power:
- Voltage: 3 x 400V + N + Pe
- Installed power: 342 kW
Further information:
- Extruder motor: 132 kW
- Cutter-compactor motor: 110 kW
Used EREMA | Attachments and accessories:
- Heat exchanger
- Extraction blower
- Cyclone
- Vacuum pump
- Big bag loading station
- Feeding silo
- Degassing water circulating system
- Agglomerator Dust removal system
Recycling machine for plastic can be seen in production.
