Rollenschneider

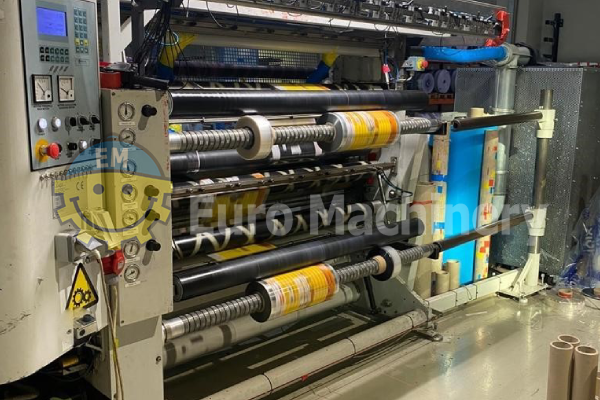

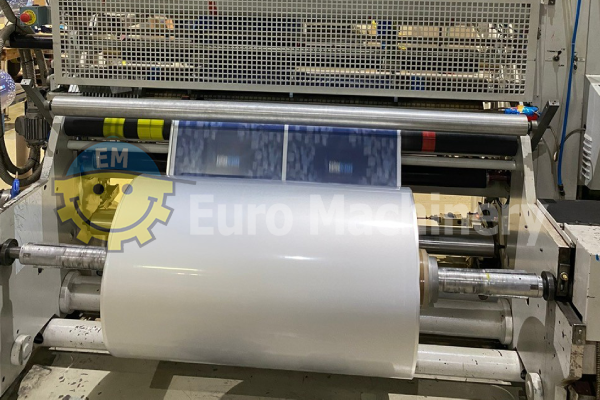

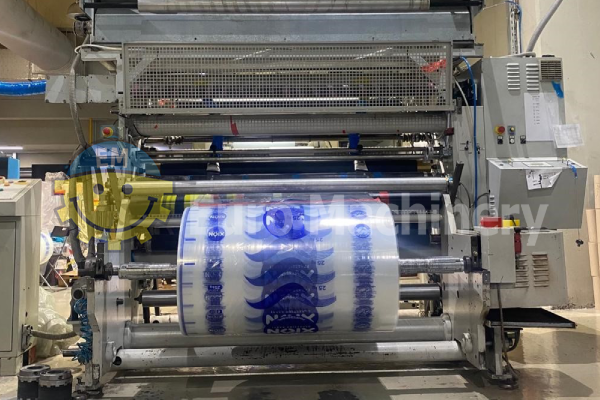

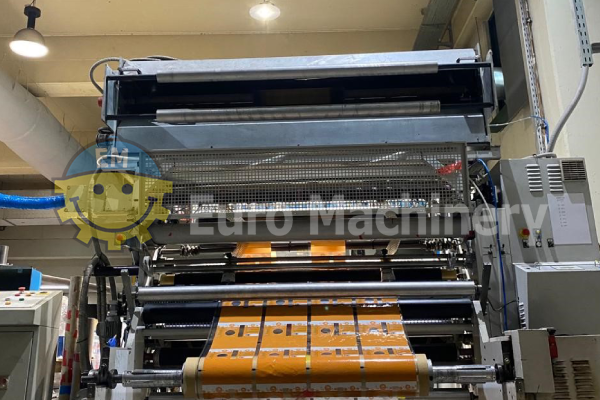

Used slitter rewinder for sale, able to cut different materials like PE, PP, PET, ALU, PAPER and working width of 1600 mm.
Brand & Model: SAGE TB6/SB MOD 160
Material to cut: PE, PP, PET, ALU, PAPER
Cutting type (razor/rotary): 26 Razor blades + 11 Circular knives
Working width: 1600 mm
Slitting width: Min 25 mm
Unwinder:
- Type of unwinder: Pneumatic Shaft
- Max roll diameter: 1000mm
- Max roll width: 1600 mm
Winder: Max roll diameter: 610mm
Max working speed: 400m/min
Paper core diameter(s): 76mm diameter + adaptors with diameter 152mm (Svecom)
Slitter rewinder machine – accessories:
- Photocell: edge guide sensor in the unwinder
- Banana roller
- Lasers for the core positioning in the winding unit: 25
- Trim blower for the edge trimming: KONGSKILDE 5.5KW
- Hot perforation FBF
The slitting and rewinding machine SAGE is in great working condition and can be seen working. Contact us to schedule an inspection.
