Maschine zur die verpackung von verschiedener Produkte in Beuteln
This bagging machine makes the bag automatically and moves it to the feeding station. Where it is picked up from the feeding station, then the product is inserted into the bag that is moved to the following sealing station for final sealing.
The machine is very compact the X1 can be fed manually, automatically or directly connected with any production lines.
By using centre folded PE or PP film in reel, the X1 makes automatically the bag and moves it to the feeding station Picked up from the feeding station, the product is inserted into the bag that is then moved to the following sealing station for the final sealing.
The bag’s waste is removed by suction and the final pack is automatically ejected from the machine. Alloy sealing bars at constant temperature protected by a non-sticky material.
Belt for the bag’s transport driven by servo motor. Transversal sealer making the bag and separating it from the film.
Film unwinding system driven by servo motor. PLC control unit.
This unit produces bag sizes width 50-200mm, length 100-390mm using low density polyethylene film from centre-folded format.
Please contact us for more information. We will be happy to show you how this bag machine works.

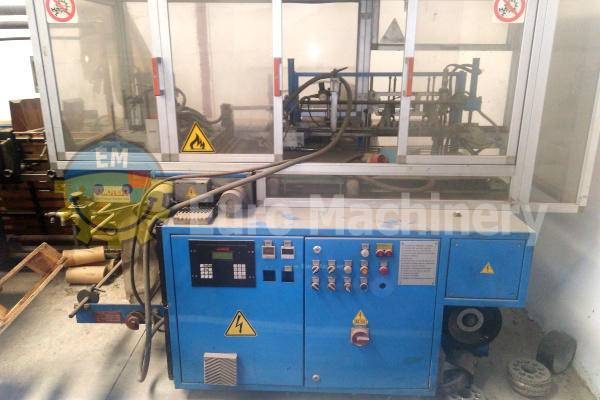

Model: AMOTEK X1-DX
Materials: PE or PP film in real.
Speed: 20-30 cycles per min.
Die Maschine ist in gutem Zustand.
